004_verilog-a_res : Verilog-A simple Resistor Chain
Requires: SmartSpice & Smartview
Minimum Versions: SmartSpice 4.6.8.R
This example shows how to use multiple Verilog-A modules in a simulation and to reference parameters of the module from the input deck.
This input deck consists of an sinewave source into a chain of 3 verilog-A resistor modules in series and then terminated by a spice element resistor and capacitor in parallel to ground. Internal resistance of the verilog-A module res_1 , res_2 and res_3 is set by the YVLG instance parameter that matches the parameter used in the verilog-A module (parameter 'R').

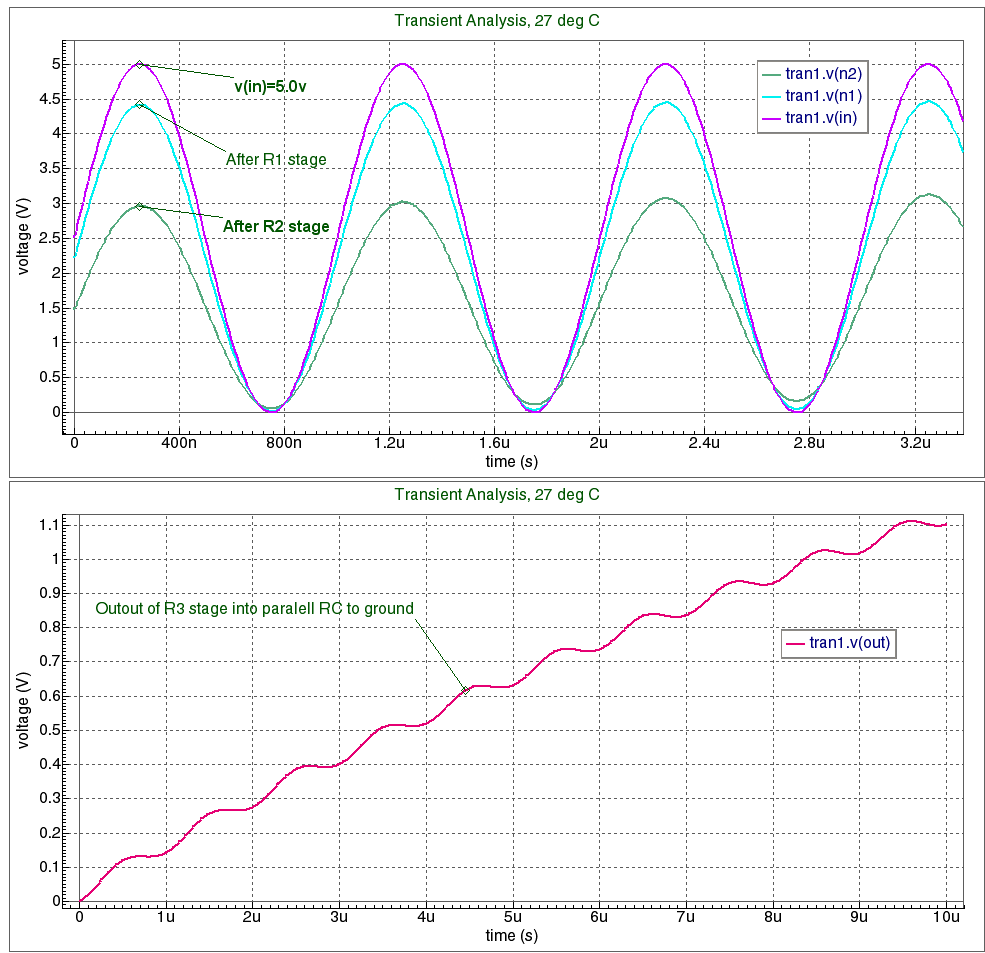

The output waveform shows the signal after each stage and finally charging the RC load components.
Input Files
resistor_1.va
//Resistor
`include "discipline.h"
`include "constants.h"
module res_1(n1, n2);
inout n1, n2;
electrical n1, n2;
parameter real R = 100.0;
analog begin
// $debug("Res_1=%f\n", R);
I(n1, n2) <+ V(n1, n2)/R;
end
endmodule
resistor_2.va
//Resistor
`include "discipline.h"
`include "constants.h"
module res_2(n1, n2);
inout n1, n2;
electrical n1, n2;
parameter real R = 100.0;
analog
I(n1, n2) <+ V(n1, n2)/R;
endmodule
resistor_3.va
//Resistor
`include "discipline.h"
`include "constants.h"
module res_3(n1, n2);
inout n1, n2;
electrical n1, n2;
parameter real R = 100.0;
analog
I(n1, n2) <+ V(n1, n2)/R;
endmodule
resistor_chain.in
** 3 Resistor chain test case .option nomod nodeck .param r1=20 r2=50 r3=100 .ic v(out)=0 .hdl "resistor_1.va" .hdl "resistor_2.va" .hdl "resistor_3.va" *v01 vcc 0 dc 5 *v02 in 0 pulse(0 5 1u 1n 1n 1u 2u) V1 in 0 sin( 2.5 2.5 1meg) C1 out 0 0.1u R1 out 0 100k * YVLG_res_1 in n1 res_1 R='r1' YVLG_res_2 n1 n2 res_2 R='r2' YVLG_res_3 n2 out res_3 R='r3' .tran 1n 10u **.iplot v(in) **+ 'v(out)+10' .probe all .end
Graphics
