003_complex_sources : Modulated sources as single element in circuit.
Requires: SmartSpice & Smartview
Minimum Versions: SmartSpice 3.16.12.R
This input deck shows you how to produce a single element Frequency Modulated Source waveform .
Input Files
Vsource_FM.in
* Frequency Modulated Source element .option nomod nodeck accurate .param fm =200k V1 1 0 sffm(1 1 2k 10 FM ) R1 1 0 100k .tran .02u 800u ;sweep fm 5k 20k 5k .save all(v) .end

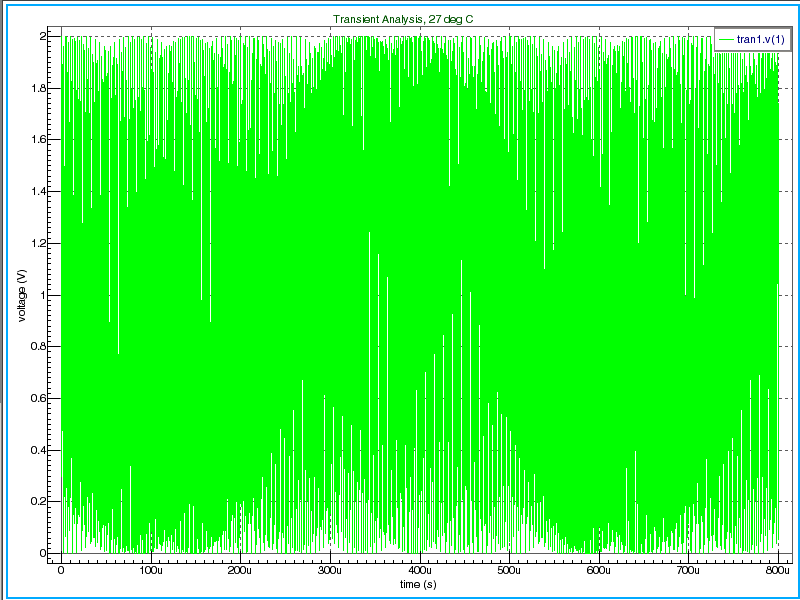

Graphics
