vwfex07 : SPICE corner analysis


This is a comparator circuit where a transition occurs when an input sine wave crosses an input voltage. Splits are defined on VDD, temperature, load capacitance and SPICE models (typical, slow and fast) for corner analysis.

To open and run this example, select the Help Load example button in the VWF explorer. This will import all examples into your database. Once imported, the examples will be available under the directory called examples.

Additional Info:

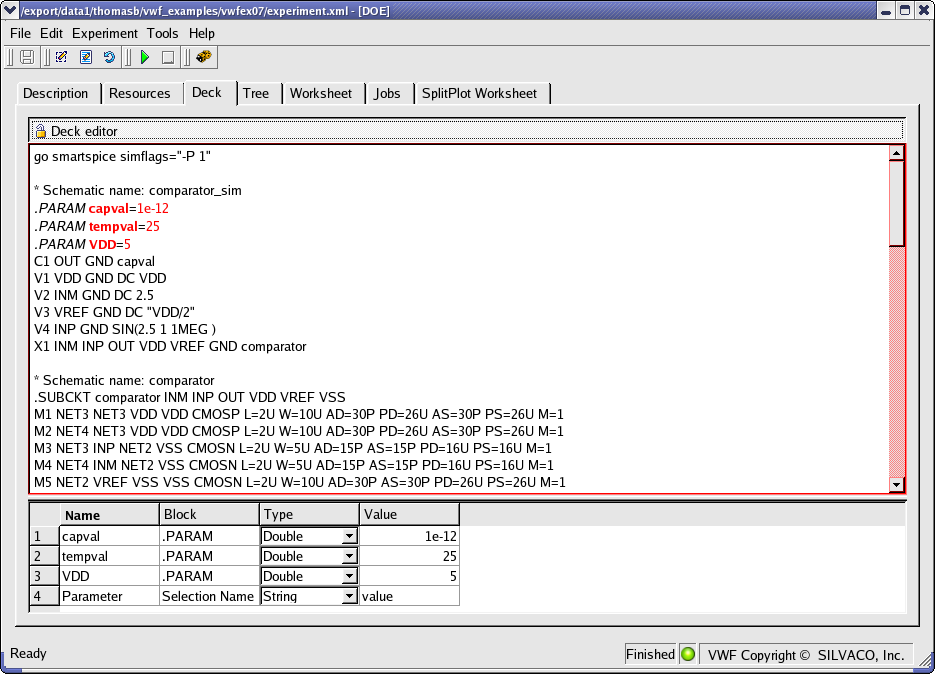

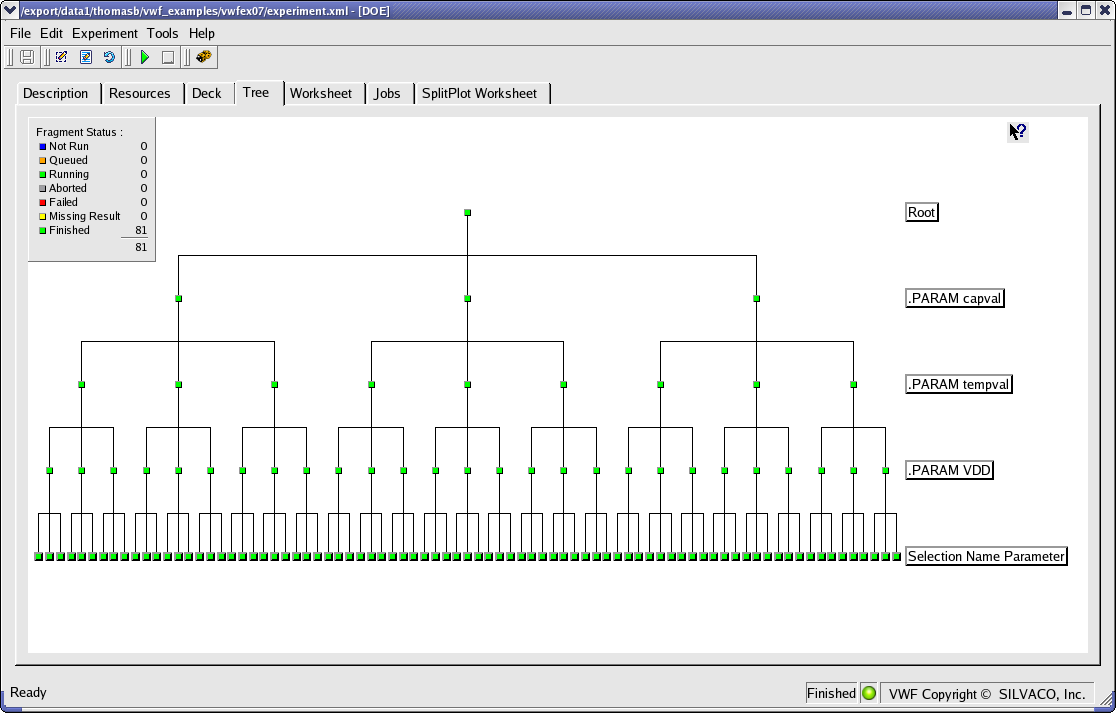

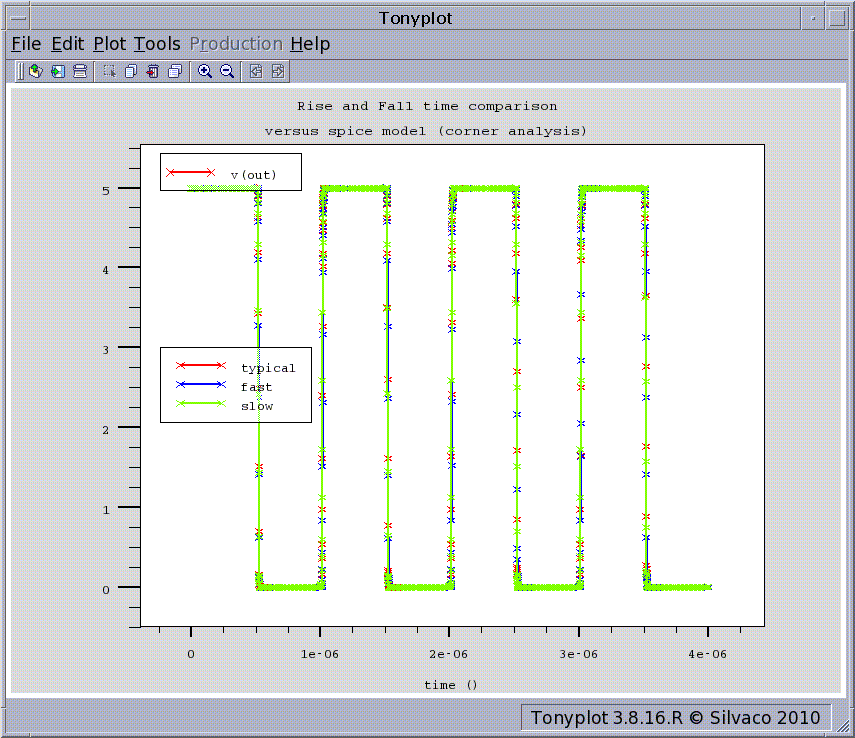

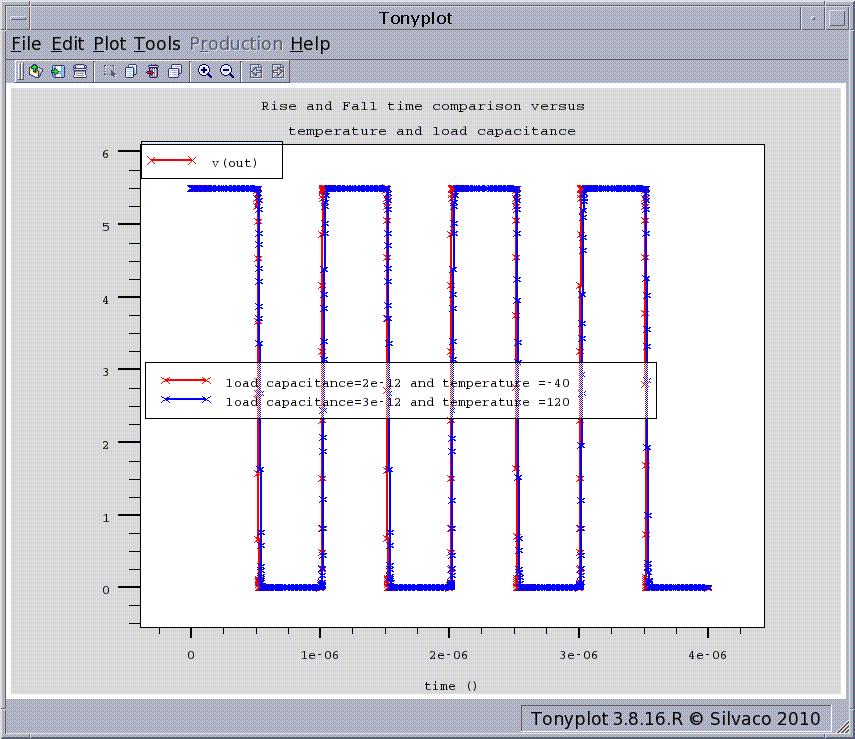

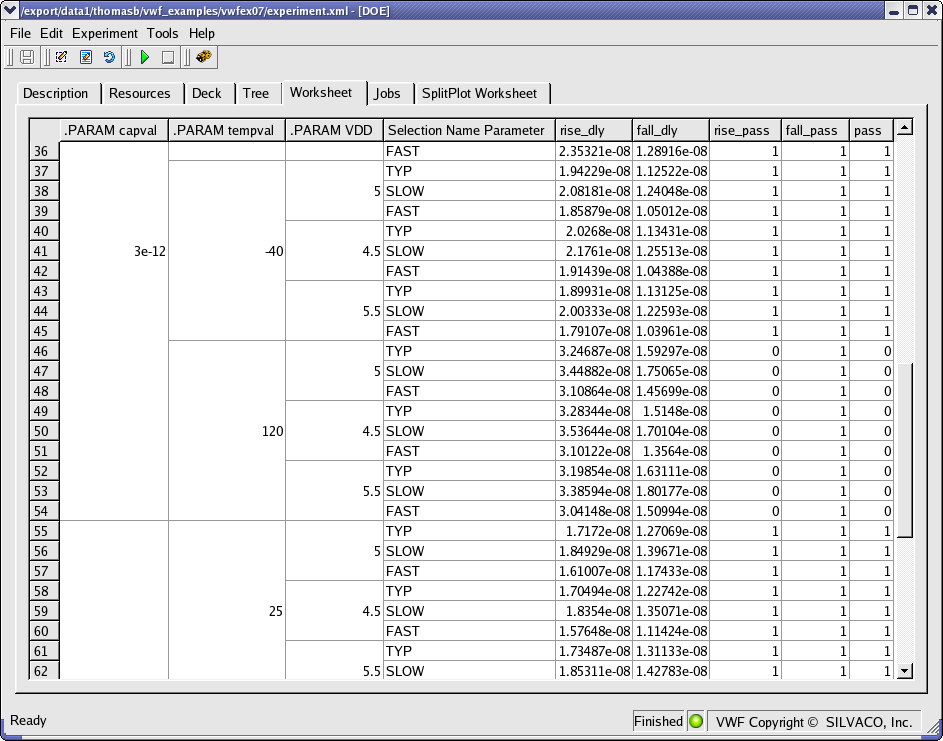

Screen Shots
