    VWF Examples

vwfex05 : Inductance Response Surface Model (RSM)

Requires: VWF, QUEST

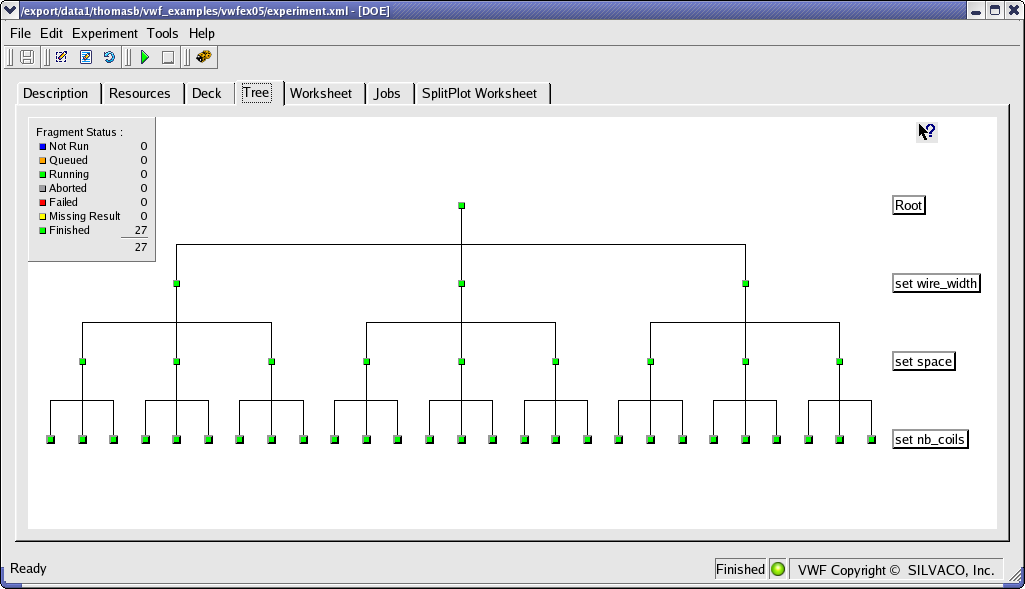

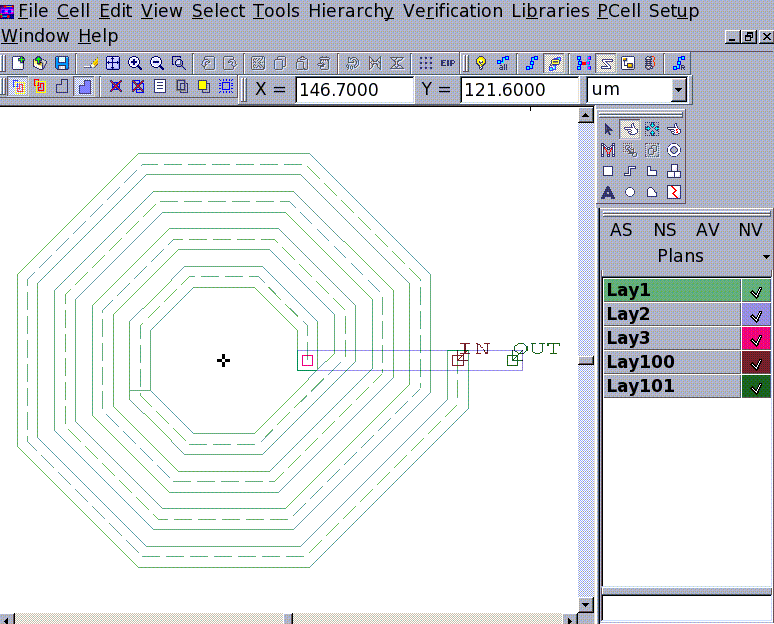

This example uses an Expert LISA script in QUEST to generate a parametrized gds layout. In order to build an inductance model, or simply make a variation of layout parameters, it is useful to have a parametrized gds. This is made possible in QUEST by using the EXPERT layout editor's script language. In this example, 3 layout variables are defined: number of coils, wire width, and space. Inductor performance is monitored using the extract capability DeckBuild.

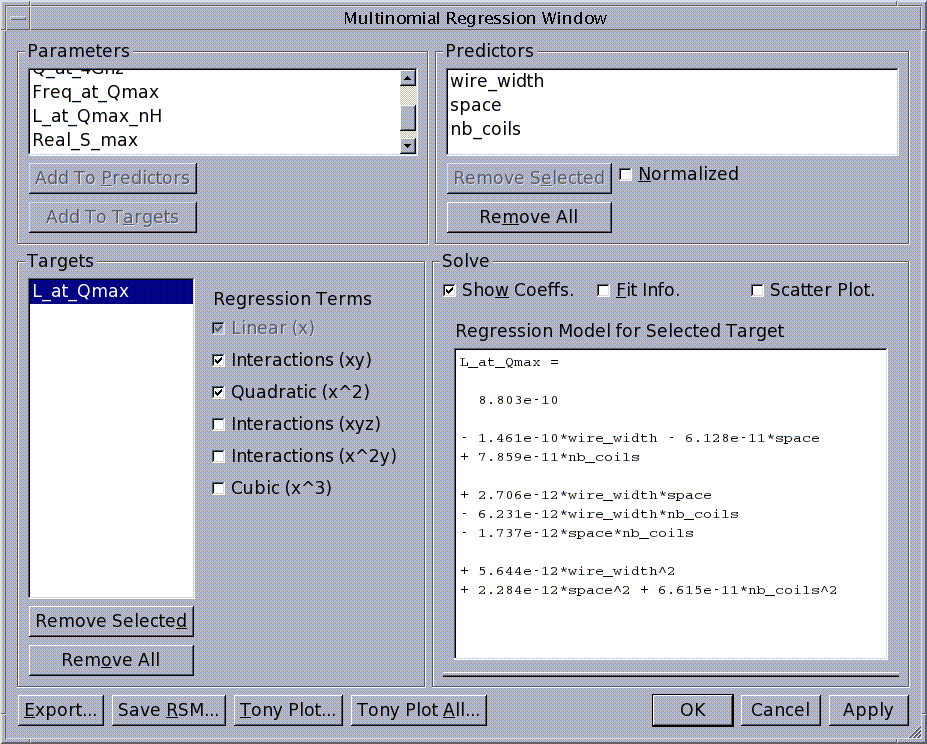

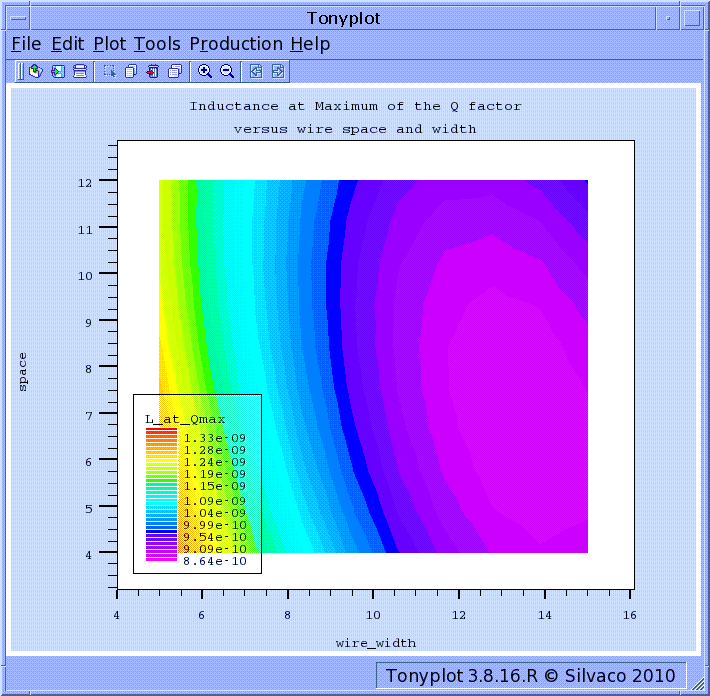

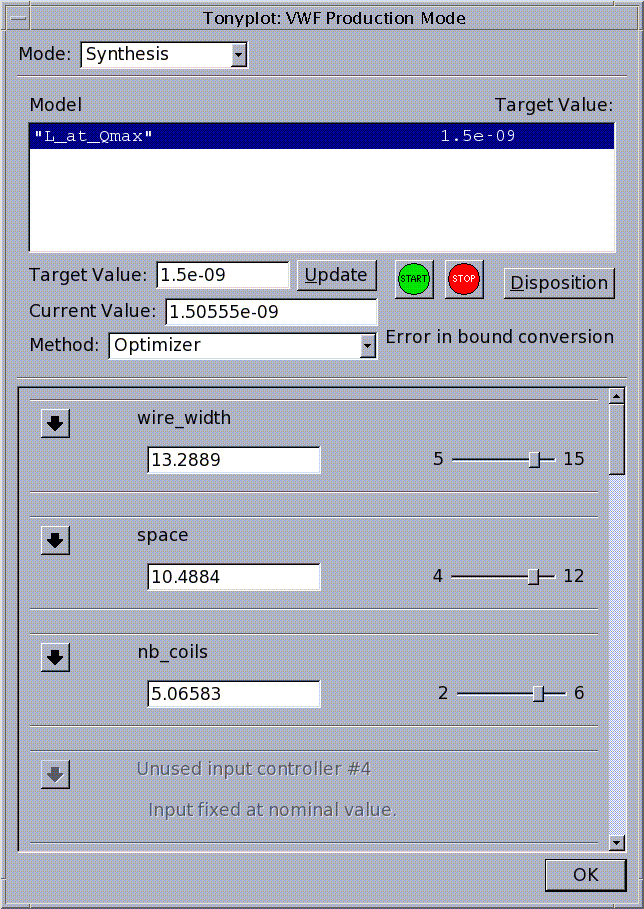

The results from the worksheet are loaded in SPAYN, and a Response Surface Model (RSM) of L as a function of the 3 layout variables is performed and used for synthesis.

To open and run this example, select the Help Load example button in the VWF explorer. This will import all examples into your database. Once imported, the examples will be available under the directory called examples.

Screen Shots
