vwfex13 : Defining DEVEDIT Splits in VWF

Requires: VWF, DEVEDIT

This example demonstrates how to define DEVEDIT splits in VWF. This example is based on a GaAS-AlGaAs-InGaAs PHEMT where splits on doping were defined.There is actually no distinction between a process, device or devedit parameter in VWF.

To open and run this example, select the Help Load example button in the VWF explorer. This will import all examples into your database. Once imported, the examples will be available under the directory called examples.

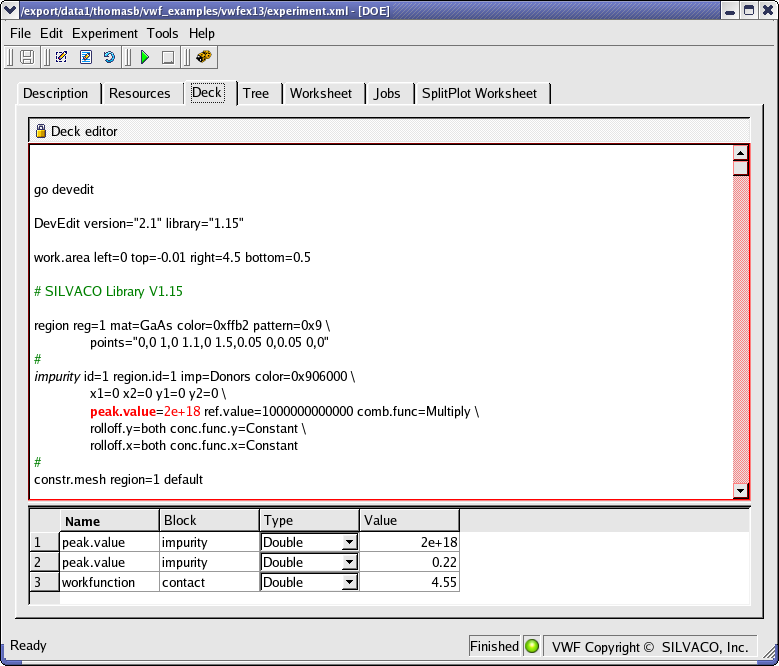

Screen Shots
