script_ex04 : Create binned models from point model cards
Requires: Utmost IV
Minimum Versions: Utmost IV 1.10.6.R
This example describes how to create BSIM4 binned models given a bunch of point model cards.

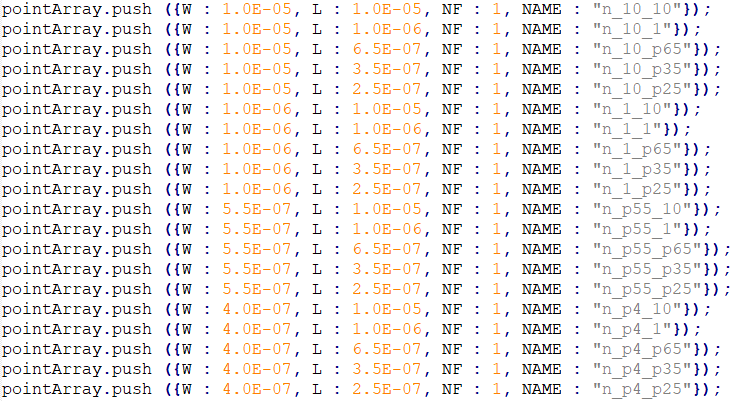

The point model cards used for this example are stored in the script_ex04_point_models.lfile. They are BSIM4 (Level 54 MOSFET) model cards, which have been individually extracted to fit a specific geometry (i.e., WxL) MOSFET device. The correspondence between the model card name and its specific geometry is entered using a Javascript array of specially formatted objects, as shown in script_ex04.png .
The script loops through the list of geometries trying to identify adjacent geometry devices. When 4 such devices have been found, the script creates a binned model. This is a single model card that covers the 4 WxL geometries ("corners of the bin") and all the possible WxL combinations inside the "bin". The loop continues until all possible bin models have been created.
The Utmost IV script is shown here script_ex04.sjs.
The script file and the input model library files must be saved into the directory from which you run the following command.
utmost4 -s script_ex04.sjs
When the script runs, the point models will be read in from the input library. The resulting binned models will be saved in an output file script_ex04_bin_model.l.
Files
script_ex04_bin_model.l
.MODEL bin.1 NMOS ( +LMIN = 1e-06 LMAX = 1e-05 WMIN = 1e-06 +WMAX = 1e-05 BINUNIT = 0 BINFLAG = 0 +A0 = 1.72419 WA0 = -4.98519e-08 LA0 = -8.66296e-07 +PA0 = 2.42963e-13 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = 1.30111e-12 +WAGIDL = 1.21111e-18 LAGIDL = -5.55556e-19 PAGIDL = 1.33333e-23 +AGS = 0.345654 WAGS = -3.32099e-08 LAGS = 5.90123e-08 +PAGS = 7.65432e-14 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 176568 +WAT = -0.0045679 LAT = -0.131235 PAT = 1.23457e-09 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.00100745 +WCIT = -2.86556e-11 LCIT = 7.7e-11 PCIT = -2.08889e-16 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.299914 WETA0 = 8.58025e-10 +LETA0 = 8.58025e-10 PETA0 = -8.58025e-15 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.05168 WK2 = -1.73889e-08 LK2 = -3.48889e-09 +PK2 = -2.22222e-15 K3 = -3.555 K3B = -0.45 +KETA = -0.0150497 WKETA = 1.11268e-08 LKETA = -2.89211e-08 +PKETA = -8.18901e-15 KT1 = -0.257198 WKT1 = -4.69136e-09 +LKT1 = 7.53086e-09 PKT1 = -8.64198e-15 KT1L = 0 +KT2 = -0.0505096 WKT2 = -2.1037e-09 LKT2 = -6.9037e-09 +PKT2 = 4.03704e-15 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = -0.4299 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 0.233333 WPCLM = 0 LPCLM = 1.66667e-07 +PPCLM = -4.03897e-28 PDIBLC1 = 0 PDIBLC2 = 0.000501126 +WPDIBLC2 = -1.36816e-10 LPDIBLC2 = 1.18874e-09 PPDIBLC2 = -6.3184e-16 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = 0.0014078 WTVOFF = -7.87538e-10 +LTVOFF = 1.66517e-10 PTVOFF = 1.80383e-16 U0 = 0.0291547 +WU0 = -1.09321e-09 LU0 = -4.25432e-10 PU0 = -1.79012e-16 +UA = -1.67378e-09 WUA = 2.21111e-16 LUA = 1e-16 +PUA = -1.33333e-22 UA1 = 3.91686e-09 WUA1 = -9.64198e-16 +LUA1 = -2.04198e-16 PUA1 = 9.75309e-23 UB = 3.19958e-18 +WUB = -2.31358e-25 LUB = -1.12469e-25 PUB = 8.02469e-32 +UB1 = -4.30485e-18 WUB1 = 1.56741e-24 LUB1 = -4.25926e-26 +PUB1 = 1.37037e-31 UC = 9.68083e-11 WUC = -5.63167e-17 +LUC = 1.85389e-17 PUC = -1.09556e-23 UC1 = 1.738e-11 +WUC1 = 1.53389e-17 LUC1 = -3.05556e-17 PUC1 = 2.71667e-23 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.170778 WVOFF = -2.66667e-08 LVOFF = -7.77778e-09 +PVOFF = 2.22222e-14 VOFFCV = -0.109 VOFFL = 0 +VSAT = 101401 WVSAT = -0.000901235 LVSAT = -0.000123457 +PVSAT = 1.23457e-10 VTH0 = 0.569012 WVTH0 = 2.4321e-08 +LVTH0 = 1.87654e-08 PVTH0 = -3.20988e-14 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.2 NMOS ( +LMIN = 6.5e-07 LMAX = 1e-06 WMIN = 1e-06 +WMAX = 1e-05 BINUNIT = 0 BINFLAG = 0 +A0 = 1.40742 WA0 = 6.98254e-07 LA0 = -5.49529e-07 +PA0 = -5.05143e-13 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = 3.99968e-12 +WAGIDL = -1.22397e-17 LAGIDL = -3.25413e-18 PAGIDL = 2.67841e-23 +AGS = 0.782079 WAGS = 7.63492e-08 LAGS = -3.77413e-07 +PAGS = -3.30159e-14 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 79793.7 +WAT = 0.00492063 LAT = -0.0344603 PAT = -8.25397e-09 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.00100379 +WCIT = -2.10905e-10 LCIT = 8.0664e-11 PCIT = -2.66397e-17 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.29654 WETA0 = 3.46e-08 +LETA0 = 4.23222e-09 PETA0 = -4.23222e-14 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.0554505 WK2 = -2.14476e-08 LK2 = -7.25937e-09 +PK2 = 1.83651e-15 K3 = -3.555 K3B = -0.45 +KETA = -0.0542274 WKETA = 1.64908e-08 LKETA = 1.02566e-08 +PKETA = -1.3553e-14 KT1 = -0.231302 WKT1 = -1.12698e-08 +LKT1 = -1.83651e-08 PKT1 = -2.06349e-15 KT1L = 0 +KT2 = -0.0703411 WKT2 = 8.45397e-09 LKT2 = 1.29278e-08 +PKT2 = -6.52063e-15 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = -0.417932 +WMINV = 2.53603e-08 LMINV = -1.19683e-08 PMINV = -2.53603e-14 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 0.410317 WPCLM = -1.03175e-07 LPCLM = -1.03175e-08 +PPCLM = 1.03175e-13 PDIBLC1 = 0 PDIBLC2 = 0.00137007 +WPDIBLC2 = 5.2119e-11 LPDIBLC2 = 3.19792e-10 PPDIBLC2 = -8.20775e-16 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = 0.00246579 WTVOFF = -1.28359e-09 +LTVOFF = -8.91472e-10 PTVOFF = 6.76433e-16 U0 = 0.0266119 +WU0 = -1.71587e-09 LU0 = 2.11735e-09 PU0 = 4.43651e-16 +UA = -1.42748e-09 WUA = -5.66667e-17 LUA = -1.46302e-16 +PUA = 1.44444e-22 UA1 = 4.16437e-09 WUA1 = -1.52079e-15 +LUA1 = -4.51698e-16 PUA1 = 6.54127e-22 UB = 2.67008e-18 +WUB = 2.49206e-25 LUB = 4.17032e-25 PUB = -4.00317e-31 +UB1 = -4.88168e-18 WUB1 = 3.20254e-24 LUB1 = 5.34238e-25 +PUB1 = -1.4981e-30 UC = 7.51335e-11 WUC = -5.92205e-17 +LUC = 4.02137e-17 PUC = -8.05175e-24 UC1 = 6.15317e-12 +WUC1 = 9.21111e-18 LUC1 = -1.93287e-17 PUC1 = 3.32944e-23 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.181626 WVOFF = -1.59683e-09 LVOFF = 3.07048e-09 +PVOFF = -2.84762e-15 VOFFCV = -0.109 VOFFL = 0 +VSAT = 100989 WVSAT = 0.00396825 LVSAT = 0.000288889 +PVSAT = -4.74603e-09 VTH0 = 0.586375 WVTH0 = 2.91111e-09 +LVTH0 = 1.40317e-09 PVTH0 = -1.06889e-14 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.3 NMOS ( +LMIN = 3.5e-07 LMAX = 6.5e-07 WMIN = 1e-06 +WMAX = 1e-05 BINUNIT = 0 BINFLAG = 0 +A0 = 1.88671 WA0 = -2.38463e-07 LA0 = -8.61071e-07 +PA0 = 1.03723e-13 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = -1.01704e-12 +WAGIDL = 3.3737e-17 LAGIDL = 6.74074e-21 PAGIDL = -3.10074e-24 +AGS = -0.0315 WAGS = -5.38333e-07 LAGS = 1.51414e-07 +PAGS = 3.66528e-13 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 24703.7 +WAT = -0.0103704 LAT = 0.00134815 PAT = 1.68519e-09 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.00121197 +WCIT = -1.52346e-10 LCIT = -5.46514e-11 PCIT = -6.47027e-17 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.386193 WETA0 = -2.19296e-08 +LETA0 = -5.40422e-08 PETA0 = -5.57796e-15 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.0425102 WK2 = -1.24519e-08 LK2 = 1.15182e-09 +PK2 = -4.01074e-15 K3 = -3.555 K3B = -0.45 +KETA = 0.00902794 WKETA = -5.37761e-08 LKETA = -3.08594e-08 +PKETA = 3.21205e-14 KT1 = -0.261759 WKT1 = -5.07407e-08 +LKT1 = 1.43241e-09 PKT1 = 2.35926e-14 KT1L = 0 +KT2 = -0.0379844 WKT2 = -1.01722e-08 LKT2 = -8.10406e-09 +PKT2 = 5.58639e-15 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = -0.664354 +WMINV = 7.64889e-08 LMINV = 1.48206e-07 PMINV = -5.85939e-14 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 0.653704 WPCLM = -2.03704e-07 LPCLM = -1.68519e-07 +PPCLM = 1.68519e-13 PDIBLC1 = 0 PDIBLC2 = 0.00365854 +WPDIBLC2 = -2.36373e-09 LPDIBLC2 = -1.16771e-09 PPDIBLC2 = 7.49528e-16 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = 0.0012489 WTVOFF = -1.86261e-10 +LTVOFF = -1.00497e-10 PTVOFF = -3.68297e-17 U0 = 0.023815 +WU0 = -1.58815e-09 LU0 = 3.93533e-09 PU0 = 3.6063e-16 +UA = -1.82911e-09 WUA = 2.51111e-16 LUA = 1.14761e-16 +PUA = -5.56111e-23 UA1 = 3.44248e-09 WUA1 = -3.03148e-16 +LUA1 = 1.75259e-17 PUA1 = -1.37343e-22 UB = 3.01559e-18 +WUB = -3.34259e-25 LUB = 1.92448e-25 PUB = -2.10648e-32 +UB1 = -3.94324e-18 WUB1 = 2.80741e-25 LUB1 = -7.57491e-26 +PUB1 = 4.01074e-31 UC = 1.17095e-10 WUC = -5.35024e-17 +LUC = 1.29386e-17 PUC = -1.17685e-23 UC1 = 6.65148e-12 +WUC1 = 9.73519e-18 LUC1 = -1.96526e-17 PUC1 = 3.29538e-23 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.192305 WVOFF = 2.82315e-08 LVOFF = 1.00117e-08 +PVOFF = -2.2236e-14 VOFFCV = -0.109 VOFFL = 0 +VSAT = 112426 WVSAT = -0.00592593 LVSAT = -0.00714519 +PVSAT = 1.68519e-09 VTH0 = 0.592396 WVTH0 = -2.67296e-08 +LVTH0 = -2.51093e-09 PVTH0 = 8.57759e-15 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.4 NMOS ( +LMIN = 2.5e-07 LMAX = 3.5e-07 WMIN = 1e-06 +WMAX = 1e-05 BINUNIT = 0 BINFLAG = 0 +A0 = 1.06918 WA0 = 3.63722e-07 LA0 = -5.74933e-07 +PA0 = -1.07042e-13 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = -3.47722e-12 +WAGIDL = 8.31322e-17 LAGIDL = 8.67806e-19 PAGIDL = -2.03891e-23 +AGS = -0.329722 WAGS = 2.44222e-06 LAGS = 2.55792e-07 +PAGS = -6.76667e-13 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 23555.6 +WAT = -0.00555556 LAT = 0.00175 PAT = 9.635e-21 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.00128806 +WCIT = -1.01132e-09 LCIT = -8.12826e-11 PCIT = 2.35939e-16 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.0766422 WETA0 = -2.72922e-07 +LETA0 = 5.43006e-08 PETA0 = 8.22694e-14 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.0556983 WK2 = -5.56333e-08 LK2 = -3.46403e-09 +PK2 = 1.11028e-14 K3 = -3.555 K3B = -0.45 +KETA = -0.196396 WKETA = 1.87869e-07 LKETA = 4.10392e-08 +PKETA = -5.24553e-14 KT1 = -0.300722 WKT1 = -5.27778e-08 +LKT1 = 1.50694e-08 PKT1 = 2.43056e-14 KT1L = 0 +KT2 = -0.120411 WKT2 = 2.97611e-08 LKT2 = 2.07453e-08 +PKT2 = -8.39028e-15 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = 0.0207117 +WMINV = -2.07117e-07 LMINV = -9.15668e-08 PMINV = 4.06681e-14 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 0.0805556 WPCLM = 1.19444e-06 LPCLM = 3.20833e-08 +PPCLM = -3.20833e-13 PDIBLC1 = 0 PDIBLC2 = 0.000433333 +WPDIBLC2 = -1.33333e-09 LPDIBLC2 = -3.88889e-11 PPDIBLC2 = 3.88889e-16 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = 0.0016923 WTVOFF = -1.87857e-09 +LTVOFF = -2.55687e-10 PTVOFF = 5.55479e-16 U0 = 0.0170066 +WU0 = 4.98944e-09 LU0 = 6.31828e-09 PU0 = -1.94153e-15 +UA = -2.75289e-09 WUA = 8.33889e-16 LUA = 4.38083e-16 +PUA = -2.59583e-22 UA1 = 4.27728e-09 WUA1 = -1.59278e-15 +LUA1 = -2.74653e-16 PUA1 = 3.14028e-22 UB = 3.29544e-18 +WUB = -5.94444e-25 LUB = 9.45e-26 PUB = 7e-32 +UB1 = -5.92356e-18 WUB1 = 3.79056e-24 LUB1 = 6.17361e-25 +PUB1 = -8.27361e-31 UC = 2.98363e-10 WUC = -1.72507e-16 +LUC = -5.05052e-17 PUC = 2.98832e-23 UC1 = -1.75229e-10 +WUC1 = 3.26594e-16 LUC1 = 4.40057e-17 PUC1 = -7.79469e-23 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.127394 WVOFF = -2.91056e-08 LVOFF = -1.27069e-08 +PVOFF = -2.16806e-15 VOFFCV = -0.109 VOFFL = 0 +VSAT = 81150 WVSAT = 0.0025 LVSAT = 0.00380139 +PVSAT = -1.26389e-09 VTH0 = 0.541889 WVTH0 = -1.88889e-08 +LVTH0 = 1.51667e-08 PVTH0 = 5.83333e-15 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.5 NMOS ( +LMIN = 1e-06 LMAX = 1e-05 WMIN = 5.5e-07 +WMAX = 1e-06 BINUNIT = 0 BINFLAG = 0 +A0 = 1.67057 WA0 = 3.76173e-09 LA0 = -4.63494e-07 +PA0 = -1.5984e-13 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = -1.98517e-11 +WAGIDL = 2.2364e-17 LAGIDL = 3.75617e-17 PAGIDL = -2.4784e-23 +AGS = 0.317469 WAGS = -5.02469e-09 LAGS = 1.21975e-07 +PAGS = 1.35802e-14 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 173222 +WAT = -0.00122222 LAT = -0.142222 PAT = 1.22222e-08 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.00130556 +WCIT = -3.26764e-10 LCIT = -4.57272e-10 PCIT = 3.25383e-16 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.300252 WETA0 = 5.20123e-10 +LETA0 = -2.52099e-09 PETA0 = -5.20123e-15 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.0418105 WK2 = -7.51938e-09 LK2 = -9.03827e-09 +PK2 = 3.32716e-15 K3 = -3.555 K3B = -0.45 +KETA = -0.00045884 WKETA = -3.46405e-09 LKETA = -4.16705e-08 +PKETA = 4.56038e-15 KT1 = -0.275469 WKT1 = 1.35802e-08 +LKT1 = 2.46914e-10 PKT1 = -1.35802e-15 KT1L = 0 +KT2 = -0.0554095 WKT2 = 2.79617e-09 LKT2 = -6.0716e-09 +PKT2 = 3.20494e-15 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = -0.402604 +WMINV = -2.72963e-08 LMINV = -2.72963e-08 PMINV = 2.72963e-14 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 0.233333 WPCLM = -3.13402e-20 LPCLM = 1.66667e-07 +PPCLM = -2.90806e-26 PDIBLC1 = 0 PDIBLC2 = 8.27358e-05 +WPDIBLC2 = 2.81574e-10 LPDIBLC2 = 5.58842e-10 PPDIBLC2 = -1.94198e-18 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = 0.000331264 WTVOFF = 2.88996e-10 +LTVOFF = 2.64658e-10 PTVOFF = 8.2242e-17 U0 = 0.0268675 +WU0 = 1.19398e-09 LU0 = -8.86914e-10 PU0 = 2.82469e-16 +UA = -1.52559e-09 WUA = 7.29259e-17 LUA = -8.62963e-17 +PUA = 5.2963e-23 UA1 = 2.53996e-09 WUA1 = 4.12704e-16 +LUA1 = 8.48148e-17 PUA1 = -1.91481e-22 UB = 2.9852e-18 +WUB = -1.69753e-26 LUB = 1.28025e-25 PUB = -1.60247e-31 +UB1 = -1.81046e-18 WUB1 = -9.26988e-25 LUB1 = -1.92099e-25 +PUB1 = 2.86543e-31 UC = 6.29473e-11 WUC = -2.24556e-17 +LUC = -1.16506e-18 PUC = 8.7484e-24 UC1 = 8.77107e-11 +WUC1 = -5.49919e-17 LUC1 = -5.36996e-17 PUC1 = 5.03107e-23 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.195951 WVOFF = -1.49383e-09 LVOFF = 5.61728e-09 +PVOFF = 8.82716e-15 VOFFCV = -0.109 VOFFL = 0 +VSAT = 101953 WVSAT = -0.00145309 LVSAT = 0.000135802 +PVSAT = -1.35802e-10 VTH0 = 0.595235 WVTH0 = -1.90123e-09 +LVTH0 = -7.90123e-09 PVTH0 = -5.4321e-15 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.6 NMOS ( +LMIN = 6.5e-07 LMAX = 1e-06 WMIN = 5.5e-07 +WMAX = 1e-06 BINUNIT = 0 BINFLAG = 0 +A0 = 2.19683 WA0 = -9.11603e-08 LA0 = -9.89754e-07 +PA0 = -6.49175e-14 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = -1.89624e-11 +WAGIDL = 1.07224e-17 LAGIDL = 3.66724e-17 PAGIDL = -1.31424e-23 +AGS = 0.831714 WAGS = 2.67143e-08 LAGS = -3.9227e-07 +PAGS = -1.81587e-14 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 60095.2 +WAT = 0.024619 LAT = -0.0290952 PAT = -1.3619e-08 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.000692737 +WCIT = 1.00149e-10 LCIT = 1.55554e-10 PCIT = -1.0153e-16 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.338749 WETA0 = -7.60921e-09 +LETA0 = -4.10181e-08 PETA0 = 2.9281e-15 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.00423825 WK2 = 2.97646e-08 LK2 = 2.8534e-08 +PK2 = -3.39568e-14 K3 = -3.555 K3B = -0.45 +KETA = -0.0177688 WKETA = -1.99678e-08 LKETA = -2.43606e-08 +PKETA = 2.10641e-14 KT1 = -0.225286 WKT1 = -1.72857e-08 +LKT1 = -4.99365e-08 PKT1 = 2.95079e-14 KT1L = 0 +KT2 = -0.0952171 WKT2 = 3.333e-08 LKT2 = 3.3736e-08 +PKT2 = -2.73289e-14 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = -0.333578 +WMINV = -5.89932e-08 LMINV = -9.63217e-08 PMINV = 5.89932e-14 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 0.193651 WPCLM = 1.13492e-07 LPCLM = 2.06349e-07 +PPCLM = -1.13492e-13 PDIBLC1 = 0 PDIBLC2 = 0.00133087 +WPDIBLC2 = 9.13262e-11 LPDIBLC2 = -6.89289e-10 PPDIBLC2 = 1.88306e-16 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = 0.000770535 WTVOFF = 4.11664e-10 +LTVOFF = -1.74613e-10 PTVOFF = -4.04259e-17 U0 = 0.0236397 +WU0 = 1.25627e-09 LU0 = 2.34083e-09 PU0 = 2.20175e-16 +UA = -1.72352e-09 WUA = 2.39381e-16 LUA = 1.11635e-16 +PUA = -1.13492e-22 UA1 = 1.82084e-09 WUA1 = 8.2273e-16 +LUA1 = 8.03937e-16 PUA1 = -6.01508e-22 UB = 3.44152e-18 +WUB = -5.22238e-25 LUB = -3.28302e-25 PUB = 3.45016e-31 +UB1 = 7.34048e-19 WUB1 = -2.41319e-24 LUB1 = -2.7366e-24 +PUB1 = 1.77275e-30 UC = -1.06422e-11 WUC = 2.65552e-17 +LUC = 7.24244e-17 PUC = -4.02624e-23 UC1 = 2.89432e-11 +WUC1 = -1.35789e-17 LUC1 = 5.06794e-18 PUC1 = 8.89778e-24 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.189217 WVOFF = 5.99413e-09 LVOFF = -1.11635e-09 +PVOFF = 1.33921e-15 VOFFCV = -0.109 VOFFL = 0 +VSAT = 109497 WVSAT = -0.00453968 LVSAT = -0.00740794 +PVSAT = 2.95079e-09 VTH0 = 0.580163 WVTH0 = 9.12302e-09 +LVTH0 = 7.17063e-09 PVTH0 = -1.64563e-14 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.7 NMOS ( +LMIN = 3.5e-07 LMAX = 6.5e-07 WMIN = 5.5e-07 +WMAX = 1e-06 BINUNIT = 0 BINFLAG = 0 +A0 = 1.79551 WA0 = -1.47257e-07 LA0 = -7.28893e-07 +PA0 = -2.84544e-14 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = 7.3088e-11 +WAGIDL = -4.0368e-17 LAGIDL = -2.31603e-17 PAGIDL = 2.00663e-23 +AGS = -0.933648 WAGS = 3.63815e-07 LAGS = 7.55216e-07 +PAGS = -2.37274e-13 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 9240.74 +WAT = 0.00509259 LAT = 0.00396019 PAT = -9.26852e-10 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.00137579 +WCIT = -3.16169e-10 LCIT = -2.8843e-10 PCIT = 1.69076e-16 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.453979 WETA0 = -8.97152e-08 +LETA0 = -1.15917e-07 PETA0 = 5.6297e-14 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.0670509 WK2 = -3.69926e-08 LK2 = -1.22943e-08 +PK2 = 9.43535e-15 K3 = -3.555 K3B = -0.45 +KETA = -0.0822217 WKETA = 3.74735e-08 LKETA = 1.75338e-08 +PKETA = -1.62727e-14 KT1 = -0.366278 WKT1 = 5.37778e-08 +LKT1 = 4.17083e-08 PKT1 = -1.66833e-14 KT1L = 0 +KT2 = -0.0303876 WKT2 = -1.77691e-08 LKT2 = -8.40318e-09 +PKT2 = 5.88551e-15 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = -0.825192 +WMINV = 2.37327e-07 LMINV = 2.23227e-07 PMINV = -1.33615e-13 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 0.368519 WPCLM = 8.14815e-08 LPCLM = 9.26852e-08 +PPCLM = -9.26852e-14 PDIBLC1 = 0 PDIBLC2 = 0.000897026 +WPDIBLC2 = 3.97782e-10 LPDIBLC2 = -4.07292e-10 PPDIBLC2 = -1.08905e-17 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = 0.00102658 WTVOFF = 3.60657e-11 +LTVOFF = -3.41039e-10 PTVOFF = 2.03713e-16 U0 = 0.0223429 +WU0 = -1.16111e-10 LU0 = 3.18374e-09 PU0 = 1.11222e-15 +UA = -1.4845e-09 WUA = -9.35e-17 LUA = -4.37306e-17 +PUA = 1.02881e-22 UA1 = 3.23487e-09 WUA1 = -9.5537e-17 +LUA1 = -1.15182e-16 PUA1 = -4.63426e-24 UB = 2.53731e-18 +WUB = 1.44019e-25 LUB = 2.59434e-25 PUB = -8.80509e-32 +UB1 = -4.13489e-18 WUB1 = 4.72389e-25 LUB1 = 4.28206e-25 +PUB1 = -1.02881e-31 UC = 9.81671e-11 WUC = -3.45742e-17 +LUC = 1.69841e-18 PUC = -5.28306e-25 UC1 = 9.56722e-11 +WUC1 = -7.92856e-17 LUC1 = -3.83059e-17 PUC1 = 5.16071e-23 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.195071 WVOFF = 3.09976e-08 LVOFF = 2.68871e-09 +PVOFF = -1.4913e-14 VOFFCV = -0.109 VOFFL = 0 +VSAT = 110136 WVSAT = -0.00363611 LVSAT = -0.00782347 +PVSAT = 2.36347e-09 VTH0 = 0.596477 WVTH0 = -3.08102e-08 +LVTH0 = -3.43356e-09 PVTH0 = 9.50023e-15 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.8 NMOS ( +LMIN = 2.5e-07 LMAX = 3.5e-07 WMIN = 5.5e-07 +WMAX = 1e-06 BINUNIT = 0 BINFLAG = 0 +A0 = 2.7034 WA0 = -1.2705e-06 LA0 = -1.04666e-06 +PA0 = 3.64681e-13 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = 6.52572e-11 +WAGIDL = 1.43978e-17 LAGIDL = -2.04196e-17 PAGIDL = 8.98333e-25 +AGS = 3.70994 WAGS = -1.59744e-06 LAGS = -8.70042e-07 +PAGS = 4.49167e-13 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 21666.7 +WAT = -0.00366667 LAT = -0.000388889 PAT = 2.13889e-09 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = -0.000637897 +WCIT = 9.14632e-10 LCIT = 4.1636e-10 PCIT = -2.61704e-16 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = -0.873024 WETA0 = 6.76744e-07 +LETA0 = 3.48534e-07 PETA0 = -2.11964e-13 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.0747244 WK2 = -7.46594e-08 LK2 = -1.498e-08 +PK2 = 2.26187e-14 K3 = -3.555 K3B = -0.45 +KETA = 0.0675925 WKETA = -7.612e-08 LKETA = -3.49011e-08 +PKETA = 2.3485e-14 KT1 = -0.420722 WKT1 = 6.72222e-08 +LKT1 = 6.07639e-08 PKT1 = -2.13889e-14 KT1L = 0 +KT2 = -0.108549 WKT2 = 1.78994e-08 LKT2 = 1.89535e-08 +PKT2 = -6.59847e-15 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = 0.710211 +WMINV = -8.96616e-07 LMINV = -3.14164e-07 PMINV = 2.63265e-13 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 2.77222 WPCLM = -1.49722e-06 LPCLM = -7.48611e-07 +PPCLM = 4.59861e-13 PDIBLC1 = 0 PDIBLC2 = 0.00851111 +WPDIBLC2 = -9.41111e-09 LPDIBLC2 = -3.07222e-09 PPDIBLC2 = 3.42222e-15 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = -0.00140149 WTVOFF = 1.21522e-09 +LTVOFF = 5.08783e-10 PTVOFF = -2.08991e-16 U0 = 0.00518128 +WU0 = 1.68147e-08 LU0 = 9.19032e-09 PU0 = -4.81357e-15 +UA = -3.17972e-09 WUA = 1.26072e-15 LUA = 5.49597e-16 +PUA = -3.71097e-22 UA1 = 2.49383e-09 WUA1 = 1.90667e-16 +LUA1 = 1.44181e-16 PUA1 = -1.04806e-22 UB = 2.78717e-18 +WUB = -8.61667e-26 LUB = 1.71986e-25 PUB = -7.48611e-33 +UB1 = -1.45894e-18 WUB1 = -6.74056e-25 LUB1 = -5.08375e-25 +PUB1 = 2.98375e-31 UC = 2.07159e-10 WUC = -8.13028e-17 +LUC = -3.64487e-17 PUC = 1.58267e-23 UC1 = 2.08327e-10 +WUC1 = -5.69617e-17 LUC1 = -7.7735e-17 PUC1 = 4.37937e-23 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.0347667 WVOFF = -1.21733e-07 LVOFF = -5.34178e-08 +PVOFF = 3.85428e-14 VOFFCV = -0.109 VOFFL = 0 +VSAT = 68250 WVSAT = 0.0154 LVSAT = 0.00683667 +PVSAT = -4.29917e-09 VTH0 = 0.5175 WVTH0 = 5.5e-09 +LVTH0 = 2.42083e-08 PVTH0 = -3.20833e-15 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.9 NMOS ( +LMIN = 1e-06 LMAX = 1e-05 WMIN = 4e-07 +WMAX = 5.5e-07 BINUNIT = 0 BINFLAG = 0 +A0 = 1.61042 WA0 = 3.68459e-08 LA0 = -4.84185e-07 +PA0 = -1.48459e-13 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = -1.7187e-11 +WAGIDL = 2.08984e-17 LAGIDL = 1.5937e-17 PAGIDL = -1.28904e-23 +AGS = 0.317519 WAGS = -5.05185e-09 LAGS = 1.34815e-07 +PAGS = 6.51852e-15 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 169519 +WAT = 0.000814815 LAT = -0.105185 PAT = -8.14815e-09 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.00047153 +WCIT = 1.31954e-10 LCIT = 4.3937e-10 PCIT = -1.6777e-16 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.304392 WETA0 = -1.75674e-09 +LETA0 = -4.39185e-08 PETA0 = 1.75674e-14 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.0457626 WK2 = -9.69304e-09 LK2 = 1.09074e-08 +PK2 = -7.64296e-15 K3 = -3.555 K3B = -0.45 +KETA = -0.00914022 WKETA = 1.31071e-09 LKETA = -1.78518e-08 +PKETA = -8.53991e-15 KT1 = -0.215222 WKT1 = -1.95556e-08 +LKT1 = -6.44444e-08 PKT1 = 3.42222e-14 KT1L = 0 +KT2 = -0.0470544 WKT2 = -1.79911e-09 LKT2 = 2.11778e-08 +PKT2 = -1.17822e-14 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = -0.511789 +WMINV = 3.27556e-08 LMINV = 8.18889e-08 PMINV = -3.27556e-14 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 0.0703704 WPCLM = 8.96296e-08 LPCLM = 4.62963e-07 +PPCLM = -1.62963e-13 PDIBLC1 = 0 PDIBLC2 = 0.00111434 +WPDIBLC2 = -2.85808e-10 LPDIBLC2 = 6.98007e-10 PPDIBLC2 = -7.8483e-17 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = -6.94815e-05 WTVOFF = 5.09406e-10 +LTVOFF = 2.42248e-10 PTVOFF = 9.45674e-17 U0 = 0.0265308 +WU0 = 1.37916e-09 LU0 = -1.96444e-09 PU0 = 8.75111e-16 +UA = -1.86974e-09 WUA = 2.62207e-16 LUA = 2.17407e-16 +PUA = -1.14074e-22 UA1 = 4.04115e-09 WUA1 = -4.12948e-16 +LUA1 = -1.18481e-15 PUA1 = 5.06815e-22 UB = 3.37241e-18 +WUB = -2.29941e-25 LUB = -6.90741e-25 PUB = 2.90074e-31 +UB1 = -5.21856e-18 WUB1 = 9.47467e-25 LUB1 = 2.24889e-24 +PUB1 = -1.056e-30 UC = 6.58285e-11 WUC = -2.40403e-17 +LUC = 5.30348e-18 PUC = 5.1907e-24 UC1 = -1.43027e-10 +WUC1 = 7.19139e-17 LUC1 = 1.41914e-16 PUC1 = -5.72766e-23 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.276889 WVOFF = 4.30222e-08 LVOFF = 7.05556e-08 +PVOFF = -2.68889e-14 VOFFCV = -0.109 VOFFL = 0 +VSAT = 88644.4 WVSAT = 0.00586667 LVSAT = -0.000111111 +PVSAT = -1.59242e-19 VTH0 = 0.607481 WVTH0 = -8.63704e-09 +LVTH0 = -1.48148e-08 PVTH0 = -1.62963e-15 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.10 NMOS ( +LMIN = 6.5e-07 LMAX = 1e-06 WMIN = 4e-07 +WMAX = 5.5e-07 BINUNIT = 0 BINFLAG = 0 +A0 = 3.27798 WA0 = -6.85792e-07 LA0 = -2.15175e-06 +PA0 = 5.74179e-13 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = -7.80614e-11 +WAGIDL = 4.32269e-17 LAGIDL = 7.68114e-17 PAGIDL = -3.52189e-23 +AGS = 0.867714 WAGS = 6.91429e-09 LAGS = -4.15381e-07 +PAGS = -5.44762e-15 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 142952 +WAT = -0.0209524 LAT = -0.078619 PAT = 1.3619e-08 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.000136967 +WCIT = 4.05822e-10 LCIT = 7.73933e-10 PCIT = -4.41638e-16 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.224259 WETA0 = 5.53604e-08 +LETA0 = 3.62143e-08 PETA0 = -3.95497e-14 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.161537 WK2 = -5.67495e-08 LK2 = -1.04867e-07 +PK2 = 3.94135e-14 K3 = -3.555 K3B = -0.45 +KETA = -0.0940095 WKETA = 2.19646e-08 LKETA = 6.70175e-08 +PKETA = -2.91938e-14 KT1 = -0.392333 WKT1 = 7.45905e-08 +LKT1 = 1.12667e-07 PKT1 = -5.99238e-14 KT1L = 0 +KT2 = 0.0743162 WKT2 = -5.99133e-08 LKT2 = -1.00193e-07 +PKT2 = 4.6332e-14 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = -0.569551 +WMINV = 7.07918e-08 LMINV = 1.39651e-07 PMINV = -7.07918e-14 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 0.780952 WPCLM = -2.09524e-07 LPCLM = -2.47619e-07 +PPCLM = 1.3619e-13 PDIBLC1 = 0 PDIBLC2 = 0.00604777 +WPDIBLC2 = -2.50297e-09 LPDIBLC2 = -4.23542e-09 PPDIBLC2 = 2.13868e-15 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = -0.00165169 WTVOFF = 1.74389e-09 +LTVOFF = 1.82446e-09 PTVOFF = -1.13991e-15 U0 = 0.0234248 +WU0 = 1.37448e-09 LU0 = 1.14152e-09 PU0 = 8.7979e-16 +UA = -7.85048e-10 WUA = -2.76781e-16 LUA = -8.67286e-16 +PUA = 4.24914e-22 UA1 = 3.57195e-09 WUA1 = -1.40381e-16 +LUA1 = -7.15619e-16 PUA1 = 2.34248e-22 UB = 1.06533e-18 +WUB = 7.84667e-25 LUB = 1.61633e-24 PUB = -7.24533e-31 +UB1 = -2.42614e-18 WUB1 = -6.75086e-25 LUB1 = -5.43524e-25 +PUB1 = 5.66552e-31 UC = 1.37061e-10 WUC = -5.46813e-17 +LUC = -6.59286e-17 PUC = 3.58317e-23 UC1 = 1.8158e-10 +WUC1 = -9.75291e-17 LUC1 = -1.82693e-16 PUC1 = 1.12166e-22 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.211762 WVOFF = 1.83941e-08 LVOFF = 5.42905e-09 +PVOFF = -2.26076e-15 VOFFCV = -0.109 VOFFL = 0 +VSAT = 85623.8 WVSAT = 0.00859048 LVSAT = 0.00290952 +PVSAT = -2.72381e-09 VTH0 = 0.591893 WVTH0 = 2.67143e-09 +LVTH0 = 7.7381e-10 PVTH0 = -1.29381e-14 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.11 NMOS ( +LMIN = 3.5e-07 LMAX = 6.5e-07 WMIN = 4e-07 +WMAX = 5.5e-07 BINUNIT = 0 BINFLAG = 0 +A0 = 0.824789 WA0 = 3.86638e-07 LA0 = -5.57173e-07 +PA0 = -1.22901e-13 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = -1.8655e-11 +WAGIDL = 1.00907e-17 LAGIDL = 3.81973e-17 PAGIDL = -1.36803e-23 +AGS = -0.148167 WAGS = -6.82e-08 LAGS = 2.44942e-07 +PAGS = 4.33767e-14 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 9166.67 +WAT = 0.00513333 LAT = 0.00834167 PAT = -3.33667e-09 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.00152131 +WCIT = -3.96205e-10 LCIT = -1.25891e-10 PCIT = 7.96796e-17 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.274762 WETA0 = 8.85378e-09 +LETA0 = 3.38722e-09 PETA0 = -9.32042e-15 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = 0.00156056 WK2 = -9.72889e-10 LK2 = -8.82194e-10 +PK2 = 3.15871e-15 K3 = -3.555 K3B = -0.45 +KETA = 0.0155849 WKETA = -1.63201e-08 LKETA = -4.21886e-09 +PKETA = -4.30875e-15 KT1 = -0.183611 WKT1 = -4.66889e-08 +LKT1 = -2.30028e-08 PKT1 = 1.89078e-14 KT1L = 0 +KT2 = -0.0721617 WKT2 = 5.20667e-09 LKT2 = -4.98225e-09 +PKT2 = 4.004e-15 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = 0.285023 +WMINV = -3.73291e-07 LMINV = -4.15822e-07 PMINV = 2.17862e-13 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = 0.61 WPCLM = -5.13333e-08 LPCLM = -1.365e-07 +PPCLM = 3.33667e-14 PDIBLC1 = 0 PDIBLC2 = 0.00194098 +WPDIBLC2 = -1.76391e-10 LPDIBLC2 = -1.56601e-09 PPDIBLC2 = 6.26404e-16 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = 0.00265251 WTVOFF = -8.58196e-10 +LTVOFF = -9.7327e-10 PTVOFF = 5.5144e-16 U0 = 0.00670294 +WU0 = 8.48589e-09 LU0 = 1.20107e-08 PU0 = -3.74263e-15 +UA = -3.44117e-09 WUA = 9.82667e-16 LUA = 8.59192e-16 +PUA = -3.93727e-22 UA1 = 2.80117e-09 WUA1 = 1.43e-16 +LUA1 = -2.14608e-16 PUA1 = 5.005e-23 UB = 3.90006e-18 +WUB = -6.05489e-25 LUB = -2.26236e-25 PUB = 1.79068e-31 +UB1 = -5.40978e-18 WUB1 = 1.17358e-24 LUB1 = 1.39584e-24 +PUB1 = -6.35079e-31 UC = 5.44919e-11 WUC = -1.05529e-17 +LUC = -1.2259e-17 PUC = 7.14825e-24 UC1 = -5.53234e-10 +WUC1 = 2.77613e-16 LUC1 = 2.94936e-16 PUC1 = -1.31676e-22 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.0372494 WVOFF = -5.58042e-08 LVOFF = -1.08004e-07 +PVOFF = 4.59681e-14 VOFFCV = -0.109 VOFFL = 0 +VSAT = 82302.8 WVSAT = 0.0116722 LVSAT = 0.00506819 +PVSAT = -4.72694e-09 VTH0 = 0.515014 WVTH0 = 1.39944e-08 +LVTH0 = 5.07451e-08 PVTH0 = -2.02981e-14 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 ) .MODEL bin.12 NMOS ( +LMIN = 2.5e-07 LMAX = 3.5e-07 WMIN = 4e-07 +WMAX = 5.5e-07 BINUNIT = 0 BINFLAG = 0 +A0 = -0.459133 WA0 = 4.68893e-07 LA0 = -1.078e-07 +PA0 = -1.5169e-13 A1 = 0 A2 = 1 +ACDE = 0.309 ACNQSMOD = 0 AGIDL = 4.90088e-10 +WAGIDL = -2.19259e-16 LAGIDL = -1.39863e-16 PAGIDL = 6.65922e-23 +AGS = -0.195833 WAGS = 5.50733e-07 LAGS = 2.61625e-07 +PAGS = -1.7325e-13 AIGC = 0.43 AIGSD = 0.43 +ALPHA0 = 0 ALPHA1 = 1 AT = 16333.3 +WAT = -0.000733333 LAT = 0.00583333 PAT = -1.28333e-09 +B0 = 0 B1 = 0 BETA0 = 14.2 +BGIDL = 9.8117e+08 BVD = 8.8 BVS = 8.6 +CAPMOD = 2 CDSC = 0 CDSCB = 0 +CDSCD = 0 CF = 1.88e-10 CGBO = 0 +CGDL = 2e-10 CGDO = 1e-13 CGIDL = 0.5 +CGSL = 2e-10 CGSO = 1e-13 CIT = 0.00029539 +WCIT = 4.01324e-10 LCIT = 3.03182e-10 PCIT = -1.99456e-16 +CJD = 0.0012 CJS = 0.0011 CJSWD = 1.6e-10 +CJSWGD = 1.45e-10 CJSWGS = 1.46e-10 CJSWS = 1.6e-10 +CKAPPAD = 0.6 CKAPPAS = 0.6 CLC = 0 +CLE = 0.6 DELTA = 0.015 DIOMOD = 1 +DLC = 4.13e-08 DLCIG = 2.5e-09 DMCG = 1.02e-07 +DMCGT = 0 DMCI = 2.695e-07 DMDG = 0 +DROUT = 0.56 DSUB = 0.4059 DTOX = 4.23e-10 +DVT0 = 46.2462 DVT0W = 0 DVT1 = 0.600237 +DVT1W = 0 DVT2 = 0.0132836 DVT2W = 0 +DVTP0 = 1.09701e-08 DVTP1 = 1.6002 DWB = 0 +DWC = 0 DWG = 0 DWJ = 0 +EF = 0.99 EGIDL = 0.8 EM = 1.27e+08 +EPSROX = 3.9 ETA0 = 0.87054 WETA0 = -2.82216e-07 +LETA0 = -2.05135e-07 PETA0 = 9.2554e-14 ETAB = -0.04807 +FNOIMOD = 1 FPROUT = 0 GBMIN = 1e-12 +IGBMOD = 0 IGCMOD = 0 IJTHDFWD = 0.01 +IJTHDREV = 0.01 IJTHSFWD = 0.01 IJTHSREV = 0.01 +JSD = 7e-07 JSS = 6e-07 JSWD = 2e-13 +JSWGD = 1e-14 JSWGS = 1e-14 JSWS = 3e-13 +JTSSWGD = 5e-09 JTSSWGS = 5e-09 K1 = 0.4799 +K2 = -0.18766 WK2 = 6.9652e-08 LK2 = 6.5345e-08 +PK2 = -2.156e-14 K3 = -3.555 K3B = -0.45 +KETA = 0.0997152 WKETA = -9.37875e-08 LKETA = -3.36645e-08 +PKETA = 2.28048e-14 KT1 = -0.371833 WKT1 = 4.03333e-08 +LKT1 = 4.2875e-08 PKT1 = -1.155e-14 KT1L = 0 +KT2 = -0.139805 WKT2 = 3.509e-08 LKT2 = 1.86929e-08 +PKT2 = -6.45517e-15 LEVEL = 54 LINT = 0 +LINTNOI = -7.25e-09 LL = 0 LLC = 0 +LLN = 1 LPE0 = 1.2799e-07 LPEB = 1.58862e-08 +LW = 0 LWC = 0 LWL = 0 +LWLC = 0 LWN = 1 MINV = -3.09231 +WMINV = 1.19477e-06 LMINV = 7.66243e-07 PMINV = -3.30959e-13 +MJD = 0.328 MJS = 0.331 MJSWD = 0.115 +MJSWGD = 0.369 MJSWGS = 0.372 MJSWS = 0.113 +MOBMOD = 0 MOIN = 5 NDEP = 1.2e+17 +NFACTOR = 0.565 NGATE = 1.7739e+20 NGCON = 1 +NJD = 1.02 NJS = 1.02 NJTSSWG = 39.5 +NOFF = 2.8501 NOIA = 1.6e+41 NOIB = 2.4e+24 +NOIC = 7.52e+07 NSD = 1e+20 PARAMCHK = 1 +PBD = 0.723 PBS = 0.731 PBSWD = 0.429 +PBSWGD = 0.715 PBSWGS = 0.709 PBSWS = 0.431 +PCLM = -1.16333 WPCLM = 6.67333e-07 LPCLM = 4.84167e-07 +PPCLM = -2.18167e-13 PDIBLC1 = 0 PDIBLC2 = -0.0288667 +WPDIBLC2 = 1.11467e-08 LPDIBLC2 = 9.21667e-09 PPDIBLC2 = -3.33667e-15 +PDIBLCB = 0 PDITS = 0 PDITSD = 0 +PDITSL = 0 PERMOD = 1 PHIN = 0.1 +POXEDGE = 1 PRT = 0 PRWB = 0 +PRWG = 0 PSCBE1 = 9.196e+08 PSCBE2 = 1e-20 +PVAG = 0 RBDB = 50 RBODYMOD = 0 +RBPB = 50 RBPD = 50 RBPS = 50 +RBSB = 50 RDSMOD = 0 RDSW = 200 +RGATEMOD = 0 RGEOMOD = 0 RNOIA = 0.59499 +RNOIB = 0 RSH = 14.02 RSHG = 13.17 +TCJ = 0.0006 TCJSW = 0.00043 TCJSWG = 0.0007 +TEMPMOD = 0 TNJTSSWG = 1 TNOIA = 4.5218e+06 +TNOIB = 0 TNOIMOD = 1 TNOM = 25 +TOXE = 6.85e-09 TOXM = 6.85e-09 TOXREF = 3e-09 +TPB = 0.001 TPBSW = 0.00109 TPBSWG = 0.001 +TRNQSMOD = 0 TVOFF = -0.00472027 WTVOFF = 3.04055e-09 +LTVOFF = 1.6072e-09 PTVOFF = -8.1312e-16 U0 = 0.0497668 +WU0 = -7.70733e-09 LU0 = -3.06162e-09 PU0 = 1.925e-15 +UA = 1.03117e-09 WUA = -1.05527e-15 LUA = -7.06125e-16 +PUA = 3.1955e-22 UA1 = 7.405e-10 WUA1 = 1.155e-15 +LUA1 = 5.06625e-16 PUA1 = -3.0415e-22 UB = 1.46117e-18 +WUB = 6.43133e-25 LUB = 6.27375e-25 PUB = -2.5795e-31 +UB1 = 2.57417e-18 WUB1 = -2.89227e-24 LUB1 = -1.39854e-24 +PUB1 = 7.87967e-31 UC = -1.44012e-10 WUC = 1.11841e-16 +LUC = 5.72174e-17 PUC = -3.56896e-23 UC1 = 4.43907e-10 +WUC1 = -1.86531e-16 LUC1 = -5.40633e-17 PUC1 = 3.07743e-23 +UD = 0 UTE = -0.65 VERSION = 4.5 +VOFF = -0.6643 WVOFF = 2.2451e-07 LVOFF = 1.11463e-07 +PVOFF = -5.21418e-14 VOFFCV = -0.109 VOFFL = 0 +VSAT = 111050 WVSAT = -0.00814 LVSAT = -0.00499333 +PVSAT = 2.20733e-09 VTH0 = 0.6875 WVTH0 = -8.8e-08 +LVTH0 = -9.625e-09 PVTH0 = 1.54e-14 VTSSWGD = 1 +VTSSWGS = 1 W0 = 0 WINT = 0 +WL = 0 WLC = 0 WLN = 1 +WPEMOD = 0 WR = 1 WW = 0 +WWC = 0 WWL = 0 WWLC = 0 +WWN = 1 XGL = 1.5e-09 XGW = 0 +XJ = 8e-08 XJBVD = 1 XJBVS = 1 +XL = 0 XPART = 1 XRCRG1 = 12 +XRCRG2 = 1 XTID = 3 XTIS = 3 +XTSSWGD = 0.1 XTSSWGS = 0.1 XW = 0 )
script_ex04_point_models.l
.model n_10_10 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.573 +K1 = 0.4799 +K2 = 0.04957 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.4299 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.0010102 +VOFF = -0.174 +NFACTOR = 0.565 +ETA0 = 0.3 +ETAB = -0.04807 +U0 = 0.029001 +UA = -1.643e-9 +UB = 3.166e-18 +UC = 9.2921e-11 +VSAT = 101300 +A0 = 1.635 +AGS = 0.349 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.016911 +DWG = 0 +DWB = 0 +PCLM = 0.25 +PDIBLC1 = 0 +PDIBLC2 = 0.0006 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.5e-12 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0013475 +KT1 = -0.257 +KT1L = 0 +KT2 = -0.05137 +UTE = -0.65 +UA1 = 3.801e-9 +UB1 = -4.151e-18 +UC1 = 1.613e-11 +PRT = 0 +AT = 163000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_10_1 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.587 +K1 = 0.4799 +K2 = 0.04623 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.4299 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.0010607 +VOFF = -0.179 +NFACTOR = 0.565 +ETA0 = 0.3 +ETAB = -0.04807 +U0 = 0.028602 +UA = -1.565e-9 +UB = 3.072e-18 +UC = 1.0862e-10 +VSAT = 101200 +A0 = 0.8772 +AGS = 0.409 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.043677 +DWG = 0 +DWB = 0 +PCLM = 0.4 +PDIBLC1 = 0 +PDIBLC2 = 0.001613 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 2.2e-12 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0015136 +KT1 = -0.251 +KT1L = 0 +KT2 = -0.05722 +UTE = -0.65 +UA1 = 3.626e-9 +UB1 = -4.177e-18 +UC1 = -8.925e-12 +PRT = 0 +AT = 45000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_10_p25 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.603 +K1 = 0.4799 +K2 = 0.04072 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.35 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00095617 +VOFF = -0.182 +NFACTOR = 0.565 +ETA0 = 0.29946 +ETAB = -0.04807 +U0 = 0.042002 +UA = -1.021e-9 +UB = 3.642e-18 +UC = 9.1045e-11 +VSAT = 96100 +A0 = -1.237 +AGS = 0.667 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.034435 +DWG = 0 +DWB = 0 +PCLM = 0.2 +PDIBLC1 = 0 +PDIBLC2 = 0.0003 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.516e-13 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.00070389 +KT1 = -0.236 +KT1L = 0 +KT2 = -0.03781 +UTE = -0.65 +UA1 = 3.145e-9 +UB1 = -3.406e-18 +UC1 = 2.274e-12 +PRT = 0 +AT = 30000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_10_p35 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.585 +K1 = 0.4799 +K2 = 0.04341 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.25 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.0010221 +VOFF = -0.16723 +NFACTOR = 0.565 +ETA0 = 0.228 +ETAB = -0.04807 +U0 = 0.035003 +UA = -1.492e-9 +UB = 3.526e-18 +UC = 1.4535e-10 +VSAT = 91900 +A0 = -0.5677 +AGS = 0.452 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.075342 +DWG = 0 +DWB = 0 +PCLM = 0.2 +PDIBLC1 = 0 +PDIBLC2 = 0.0003 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.49e-12 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.00093262 +KT1 = -0.256 +KT1L = 0 +KT2 = -0.06056 +UTE = -0.65 +UA1 = 3.423e-9 +UB1 = -4.017e-18 +UC1 = -3.911e-11 +PRT = 0 +AT = 28000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_10_p65 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.58718 +K1 = 0.4799 +K2 = 0.04242 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.43771 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.0011027 +VOFF = -0.1775 +NFACTOR = 0.565 +ETA0 = 0.3 +ETAB = -0.04807 +U0 = 0.029766 +UA = -1.636e-9 +UB = 3.275e-18 +UC = 1.2984e-10 +VSAT = 101100 +A0 = 0.5541 +AGS = 0.204 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.038884 +DWG = 0 +DWB = 0 +PCLM = 0.4 +PDIBLC1 = 0 +PDIBLC2 = 0.001741 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.89e-12 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.00107 +KT1 = -0.261 +KT1L = 0 +KT2 = -0.05061 +UTE = -0.65 +UA1 = 3.418e-9 +UB1 = -3.97e-18 +UC1 = -1.754e-11 +PRT = 0 +AT = 26000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_1_10 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.592 +K1 = 0.4799 +K2 = 0.03372 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.4299 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00096561 +VOFF = -0.196 +NFACTOR = 0.565 +ETA0 = 0.3 +ETAB = -0.04807 +U0 = 0.028001 +UA = -1.456e-9 +UB = 2.965e-18 +UC = 4.125e-11 +VSAT = 100500 +A0 = 1.612 +AGS = 0.326 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.0076339 +DWG = 0 +DWB = 0 +PCLM = 0.25 +PDIBLC1 = 0 +PDIBLC2 = 0.00042 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 3.79e-12 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.00065495 +KT1 = -0.262 +KT1L = 0 +KT2 = -0.0529 +UTE = -0.65 +UA1 = 2.942e-9 +UB1 = -2.728e-18 +UC1 = 3.238e-11 +PRT = 0 +AT = 159000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_1_1 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.58 +K1 = 0.4799 +K2 = 0.02858 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.4299 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00084691 +VOFF = -0.183 +NFACTOR = 0.565 +ETA0 = 0.29305 +ETAB = -0.04807 +U0 = 0.027457 +UA = -1.486e-9 +UB = 2.936e-18 +UC = 4.8075e-11 +VSAT = 100500 +A0 = 1.051 +AGS = 0.448 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.041033 +DWG = 0 +DWB = 0 +PCLM = 0.4 +PDIBLC1 = 0 +PDIBLC2 = 0.00092121 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.529e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.00096716 +KT1 = -0.263 +KT1L = 0 +KT2 = -0.05548 +UTE = -0.65 +UA1 = 2.846e-9 +UB1 = -2.643e-18 +UC1 = 2.933e-11 +PRT = 0 +AT = 42000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_1_p25 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.607 +K1 = 0.4799 +K2 = 0.03062 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.39 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00089536 +VOFF = -0.216 +NFACTOR = 0.565 +ETA0 = 0.35 +ETAB = -0.04807 +U0 = 0.039503 +UA = -1.205e-9 +UB = 3.359e-18 +UC = 4.3368e-11 +VSAT = 93800 +A0 = -1.295 +AGS = 0.429 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.054192 +DWG = 0 +DWB = 0 +PCLM = 0.12 +PDIBLC1 = 0 +PDIBLC2 = 0.0005 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.57e-12 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0010129 +KT1 = -0.196 +KT1L = 0 +KT2 = -0.04123 +UTE = -0.65 +UA1 = 2.842e-9 +UB1 = -2.973e-18 +UC1 = 1.56e-11 +PRT = 0 +AT = 25000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_1_p35 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.583 +K1 = 0.4799 +K2 = 0.02189 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.33183 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00071861 +VOFF = -0.199 +NFACTOR = 0.565 +ETA0 = 0.19392 +ETAB = -0.04807 +U0 = 0.034501 +UA = -1.409e-9 +UB = 3.171e-18 +UC = 6.6936e-11 +VSAT = 90900 +A0 = -0.5156 +AGS = 0.91 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.041145 +DWG = 0 +DWB = 0 +PCLM = 0.45 +PDIBLC1 = 0 +PDIBLC2 = 0.0001 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 2.388e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.00067028 +KT1 = -0.241 +KT1L = 0 +KT2 = -0.05535 +UTE = -0.65 +UA1 = 2.797e-9 +UB1 = -2.733e-18 +UC1 = 5.439e-11 +PRT = 0 +AT = 23000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_1_p65 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.575 +K1 = 0.4799 +K2 = 0.02566 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.45 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.000876 +VOFF = -0.18288 +NFACTOR = 0.565 +ETA0 = 0.27254 +ETAB = -0.04807 +U0 = 0.028836 +UA = -1.487e-9 +UB = 2.945e-18 +UC = 6.5393e-11 +VSAT = 98100 +A0 = 0.4831 +AGS = 0.227 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.042808 +DWG = 0 +DWB = 0 +PCLM = 0.45 +PDIBLC1 = 0 +PDIBLC2 = 0.00065145 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 2.796e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.00085137 +KT1 = -0.274 +KT1L = 0 +KT2 = -0.05203 +UTE = -0.65 +UA1 = 2.955e-9 +UB1 = -3.162e-18 +UC1 = 3.685e-11 +PRT = 0 +AT = 19000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_p4_10 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.584 +K1 = 0.4799 +K2 = 0.02071 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.4299 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00080341 +VOFF = -0.169 +NFACTOR = 0.565 +ETA0 = 0.3 +ETAB = -0.04807 +U0 = 0.030001 +UA = -1.221e-9 +UB = 2.801e-18 +UC = 7.5558e-12 +VSAT = 103300 +A0 = 1.617 +AGS = 0.32 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.0097836 +DWG = 0 +DWB = 0 +PCLM = 0.3 +PDIBLC1 = 0 +PDIBLC2 = 0.00045 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 3.343e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0012519 +KT1 = -0.262 +KT1L = 0 +KT2 = -0.05238 +UTE = -0.65 +UA1 = 3.017e-9 +UB1 = -2.889e-18 +UC1 = 3.663e-11 +PRT = 0 +AT = 159000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_p4_1 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.567 +K1 = 0.4799 +K2 = 0.01333 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.4299 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00082136 +VOFF = -0.166 +NFACTOR = 0.565 +ETA0 = 0.3 +ETAB = -0.04807 +U0 = 0.030202 +UA = -1.282e-9 +UB = 2.832e-18 +UC = 2.4008e-11 +VSAT = 103200 +A0 = 0.8472 +AGS = 0.456 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.045065 +DWG = 0 +DWB = 0 +PCLM = 0.35 +PDIBLC1 = 0 +PDIBLC2 = 0.00090162 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.877e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0016827 +KT1 = -0.243 +KT1L = 0 +KT2 = -0.05983 +UTE = -0.65 +UA1 = 3.091e-9 +UB1 = -3.241e-18 +UC1 = 3.548e-11 +PRT = 0 +AT = 46000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_p4_p25 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.583 +K1 = 0.4799 +K2 = 0.03225 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.35 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00051687 +VOFF = -0.17859 +NFACTOR = 0.565 +ETA0 = 0.27 +ETAB = -0.04807 +U0 = 0.037502 +UA = -1.236e-9 +UB = 2.999e-18 +UC = 7.5639e-12 +VSAT = 92800 +A0 = -1.235 +AGS = 0.495 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.041363 +DWG = 0 +DWB = 0 +PCLM = 0.26 +PDIBLC1 = 0 +PDIBLC2 = 0.0025 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 4.841e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0011787 +KT1 = -0.215 +KT1L = 0 +KT2 = -0.04186 +UTE = -0.65 +UA1 = 2.613e-9 +UB1 = -2.371e-18 +UC1 = 6.907e-11 +PRT = 0 +AT = 25000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_p4_p35 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.55 +K1 = 0.4799 +K2 = 0.01917 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.28011 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00074025 +VOFF = -0.157 +NFACTOR = 0.565 +ETA0 = 0.24 +ETAB = -0.04807 +U0 = 0.035501 +UA = -1.342e-9 +UB = 3.019e-18 +UC = 4.4143e-11 +VSAT = 92200 +A0 = -0.6784 +AGS = 0.691 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.068046 +DWG = 0 +DWB = 0 +PCLM = 0.33 +PDIBLC1 = 0 +PDIBLC2 = 0.0015 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.799e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0016651 +KT1 = -0.231 +KT1L = 0 +KT2 = -0.04478 +UTE = -0.65 +UA1 = 2.903e-9 +UB1 = -3.024e-18 +UC1 = 4.293e-11 +PRT = 0 +AT = 22000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_p4_p65 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.55 +K1 = 0.4799 +K2 = 0.00992 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.45 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00064358 +VOFF = -0.16612 +NFACTOR = 0.565 +ETA0 = 0.26626 +ETAB = -0.04807 +U0 = 0.032001 +UA = -1.177e-9 +UB = 2.727e-18 +UC = 3.6743e-11 +VSAT = 101100 +A0 = 0.4615 +AGS = 0.225 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.048278 +DWG = 0 +DWB = 0 +PCLM = 0.4 +PDIBLC1 = 0 +PDIBLC2 = 0.0015 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.272e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0011306 +KT1 = -0.263 +KT1L = 0 +KT2 = -0.05141 +UTE = -0.65 +UA1 = 3.021e-9 +UB1 = -2.771e-18 +UC1 = 8.81e-11 +PRT = 0 +AT = 22000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_p55_10 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.59 +K1 = 0.4799 +K2 = 0.02784 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.45 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00072488 +VOFF = -0.1965 +NFACTOR = 0.565 +ETA0 = 0.3 +ETAB = -0.04807 +U0 = 0.029001 +UA = -1.392e-9 +UB = 2.938e-18 +UC = 2.3593e-11 +VSAT = 99300 +A0 = 1.602 +AGS = 0.323 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.010095 +DWG = 0 +DWB = 0 +PCLM = 0.25 +PDIBLC1 = 0 +PDIBLC2 = 0.00065022 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 2.006e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.00089813 +KT1 = -0.251 +KT1L = 0 +KT2 = -0.05035 +UTE = -0.65 +UA1 = 3.264e-9 +UB1 = -3.463e-18 +UC1 = -8.497e-12 +PRT = 0 +AT = 159000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_p55_1 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.574 +K1 = 0.4799 +K2 = 0.02515 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.4299 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00084578 +VOFF = -0.177 +NFACTOR = 0.565 +ETA0 = 0.28922 +ETAB = -0.04807 +U0 = 0.028665 +UA = -1.383e-9 +UB = 2.791e-18 +UC = 3.686e-11 +VSAT = 99200 +A0 = 0.9233 +AGS = 0.455 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.040136 +DWG = 0 +DWB = 0 +PCLM = 0.4 +PDIBLC1 = 0 +PDIBLC2 = 0.00115 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.331e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0012709 +KT1 = -0.253 +KT1L = 0 +KT2 = -0.05057 +UTE = -0.65 +UA1 = 3.027e-9 +UB1 = -3.167e-18 +UC1 = 2.55e-11 +PRT = 0 +AT = 51000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_p55_p25 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.601 +K1 = 0.4799 +K2 = 0.04356 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.262 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00078721 +VOFF = -0.18946 +NFACTOR = 0.565 +ETA0 = 0.21 +ETAB = -0.04807 +U0 = 0.037507 +UA = -1.388e-9 +UB = 3.264e-18 +UC = 2.8644e-11 +VSAT = 92330 +A0 = -1.141 +AGS = 0.592 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.039612 +DWG = 0 +DWB = 0 +PCLM = 0.4 +PDIBLC1 = 0 +PDIBLC2 = 0.004 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 1.629e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0013232 +KT1 = -0.211 +KT1L = 0 +KT2 = -0.04818 +UTE = -0.65 +UA1 = 2.655e-9 +UB1 = -2.548e-18 +UC1 = 1.1232e-10 +PRT = 0 +AT = 29000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_p55_p35 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.58 +K1 = 0.4799 +K2 = 0.01368 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.45 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00085517 +VOFF = -0.2085 +NFACTOR = 0.565 +ETA0 = 0.25212 +ETAB = -0.04807 +U0 = 0.037006 +UA = -1.245e-9 +UB = 3.083e-18 +UC = 3.7413e-11 +VSAT = 93450 +A0 = -0.7026 +AGS = 0.653 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.048525 +DWG = 0 +DWB = 0 +PCLM = 0.3 +PDIBLC1 = 0 +PDIBLC2 = 0.0004 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 3.776e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.001176 +KT1 = -0.236 +KT1L = 0 +KT2 = -0.05613 +UTE = -0.65 +UA1 = 2.708e-9 +UB1 = -2.587e-18 +UC1 = 1.1016e-10 +PRT = 0 +AT = 25000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1 .model n_p55_p65 nmos +LEVEL = 54 +VERSION = 4.5 +PARAMCHK = 1 +MOBMOD = 0 +CAPMOD = 2 +IGCMOD = 0 +IGBMOD = 0 +DIOMOD = 1 +RDSMOD = 0 +RBODYMOD = 0 +RGEOMOD = 0 +RGATEMOD = 0 +PERMOD = 1 +ACNQSMOD = 0 +TRNQSMOD = 0 +TEMPMOD = 0 +WPEMOD = 0 +TNOM = 25 +TOXE = 6.85e-9 +TOXM = 6.85e-9 +DTOX = 4.23e-10 +EPSROX = 3.9 +TOXREF = 3e-9 +WINT = 0 +LINT = 0 +LL = 0 +WL = 0 +LLN = 1 +WLN = 1 +LW = 0 +WW = 0 +LWN = 1 +WWN = 1 +LWL = 0 +WWL = 0 +LLC = 0 +WLC = 0 +LWC = 0 +WWC = 0 +LWLC = 0 +WWLC = 0 +XL = 0 +XW = 0 +DLC = 4.13e-8 +DWC = 0 +DLCIG = 2.5e-9 +XPART = 1 +VTH0 = 0.56175 +K1 = 0.4799 +K2 = 0.00727 +K3 = -3.555 +K3B = -0.45 +W0 = 0 +DVT0 = 46.2462 +DVT1 = 0.600237 +DVT2 = 0.0132836 +DVT0W = 0 +DVT1W = 0 +DVT2W = 0 +DSUB = 0.4059 +MINV = -0.42401 +VOFFL = 0 +DVTP0 = 1.09701e-8 +DVTP1 = 1.6002 +LPE0 = 1.2799e-7 +LPEB = 1.58862e-8 +XJ = 8e-8 +NGATE = 177390000000000000000 +NDEP = 120000000000000000 +NSD = 100000000000000000000 +PHIN = 0.1 +CDSC = 0 +UD = 0 +CDSCB = 0 +CDSCD = 0 +CIT = 0.00083014 +VOFF = -0.17629 +NFACTOR = 0.565 +ETA0 = 0.27 +ETAB = -0.04807 +U0 = 0.030141 +UA = -1.434e-9 +UB = 2.952e-18 +UC = 3.644e-11 +VSAT = 98100 +A0 = 0.3268 +AGS = 0.226 +A1 = 0 +A2 = 1 +B0 = 0 +B1 = 0 +KETA = -0.032631 +DWG = 0 +DWB = 0 +PCLM = 0.4 +PDIBLC1 = 0 +PDIBLC2 = 0.0009632 +PDIBLCB = 0 +DROUT = 0.56 +PVAG = 0 +DELTA = 0.015 +PSCBE1 = 919600000 +PSCBE2 = 1e-20 +FPROUT = 0 +PDITS = 0 +PDITSD = 0 +PDITSL = 0 +RSH = 14.02 +RDSW = 200 +PRWG = 0 +PRWB = 0 +WR = 1 +ALPHA0 = 0 +ALPHA1 = 1 +BETA0 = 14.2 +AGIDL = 2.019e-11 +BGIDL = 981170000 +CGIDL = 0.5 +EGIDL = 0.8 +AIGC = 0.43 +AIGSD = 0.43 +POXEDGE = 1 +CGSO = 1e-13 +CGDO = 1e-13 +CGBO = 0 +CGDL = 2e-10 +CGSL = 2e-10 +CLC = 0 +CLE = 0.6 +CF = 1.88e-10 +CKAPPAS = 0.6 +CKAPPAD = 0.6 +ACDE = 0.309 +MOIN = 5 +NOFF = 2.8501 +VOFFCV = -0.109 +TVOFF = 0.0011373 +KT1 = -0.251 +KT1L = 0 +KT2 = -0.05916 +UTE = -0.65 +UA1 = 2.871e-9 +UB1 = -2.905e-18 +UC1 = 3.694e-11 +PRT = 0 +AT = 22000 +FNOIMOD = 1 +TNOIMOD = 1 +EM = 127000000 +EF = 0.99 +NOIA = 1.6e+41 +NOIB = 2.4e+24 +NOIC = 75200000 +LINTNOI = -7.25e-9 +TNOIA = 4521800 +TNOIB = 0 +RNOIA = 0.59499 +RNOIB = 0 +JSS = 6e-7 +JSWS = 3e-13 +JSWGS = 1e-14 +NJS = 1.02 +IJTHSFWD = 0.01 +IJTHSREV = 0.01 +BVS = 8.6 +XJBVS = 1 +JSD = 7e-7 +JSWD = 2e-13 +JSWGD = 1e-14 +NJD = 1.02 +IJTHDFWD = 0.01 +IJTHDREV = 0.01 +BVD = 8.8 +XJBVD = 1 +JTSSWGS = 5e-9 +JTSSWGD = 5e-9 +NJTSSWG = 39.5 +XTSSWGS = 0.1 +XTSSWGD = 0.1 +TNJTSSWG = 1 +VTSSWGS = 1 +VTSSWGD = 1 +PBS = 0.731 +CJS = 0.0011 +MJS = 0.331 +PBSWS = 0.431 +CJSWS = 1.6e-10 +MJSWS = 0.113 +PBSWGS = 0.709 +CJSWGS = 1.46e-10 +MJSWGS = 0.372 +PBD = 0.723 +CJD = 0.0012 +MJD = 0.328 +PBSWD = 0.429 +CJSWD = 1.6e-10 +MJSWD = 0.115 +PBSWGD = 0.715 +CJSWGD = 1.45e-10 +MJSWGD = 0.369 +TPB = 0.001 +TCJ = 0.0006 +TPBSW = 0.00109 +TCJSW = 0.00043 +TPBSWG = 0.001 +TCJSWG = 0.0007 +XTIS = 3 +XTID = 3 +DMCG = 1.02e-7 +DMCI = 2.695e-7 +DMDG = 0 +DMCGT = 0 +DWJ = 0 +XGW = 0 +XGL = 1.5e-9 +RSHG = 13.17 +GBMIN = 1e-12 +RBPB = 50 +RBPD = 50 +RBPS = 50 +RBDB = 50 +RBSB = 50 +NGCON = 1 +XRCRG1 = 12 +XRCRG2 = 1
script_ex04.sjs
var infoArray = [];
var pointArray = [];
var pmi, pmw, pml, pmc, pmj;
var i, j;
var w, l;
var binIdx;
var binName;
var fileName = "script_ex04_point_models.l";
var binLibName = "script_ex04_bin_model.l";
var myDir = Silvaco.Utmost4.openCurrentWorkingDirectory ();
var myPointModelLibrary = Silvaco.Utmost4.makeModelLibrary ();
var myBinnedModelLibrary = Silvaco.Utmost4.makeModelLibrary ();
pointArray.push ({Wdrawn : 1.0E-05, Ldrawn : 1.0E-05, CardName : "n_10_10"});
pointArray.push ({Wdrawn : 1.0E-05, Ldrawn : 1.0E-06, CardName : "n_10_1"});
pointArray.push ({Wdrawn : 1.0E-05, Ldrawn : 6.5E-07, CardName : "n_10_p65"});
pointArray.push ({Wdrawn : 1.0E-05, Ldrawn : 3.5E-07, CardName : "n_10_p35"});
pointArray.push ({Wdrawn : 1.0E-05, Ldrawn : 2.5E-07, CardName : "n_10_p25"});
pointArray.push ({Wdrawn : 1.0E-06, Ldrawn : 1.0E-05, CardName : "n_1_10"});
pointArray.push ({Wdrawn : 1.0E-06, Ldrawn : 1.0E-06, CardName : "n_1_1"});
pointArray.push ({Wdrawn : 1.0E-06, Ldrawn : 6.5E-07, CardName : "n_1_p65"});
pointArray.push ({Wdrawn : 1.0E-06, Ldrawn : 3.5E-07, CardName : "n_1_p35"});
pointArray.push ({Wdrawn : 1.0E-06, Ldrawn : 2.5E-07, CardName : "n_1_p25"});
pointArray.push ({Wdrawn : 5.5E-07, Ldrawn : 1.0E-05, CardName : "n_p55_10"});
pointArray.push ({Wdrawn : 5.5E-07, Ldrawn : 1.0E-06, CardName : "n_p55_1"});
pointArray.push ({Wdrawn : 5.5E-07, Ldrawn : 6.5E-07, CardName : "n_p55_p65"});
pointArray.push ({Wdrawn : 5.5E-07, Ldrawn : 3.5E-07, CardName : "n_p55_p35"});
pointArray.push ({Wdrawn : 5.5E-07, Ldrawn : 2.5E-07, CardName : "n_p55_p25"});
pointArray.push ({Wdrawn : 4.0E-07, Ldrawn : 1.0E-05, CardName : "n_p4_10"});
pointArray.push ({Wdrawn : 4.0E-07, Ldrawn : 1.0E-06, CardName : "n_p4_1"});
pointArray.push ({Wdrawn : 4.0E-07, Ldrawn : 6.5E-07, CardName : "n_p4_p65"});
pointArray.push ({Wdrawn : 4.0E-07, Ldrawn : 3.5E-07, CardName : "n_p4_p35"});
pointArray.push ({Wdrawn : 4.0E-07, Ldrawn : 2.5E-07, CardName : "n_p4_p25"});
// Import point model files
myPointModelLibrary.importModelCards (myDir, fileName, "", "", "*", "optVal");
// Create binning model library
binIdx = 0;
for (i=0; i<pointArray.length; ++i)
{
infoArray = [];
pmi = pointArray[i];
pmw = pmi;
pml = pmi;
pmc = pmi;
// Find adjacent l element
l = 0;
pml = null;
for (j=0; j<pointArray.length; ++j)
{
pmj = pointArray[j];
if (pmi.Wdrawn == pmj.Wdrawn && pmj.Ldrawn < pmi.Ldrawn && pmj.Ldrawn > l)
{
pml = pmj;
l = pmj.Ldrawn;
}
}
if (pml == null)
continue;
// Find adjacent w element
w = 0;
pmw = null;
for (j=0; j<pointArray.length; ++j)
{
pmj = pointArray[j];
if (pmi.Ldrawn == pmj.Ldrawn && pmj.Wdrawn < pmi.Wdrawn && pmj.Wdrawn > w)
{
pmw = pmj;
w = pmj.Wdrawn;
}
}
if (pmw == null)
continue;
// Find adjacent corner (w*l) element
pmc = null;
for (j=0; j<pointArray.length; ++j)
{
pmj = pointArray[j];
if (pmj.Ldrawn == pml.Ldrawn && pmj.Wdrawn == pmw.Wdrawn)
{
pmc = pmj;
break;
}
}
if (pmc == null)
continue;
// Create a bin model card
infoArray.push(pmi);
infoArray.push(pml);
infoArray.push(pmw);
infoArray.push(pmc);
binName = "bin." + String(++binIdx);
print(binName, pmi.Wdrawn.toExponential(), pmi.Ldrawn.toExponential(), pmc.Wdrawn.toExponential(), pmc.Ldrawn.toExponential());
myPointModelLibrary.generateBinnedModel (infoArray, "optVal", binName, myBinnedModelLibrary, "overwrite");
// Export the bin model card to the library
myBinnedModelLibrary.exportModelCard (binName, "optVal", myDir, binLibName, "", "");
}
