acq_ex12 : Bipolar Capacitance Measurement

Requires: Utmost IV, SmartSpice, SmartView

Minimum Versions: Utmost IV 1.11.0.R, SmartSpice 4.10.6.R, SmartView 2.28.2.R

This example describes how to perform bipolar capacitance measurements.

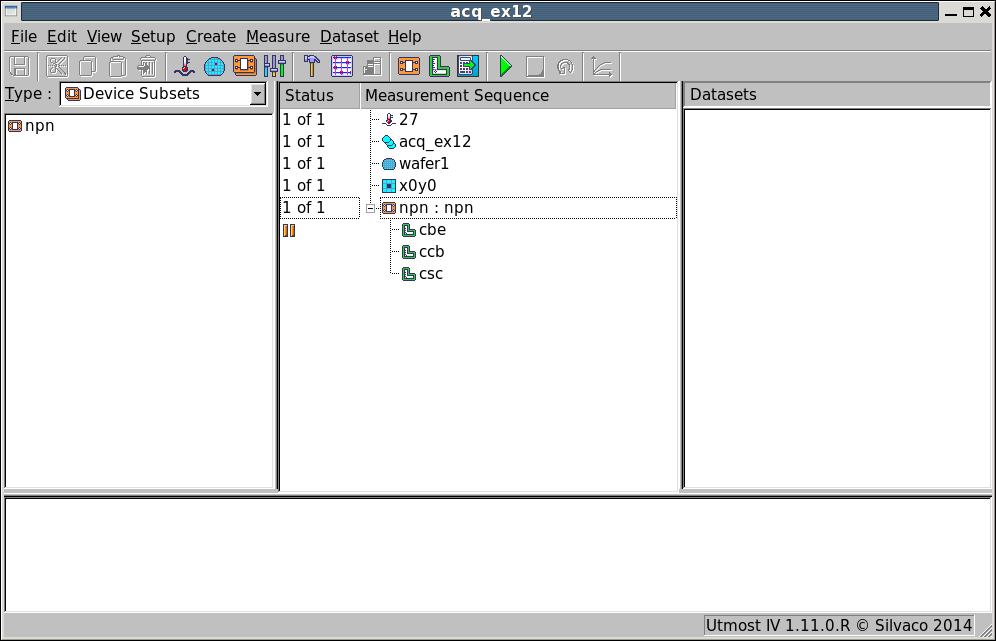

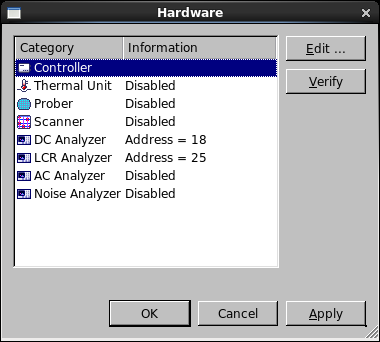

The project file acq_ex12.prj for this example should be loaded into your database. When opened, the project will look as shown in acq_ex12_01.png . In the project hardware, the DC Analyzer and LCR Analyzer are enabled for measurement as shown in acq_ex12_02.png .

This project includes three capacitance measurement setups for the various junctions in the four terminal vertical bipolar device and are defined as

  • cbe Base-Emitter junction capacitance
  • ccb Collector-Base junction capacitance
  • csc Substrate-Collector junction capacitance

There are two important connections when measuring capacitance, the high terminal (Hi) where the ac bias is applied and the low terminal (Lo) where the measurement of the ac impedance and thus the capacitance happens. When measuring capacitance it is important to connect the device correctly.

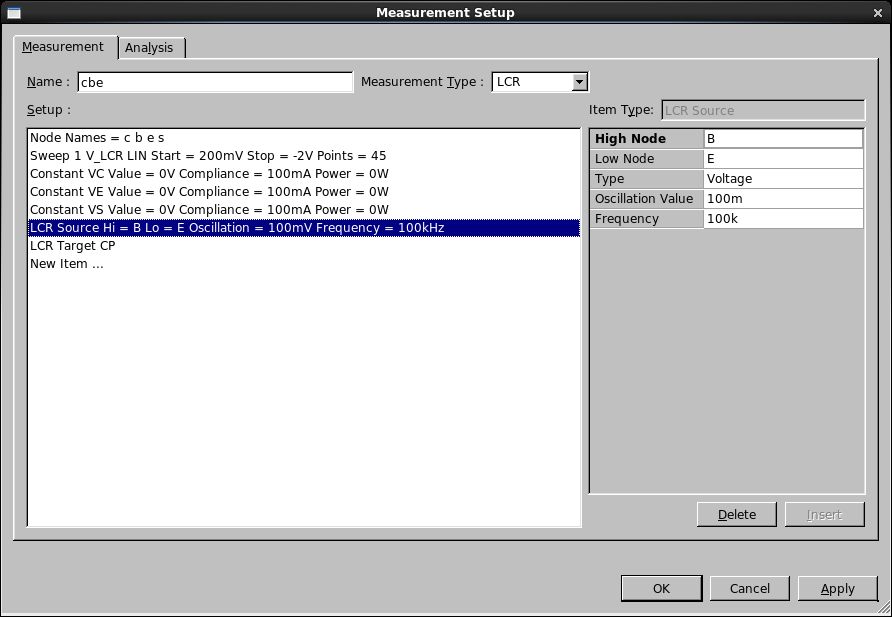

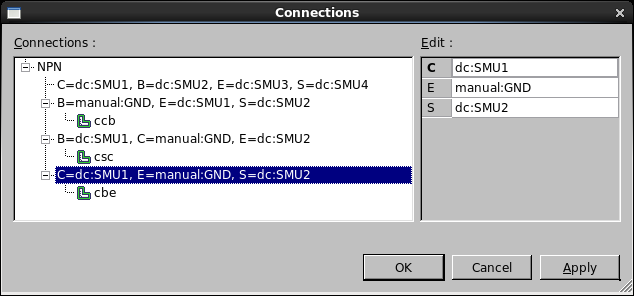

To measure the Base-Emitter capacitance (cbe), the low terminal of the measurement is connected to the emitter node and the high to the base node of the bipolar as shown in acq_ex12_03.png . It is important that the applied bias to the high terminal reverse biases the junction in order to measure the reverse bias diode capacitance characteristic. The zero volts on the low terminal can be supplied by the LCR instrument itself. In this case, we set the connection for this terminal to 'manual ground' to indicate that the bias is already taken care of. In general, when performing capacitance measurements, it is important that the other terminals are connected to a DC source. You should not allow the other terminals to 'float' as the measured capacitance contributions may be affected. The connections for the various measurements are shown in acq_ex12_04.png .

Before measuring any capacitance, you should calibrate or zero the LCR instrument to remove the effect of the test instrument and test setup from the measured result. If you have a dedicated open calibration structure, this should be used when calibrating the LCR instrument. To calibrate the LCR instrument, select the capacitance measurement setup in the measurement sequence and then select Measure->Calibrate from the project menu. Once calibration is done, capacitance measurement will be performed by selecting Measure->Run from the project menu.

For this example, we can now switch the project into its simulation mode by selecting Measure->Simulation from the project menu. This will allow us to view the typical characteristics which will be generated when the measurement is performed.

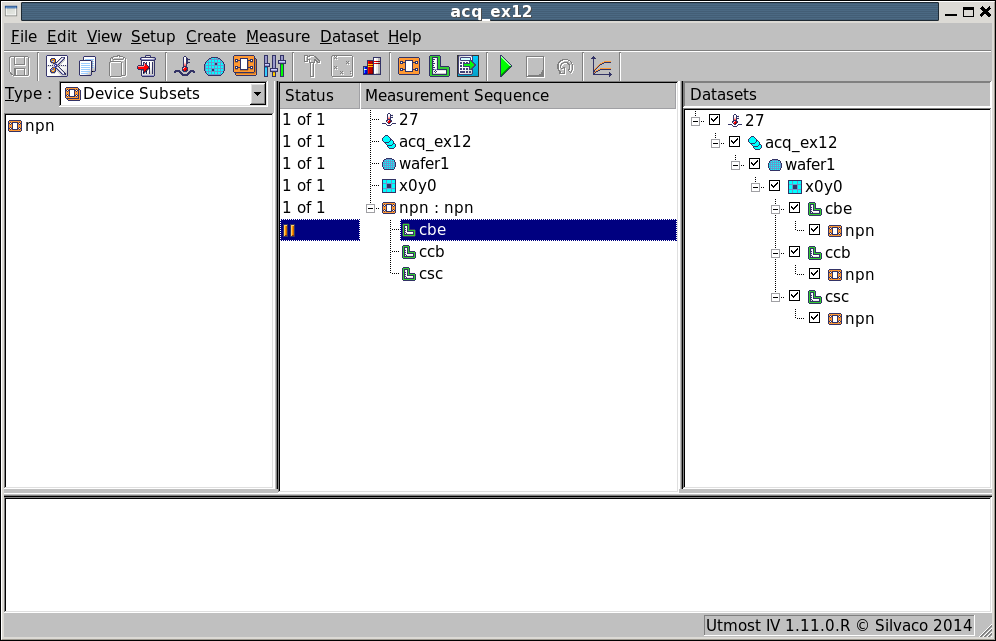

When the measurement sequence is run, the measured data will be automatically stored in the database and the measured results will be shown in the dataset selector area of the acquisition project as shown in acq_ex12_05.png .

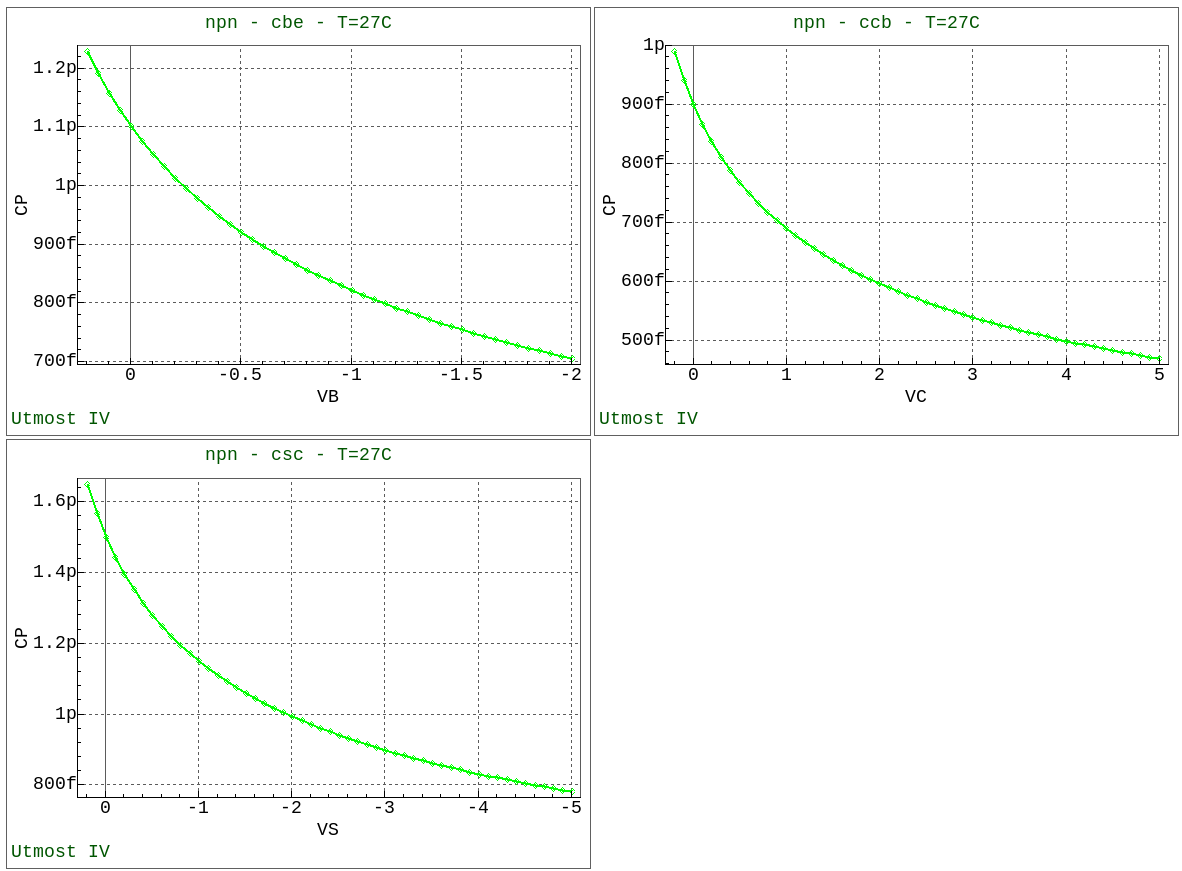

Select all of the data which has been measured and display in the viewer by selecting Dataset->Plot from the project menu. This will display all three measured characteristics as shown in acq_ex12_06.png .
