opt_ex03 : Optimization of Extracted Values
Requires: Utmost IV, SmartSpice, SmartView
Minimum Versions: Utmost IV 1.10.6.R, SmartSpice 4.10.2.R, SmartView 2.28.2.R
This example shows how to optimize extracted data in order to extract a mosfet SPICE model. Rather than optimizing the measured data directly, an extraction is performed on each of a number of datasets and the results from this extraction is then used to perform the optimization.

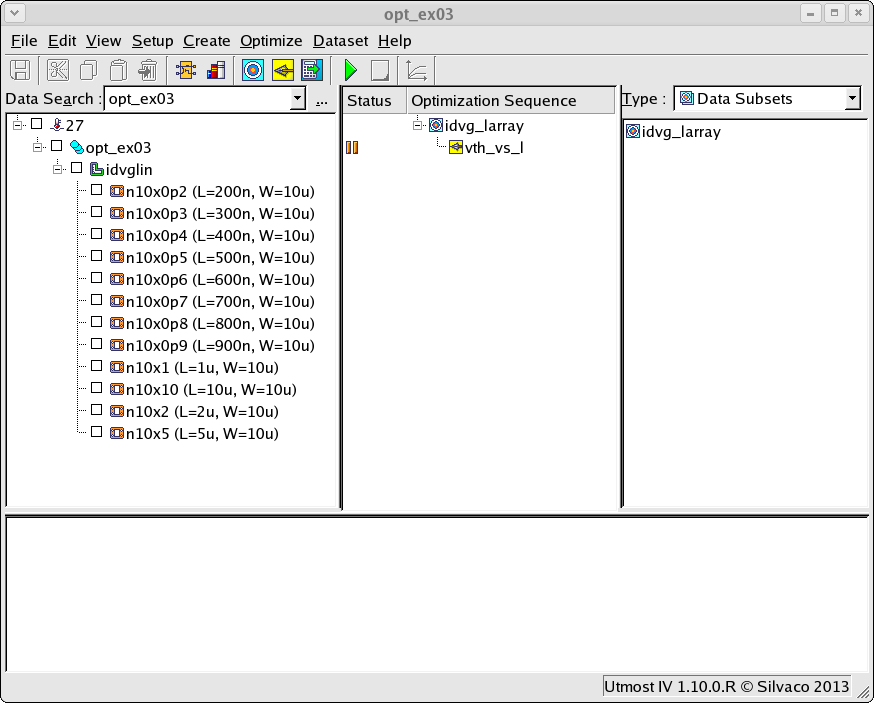

The project file opt_ex03.prj and the data file opt_ex03.uds for this example should both be loaded into your database. When opened, the project will look as shown in opt_ex03_01.png .

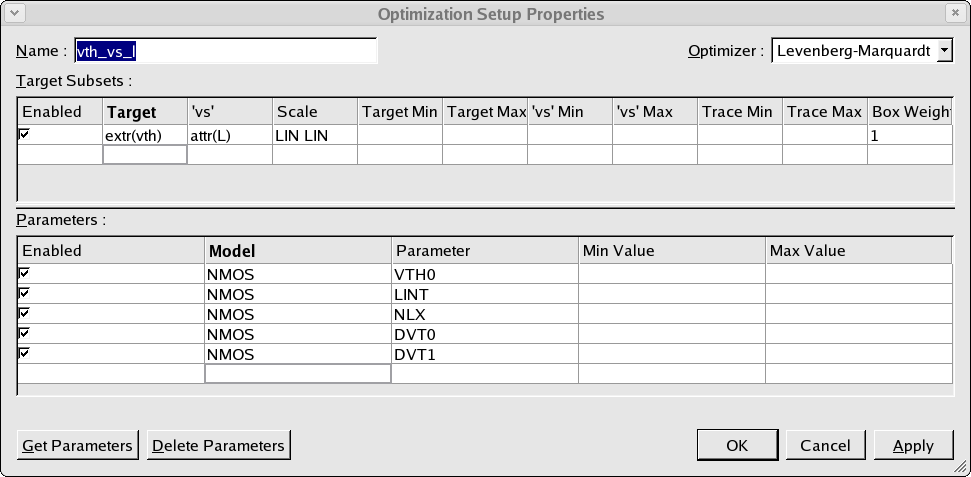

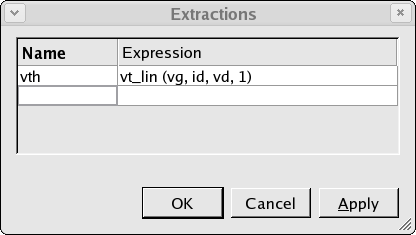

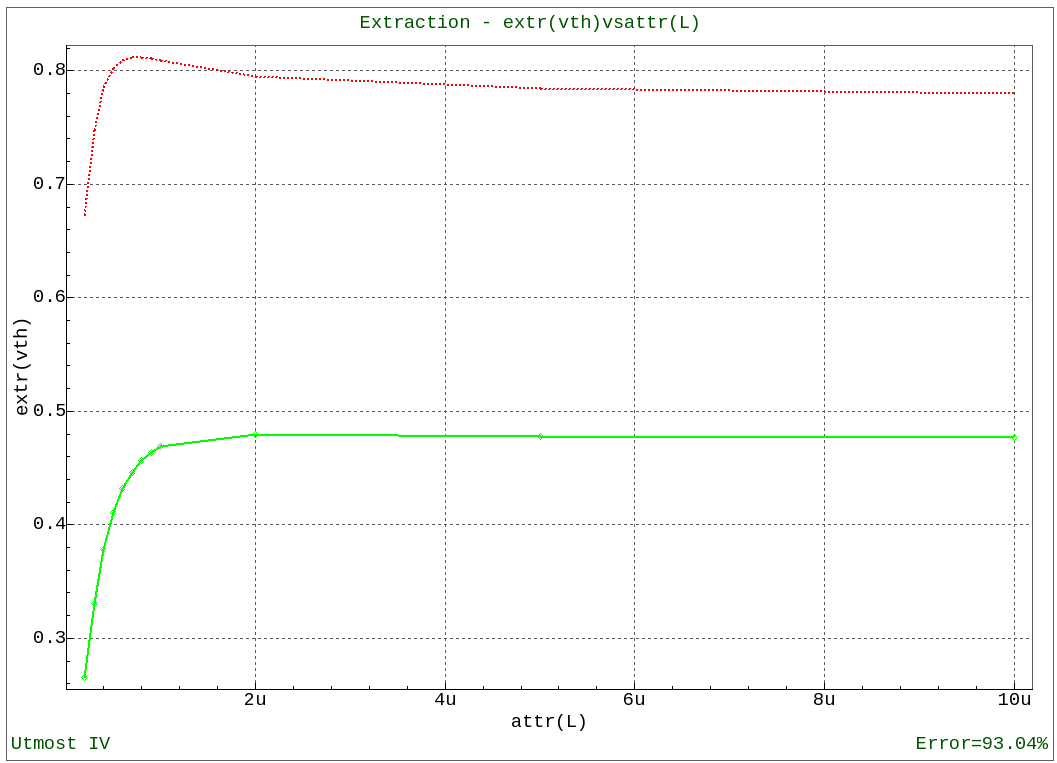

First, the extraction must be defined in the extractions dialog shown in opt_ex03_02.png . Then this extraction must be referenced in the optimization setup shown in opt_ex03_03.png . The special 'extr' syntax lets Utmost IV know that an extraction is to be performed on the datasets which are specified by the data subset. The special 'attr' syntax lets Utmost IV know that the extracted threshold voltage is to be plotted against the length of the transistor. Before optimization the plot of threshold voltage versus transistor width is as shown in opt_ex03_04.png .

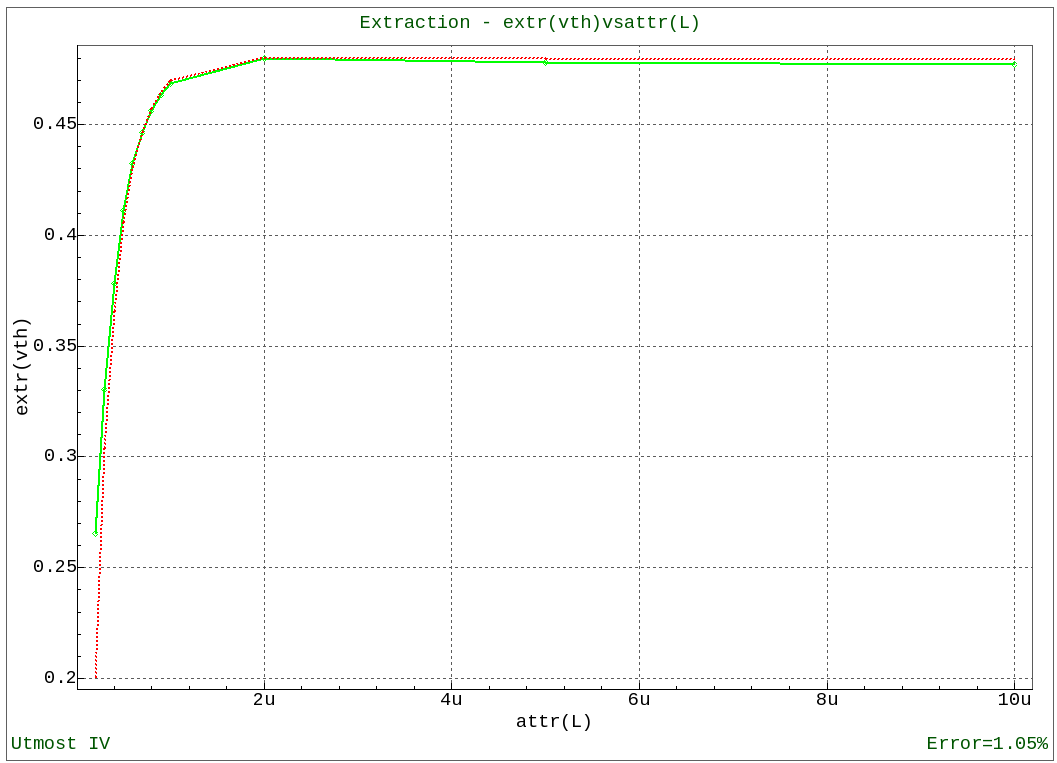

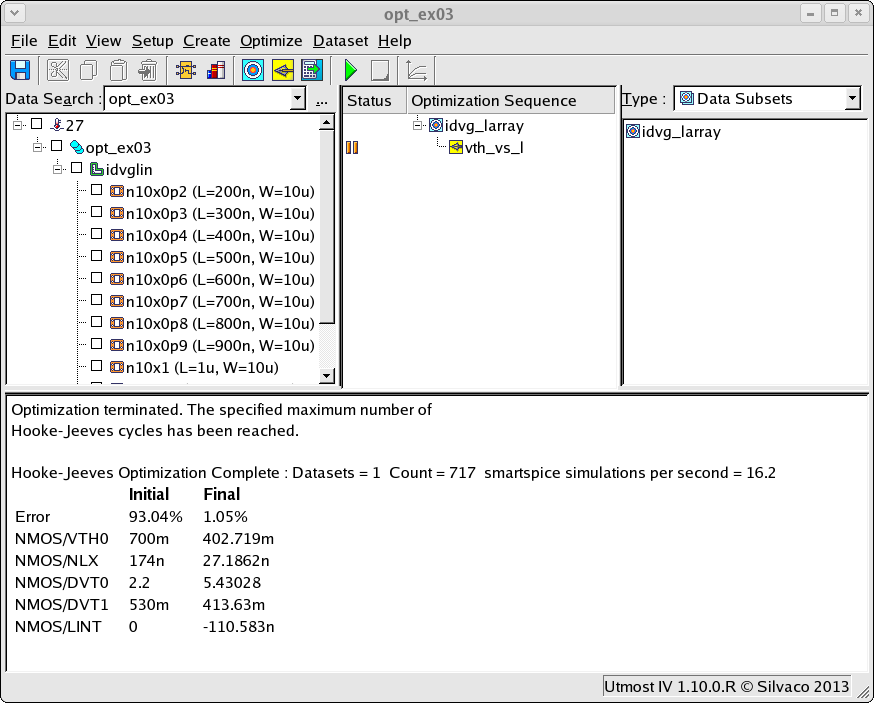

When the optmization sequence is run, it is the extracted threshold values which will be used, rather than the measured currents or voltages and the results of the optimization are displayed in the viewer as shown in opt_ex03_05.png and are also written to the project as shown in opt_ex03_06.png .
Files
opt_ex03.uds
Utmost IV CSV Data Logfile Format Version 1 Copyright (c) 1984-2016 Silvaco, Inc. All rights reserved DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x0p2 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 2e-07 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 6.579e-08 5.5956e-07 4.05282e-06 2.21062e-05 7.12745e-05 0.000142457 0.000219111 0.000295254 0.00036978 0.000442656 0.000513974 0.000583797 0.000652163 0.000719103 0.000784645 0.000848817 0.000911648 0.000973168 0.00103341 0.00109239 0.00115016 0.00120673 0.00126214 0.00131641 0.00136956 0.00142164 0.00147266 0.00152265 0.00157162 0.00161962 0.00166665 0.00171274 0.00175792 0.0018022 0.0018456 0.00188815 0.00192987 0.00197076 0.00201086 0.00205018 0.00208874 0.00212654 0.00216362 0.00219999 0.00223566 0.00227064 0.00230496 0.00233862 0.00237164 0.00240404 0.00243582 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x0p3 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 3e-07 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 7.28462e-09 7.14297e-08 6.1896e-07 4.44087e-06 2.18595e-05 5.95822e-05 0.000106638 0.000155006 0.000202597 0.000249101 0.000294534 0.000338934 0.000382329 0.000424741 0.000466191 0.0005067 0.000546291 0.000584985 0.000622805 0.000659774 0.000695913 0.000731245 0.00076579 0.000799569 0.000832603 0.000864911 0.000896511 0.000927423 0.000957663 0.00098725 0.0010162 0.00104453 0.00107225 0.00109939 0.00112595 0.00115195 0.0011774 0.00120232 0.00122672 0.00125061 0.00127401 0.00129692 0.00131936 0.00134135 0.00136288 0.00138397 0.00140463 0.00142488 0.00144471 0.00146414 0.00148319 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x0p4 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 4e-07 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 1.41701e-09 1.51223e-08 1.4722e-07 1.21519e-06 7.73149e-06 2.85842e-05 6.07036e-05 9.57e-05 0.000130551 0.000164665 0.000197983 0.000230524 0.000262307 0.000293348 0.000323664 0.00035327 0.000382182 0.000410419 0.000437997 0.000464935 0.000491249 0.000516956 0.000542073 0.000566616 0.0005906 0.000614041 0.000636953 0.000659351 0.000681249 0.000702659 0.000723596 0.00074407 0.000764095 0.000783682 0.000802843 0.000821588 0.000839928 0.000857874 0.000875435 0.000892621 0.000909441 0.000925905 0.000942021 0.000957798 0.000973244 0.000988367 0.00100318 0.00101768 0.00103187 0.00104578 0.0010594 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x0p5 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 5e-07 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 4.42307e-10 4.96559e-09 5.19488e-08 4.68374e-07 3.39868e-06 1.56594e-05 3.88916e-05 6.60058e-05 9.34278e-05 0.000120345 0.000146642 0.00017232 0.000197392 0.000221871 0.000245769 0.000269099 0.000291873 0.000314106 0.000335811 0.000357004 0.000377698 0.000397907 0.000417645 0.000436923 0.000455756 0.000474156 0.000492134 0.000509702 0.000526871 0.000543653 0.000560057 0.000576094 0.000591773 0.000607105 0.000622098 0.000636761 0.000651103 0.000665132 0.000678856 0.000692283 0.00070542 0.000718275 0.000730855 0.000743167 0.000755217 0.000767012 0.000778558 0.00078986 0.000800926 0.00081176 0.000822368 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x0p6 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 6e-07 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 1.93162e-10 2.2388e-09 2.44938e-08 2.34203e-07 1.82941e-06 9.70117e-06 2.73224e-05 4.929e-05 7.18558e-05 9.40744e-05 0.00011579 0.000136994 0.000157695 0.000177902 0.000197625 0.000216874 0.00023566 0.000253995 0.000271891 0.000289359 0.000306412 0.000323062 0.000339318 0.000355193 0.000370698 0.000385842 0.000400635 0.000415088 0.00042921 0.000443009 0.000456496 0.000469677 0.000482563 0.000495159 0.000507475 0.000519518 0.000531294 0.000542811 0.000554076 0.000565094 0.000575873 0.000586419 0.000596736 0.000606832 0.000616712 0.00062638 0.000635843 0.000645105 0.000654171 0.000663047 0.000671735 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x0p7 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 7e-07 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 1.06232e-10 1.25725e-09 1.41553e-08 1.40772e-07 1.15112e-06 6.6655e-06 2.06174e-05 3.90095e-05 5.81637e-05 7.7076e-05 9.55689e-05 0.000113626 0.000131253 0.000148457 0.000165246 0.000181629 0.000197615 0.000213215 0.000228439 0.000243296 0.000257798 0.000271953 0.000285773 0.000299266 0.000312441 0.000325308 0.000337876 0.000350152 0.000362144 0.000373862 0.000385311 0.000396501 0.000407437 0.000418126 0.000428576 0.000438792 0.000448781 0.000458549 0.000468102 0.000477445 0.000486583 0.000495522 0.000504267 0.000512823 0.000521194 0.000529386 0.000537402 0.000545248 0.000552926 0.000560442 0.000567799 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x0p8 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 8e-07 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 6.83998e-11 8.21015e-10 9.42072e-09 9.62027e-08 8.10806e-07 4.96569e-06 1.64312e-05 3.2225e-05 4.88582e-05 6.53193e-05 8.14219e-05 9.71451e-05 0.000112493 0.00012747 0.000142085 0.000156345 0.000170258 0.000183832 0.000197078 0.000210003 0.000222617 0.000234928 0.000246945 0.000258677 0.000270132 0.000281317 0.00029224 0.000302908 0.000313329 0.00032351 0.000333457 0.000343177 0.000352675 0.000361959 0.000371033 0.000379904 0.000388576 0.000397056 0.000405347 0.000413456 0.000421387 0.000429143 0.000436731 0.000444154 0.000451416 0.000458522 0.000465475 0.000472279 0.000478938 0.000485455 0.000491834 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x0p9 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 9e-07 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 4.90939e-11 5.95055e-10 6.91637e-09 7.19193e-08 6.18757e-07 3.93135e-06 1.36469e-05 2.74827e-05 4.21806e-05 5.67529e-05 7.10123e-05 8.49358e-05 9.85258e-05 0.000111787 0.000124727 0.00013735 0.000149665 0.00016168 0.000173401 0.000184839 0.000195999 0.000206891 0.000217522 0.000227899 0.00023803 0.000247921 0.00025758 0.000267013 0.000276226 0.000285226 0.000294019 0.000302609 0.000311004 0.000319208 0.000327226 0.000335064 0.000342726 0.000350217 0.000357541 0.000364703 0.000371708 0.000378558 0.000385259 0.000391813 0.000398225 0.000404499 0.000410637 0.000416643 0.000422521 0.000428273 0.000433903 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x1 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 1e-06 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 3.80123e-11 4.6391e-10 5.44037e-09 5.72854e-08 4.99958e-07 3.25601e-06 1.16931e-05 2.40073e-05 3.71745e-05 5.02471e-05 6.30419e-05 7.55355e-05 8.77291e-05 9.96274e-05 0.000111235 0.000122559 0.000133606 0.000144381 0.000154894 0.00016515 0.000175157 0.000184923 0.000194454 0.000203756 0.000212837 0.000221703 0.000230359 0.000238813 0.000247069 0.000255133 0.000263011 0.000270708 0.000278228 0.000285577 0.000292759 0.000299779 0.000306641 0.000313349 0.000319908 0.000326321 0.000332593 0.000338726 0.000344725 0.000350592 0.000356332 0.000361947 0.000367441 0.000372817 0.000378077 0.000383224 0.000388262 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x10 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 1e-05 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 2.77411e-12 3.44715e-11 4.12678e-10 4.45637e-09 4.00312e-08 2.73955e-07 1.05208e-06 2.24001e-06 3.52398e-06 4.80124e-06 6.05133e-06 7.27133e-06 8.46122e-06 9.62141e-06 1.07524e-05 1.18549e-05 1.29294e-05 1.39768e-05 1.49979e-05 1.59933e-05 1.69638e-05 1.79101e-05 1.8833e-05 1.97331e-05 2.06112e-05 2.14679e-05 2.23038e-05 2.31195e-05 2.39157e-05 2.46928e-05 2.54514e-05 2.61922e-05 2.69155e-05 2.76219e-05 2.83118e-05 2.89858e-05 2.96441e-05 3.02874e-05 3.0916e-05 3.15302e-05 3.21306e-05 3.27173e-05 3.32909e-05 3.38517e-05 3.43999e-05 3.49359e-05 3.54601e-05 3.59727e-05 3.64741e-05 3.69645e-05 3.74441e-05 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x2 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 2e-06 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 1.32522e-11 1.64608e-10 1.97276e-09 2.13903e-08 1.93056e-07 1.32934e-06 5.17416e-06 1.11327e-05 1.76061e-05 2.40539e-05 3.03676e-05 3.65316e-05 4.25457e-05 4.84119e-05 5.41327e-05 5.97112e-05 6.51507e-05 7.04547e-05 7.5627e-05 8.06712e-05 8.5591e-05 9.039e-05 9.50717e-05 9.96396e-05 0.000104097 0.000108447 0.000112693 0.000116838 0.000120884 0.000124835 0.000128694 0.000132462 0.000136143 0.000139738 0.000143251 0.000146684 0.000150038 0.000153316 0.00015652 0.000159652 0.000162714 0.000165707 0.000168634 0.000171496 0.000174295 0.000177032 0.000179709 0.000182328 0.000184891 0.000187397 0.000189849 DataSetFinish DataSetStart DataSetName, idvglin MeasurementType, DC BatchName, opt_ex03 WaferName, wafer1 DieName, x0y0 DeviceName, n10x5 Temperature, 27 FabDate, 18 Jan 2013 UserDate, 18 Jan 2013 WaferDiameter, 0.2 DieLayout, FOUR_CROSSING DieSize, 0.02, 0.02 Attribute, L, 5e-06 Attribute, W, 1e-05 NodeNames, d g s b Sweep, 1, V, G, LIN, 0, 5, 0.1, CALCULATED, 0.1, 0 Constant, V, D, 0.1, 0.1, 0 Constant, V, S, 0, 0.1, 0 Constant, V, B, 0, 0.1, 0 Target, I, D Function, gm, derivative (vg, id) Plot, idvg, XYY (LIN LIN LIN), VG, ID, gm DataArray, ID 5.44466e-12 6.76715e-11 8.10708e-10 8.7691e-09 7.89192e-08 5.41512e-07 2.09024e-06 4.46681e-06 7.0398e-06 9.60036e-06 1.21068e-05 1.45532e-05 1.69394e-05 1.92662e-05 2.15347e-05 2.37462e-05 2.5902e-05 2.80035e-05 3.00522e-05 3.20496e-05 3.39973e-05 3.58967e-05 3.77491e-05 3.95561e-05 4.13189e-05 4.30389e-05 4.47173e-05 4.63553e-05 4.79541e-05 4.95149e-05 5.10386e-05 5.25265e-05 5.39795e-05 5.53986e-05 5.67848e-05 5.81389e-05 5.94618e-05 6.07545e-05 6.20177e-05 6.32522e-05 6.44588e-05 6.56382e-05 6.67912e-05 6.79185e-05 6.90207e-05 7.00984e-05 7.11524e-05 7.21832e-05 7.31914e-05 7.41775e-05 7.51422e-05 DataSetFinish
