opt_ex22 : BSIM-BULK MOSFET Model Extraction

Requires: Utmost IV, SmartSpice, SmartView

Minimum Versions: Utmost IV 2.7.1.R, SmartSpice 4.32.0.R, SmartView 2.34.0.R

This example describes how to extract a standard BSIM-BULK model. To extract a model which is scalable with geometry, multiple different device sizes must be included. In this example, seven device geometries are included.

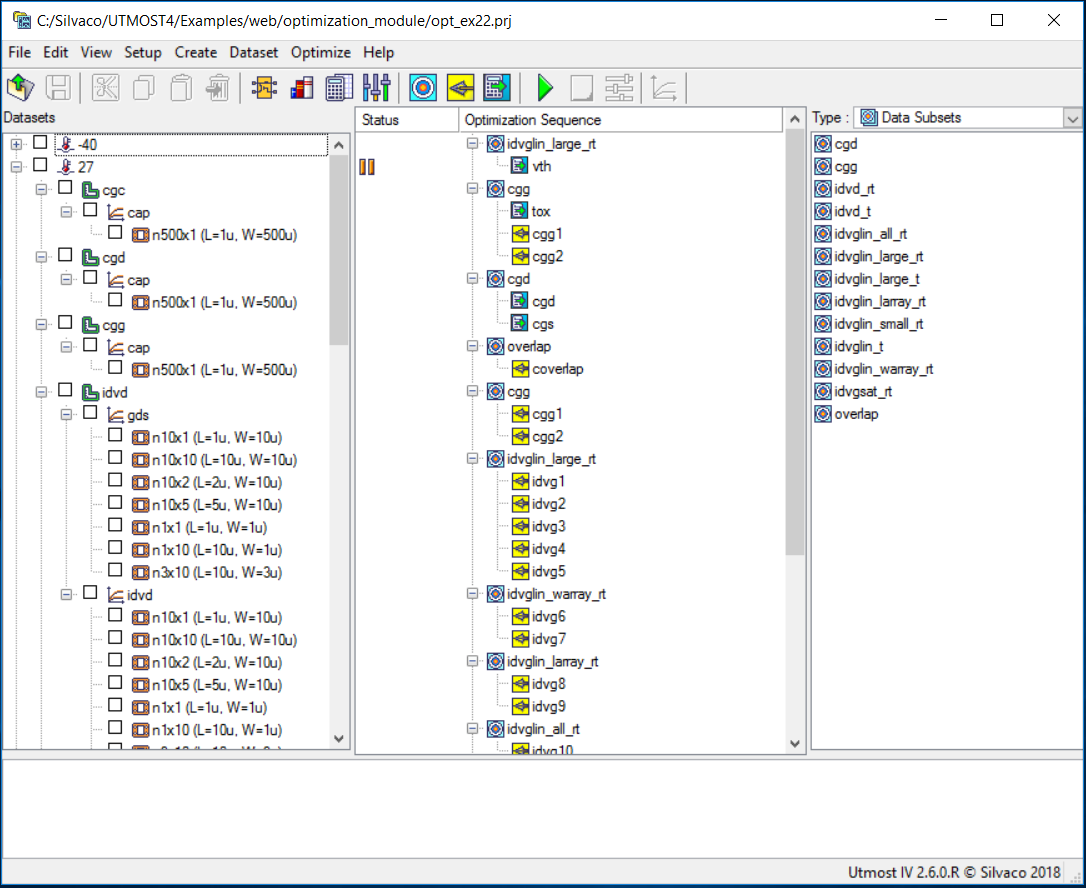

The project file opt_ex22.prj and the data file opt_ex22.uds for this example should be loaded into your database. When opened, the project will look as shown in opt_ex22_project.png .

The extraction and optimization sequence, which fully automates the extraction of this BSIM-BULK model, has fourteen sections. The objective of each section is to isolate a device characteristic and then to optimize only those model parameters which account for this device behavior.

Before starting the optimization sequence, the following device parameters are defined in the model library.

  • TOXE: Electrical oxide thickness
  • TNOM: Nominal room temperature

Section 1 : idvglin_large_rt

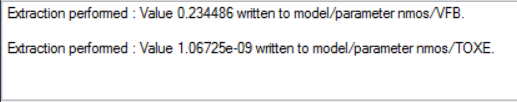

This section performs a preliminary extraction of the flatband voltage for the wide and long channel device, using the drain current versus gate voltage characteristic in the linear region and at room temperature. The extracted value is stored in the VFB model parameter, as shown in opt_ex22_01.png .

Section 2 : cgg

This section first performs a preliminary extraction of the oxide thickness based on Cgg versus gate voltage data. The extracted value is stored in the TOXE model parameter, as shown in opt_ex22_01.png .

Next, the following gate capacitance parameters are optimized using the same data:

  • TOXE Electrical oxide thickness
  • VFB Flat band voltage @Vb=0
  • NDEP Channel doping concentration @Vb=0

After this step has been completed, the fit to measured data will be as shown in opt_ex22_02.png .

Section 3 : cgd

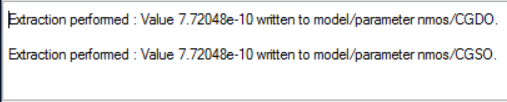

This section performs a preliminary extraction of the overlap capacitances using Cgd and Cgc versus gate voltage data. The extracted values are stored in the CGDO and CGSO model parameters, respectively, as shown in opt_ex22_03.png .

Section 4 : overlap

This section optimizes the overlap capacitance parameters using Cgd and Cgc versus gate voltage data. The following model parameters are optimized.

  • CGSO Non LDD region source-gate overlap capacitance per unit length
  • CGDO Non LDD region drain-gate overlap capacitance per unit length
  • CGSL Overlap capacitance between gate and LDD source region
  • CGDL Overlap capacitance between gate and LDD drain region
  • CKAPAS Gate-source overlap capacitance coefficient
  • CKAPAD Gate-drain overlap capacitance coefficient

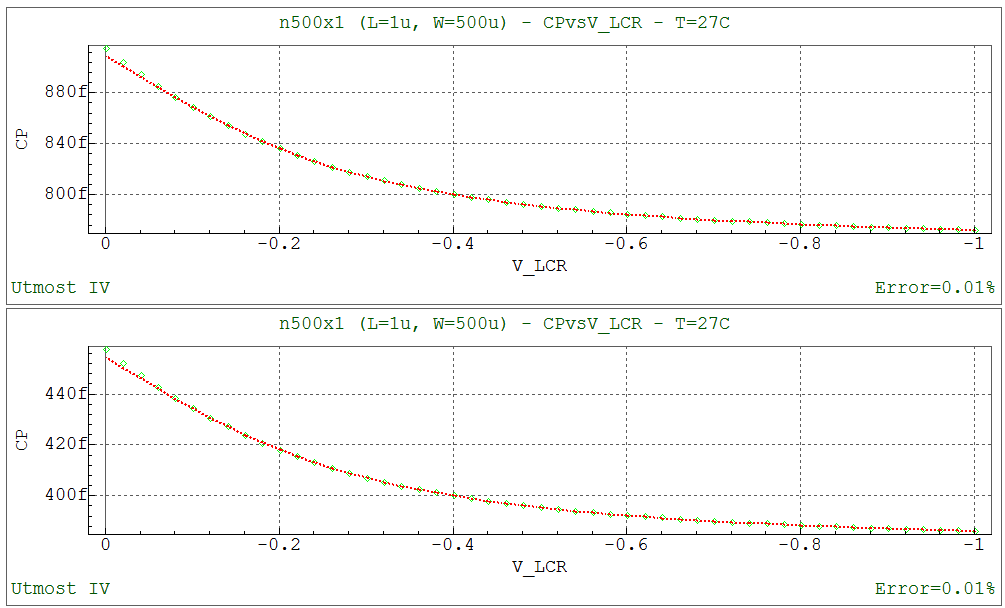

After this step has been completed, the fit to measured data will be as shown in opt_ex22_04.png .

Section 5 : cgg

This section refines the parameters previously extracted in section #2 using Cgg data. The following model parameters are optimized.

  • TOXE Electrical oxide thickness
  • VFB Flat band voltage @Vb=0
  • NDEP Channel doping concentration @Vb=0

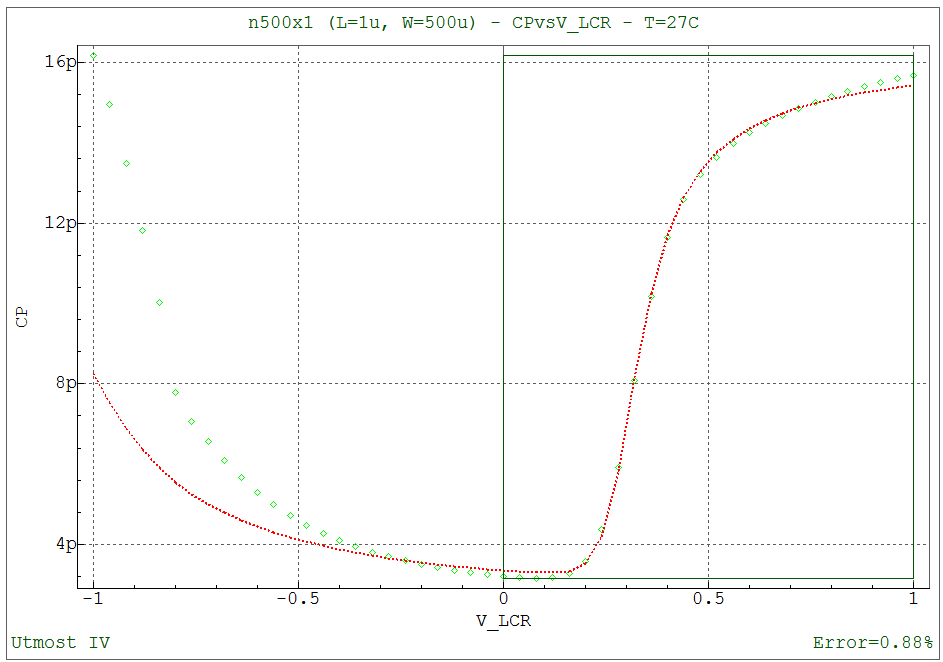

After this step has been completed, the fit to measured data will be as shown in opt_ex22_05.png .

Section 6 : idvglin_large_rt

This section optimizes the I-V parameters for wide and long channel devices. The data in this section is the drain current versus gate voltage characteristic in the linear region and at room temperature. The following model parameters are extracted.

  • VFB Flat band voltage @Vb=0
  • U0 Mobility at nominal temperature
  • UA First-order mobility degradation coefficient
  • EU Phonon / surface roughness scattering parameter
  • K1 First-order body effect coefficient
  • K2 Second-order body effect coefficient
  • UC Body-effect of mobility degradation coefficient
  • NFACTOR Subthreshold swing factor
  • NDEP Channel doping concentration @Vb=0
  • PHIN Non-uniform vertical doping effect parameter

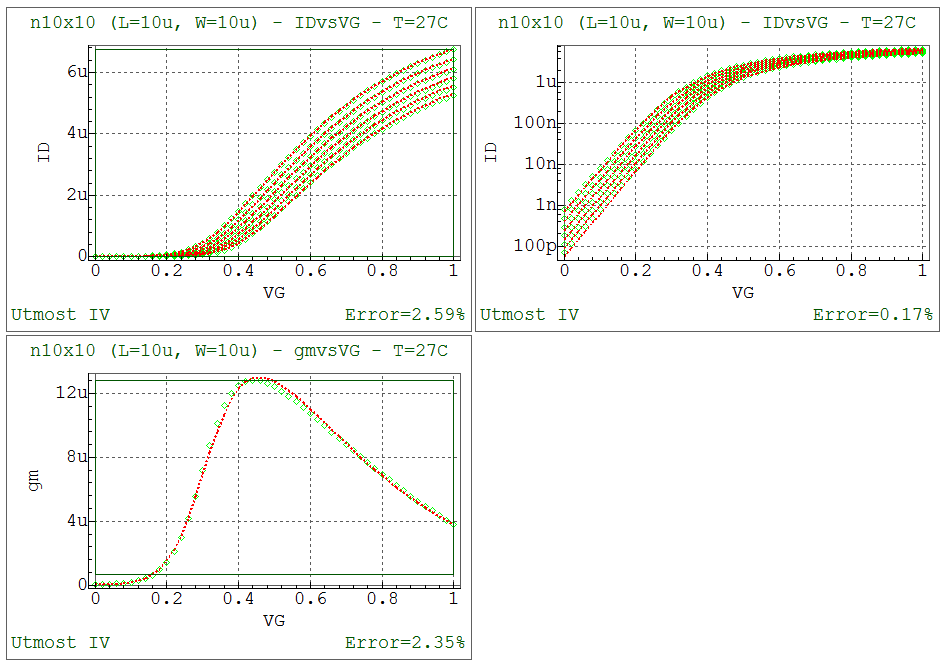

After this step has been completed, the fit to measured data will be as shown in opt_ex22_06.png .

Section 7 : idvglin_warray_rt

The narrow width parameters are now extracted using data from devices with various channel widths and with a long channel value. The following model parameters are extracted.

  • WINT Width offset fitting parameter form I-V without bias
  • NDEPW Width dependence of NDEP

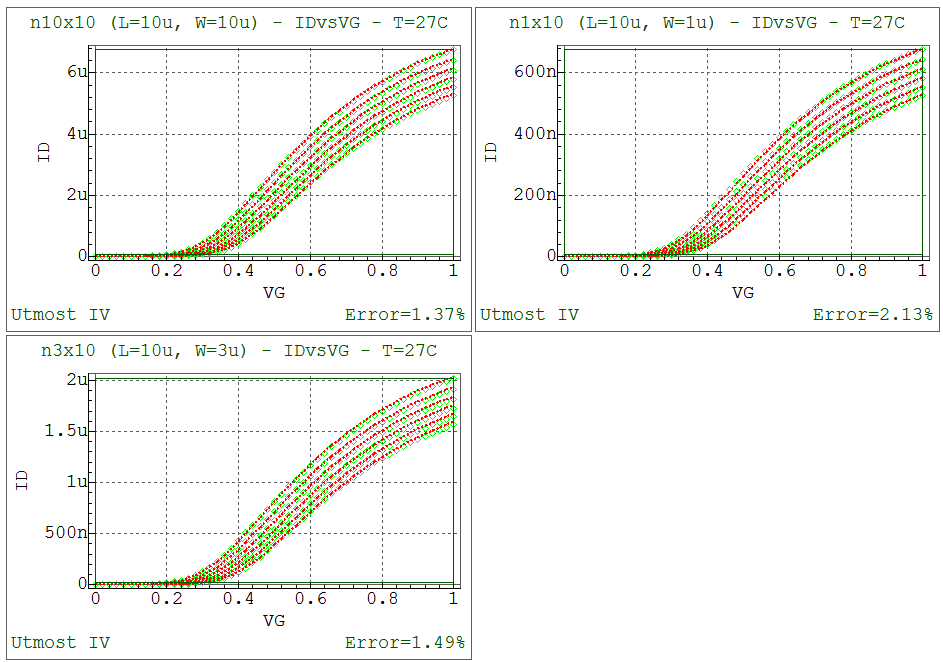

After this step has been completed, the fit to measured data will be as shown in opt_ex22_07.png .

Section 8: idvglin_larray_rt

In this section, the parameters for short channel effects are optimized using devices of multiple lengths and wide channel value. The following model parameters are extracted.

  • LINT Length offset fitting parameter form I-V without bias
  • NDEPL1 First length scaling coefficient of NDEP
  • NDEPLEXP1 First length scaling exponent of NDEP
  • RDSW Zero-bias LDD resistance per unit width (RDSMOD=0)
  • PRWG Gate bias coefficient of RDSW

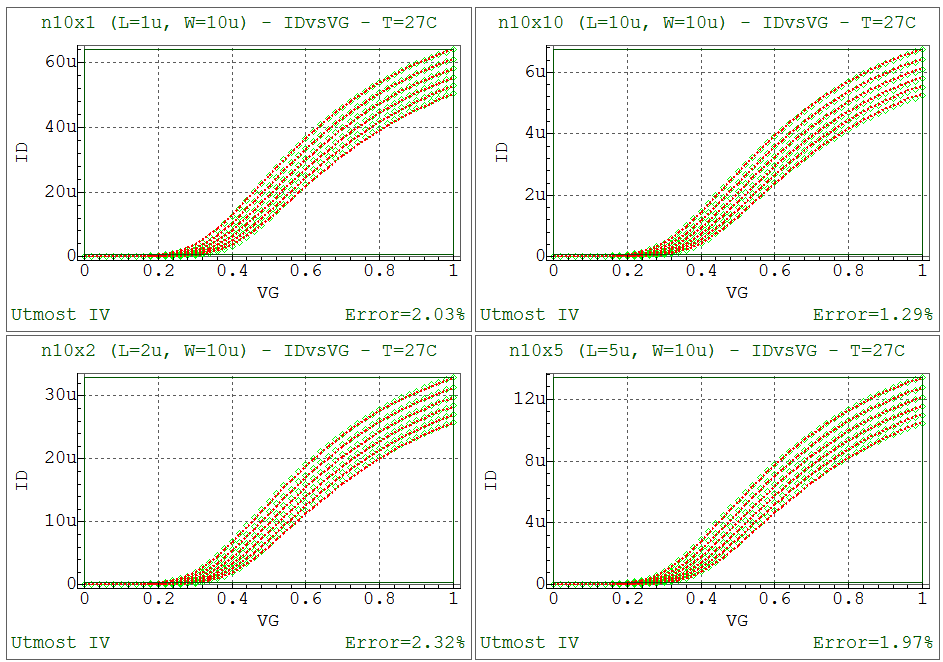

After this step has been completed, the fit to measured data will be as shown in opt_ex22_08.png .

Section 9 : idvglin_all_rt

This section refines the previously extracted I-V parameters using devices of multiple channel lengths and widths in the linear region and at room temperature ID-VG data.

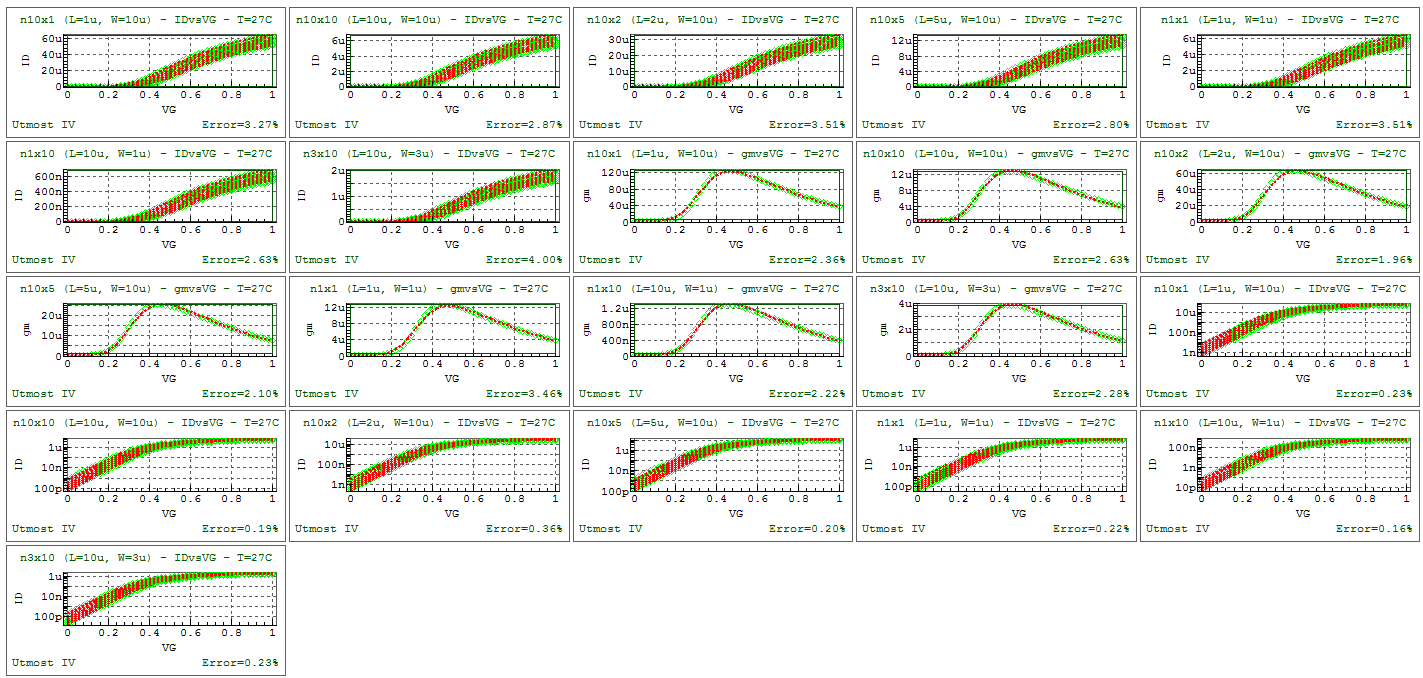

After this step has been completed, the fit to measured data will be as shown in opt_ex22_09.png .

Section 10: idvglin_large_t

This section extracts the model parameters for the large geometry drain current versus gate voltage linear temperature measurements. The following parameters are optimized.

  • KT1 Temperature coefficient for threshold voltage
  • KT2 Body-bias coefficient of the Vth temperature effect
  • UTE Mobility temperature exponent
  • UA1 Temperature coefficient for UA
  • UB1 Temperature coefficient for UB
  • UC1 Temperature coefficient for UC

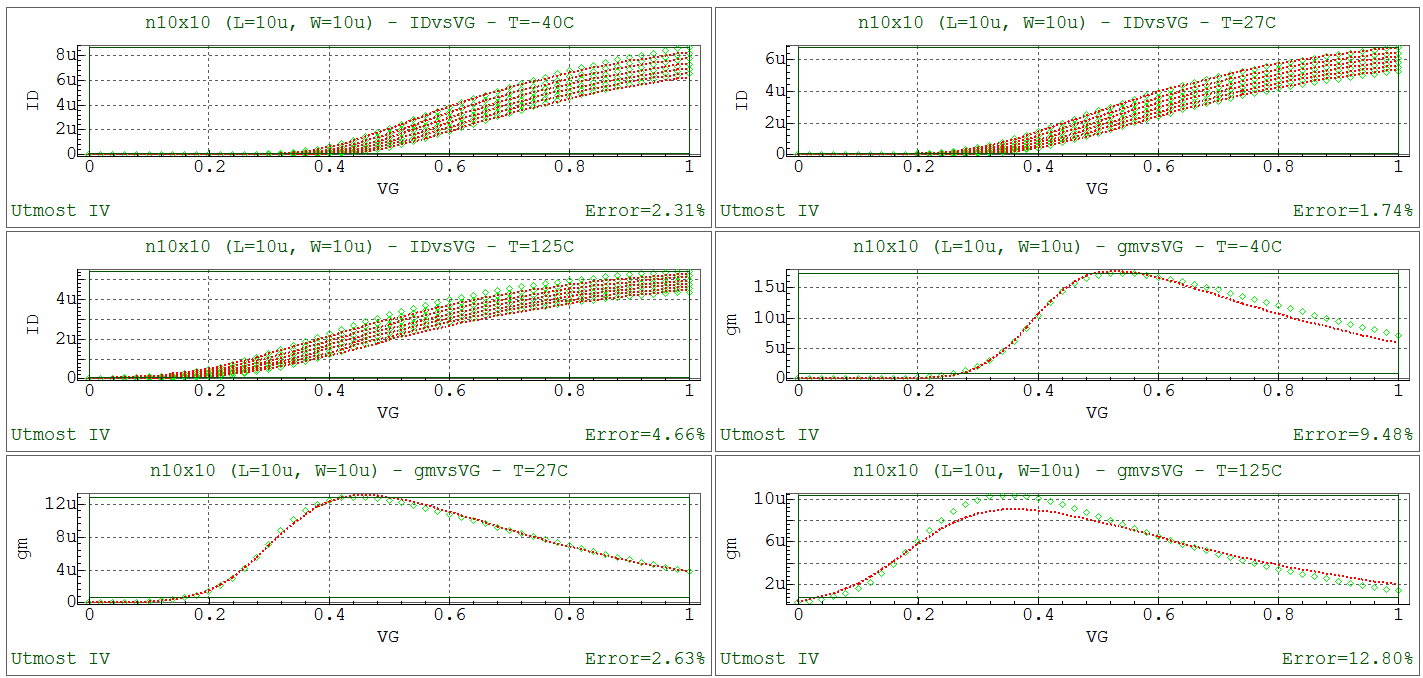

After this step has been completed, the fit to measured data will be as shown in opt_ex22_10.png .

Section 11 : idvglin_t

Now we select all of the device geometries at temperature for the linear drain current versus gate voltage characteristics and optimize the following parameters.

  • KT1L Channel length sensitivity of temperature coefficient for threshold voltage
  • PRT Temperature coefficient for RDSW
  • KT1 Temperature coefficient for threshold voltage
  • KT2 Body-bias coefficient of the Vth temperature effect
  • UTE Mobility temperature exponent
  • UA1 Temperature coefficient for UA
  • UB1 Temperature coefficient for UB
  • UC1 Temperature coefficient for UC

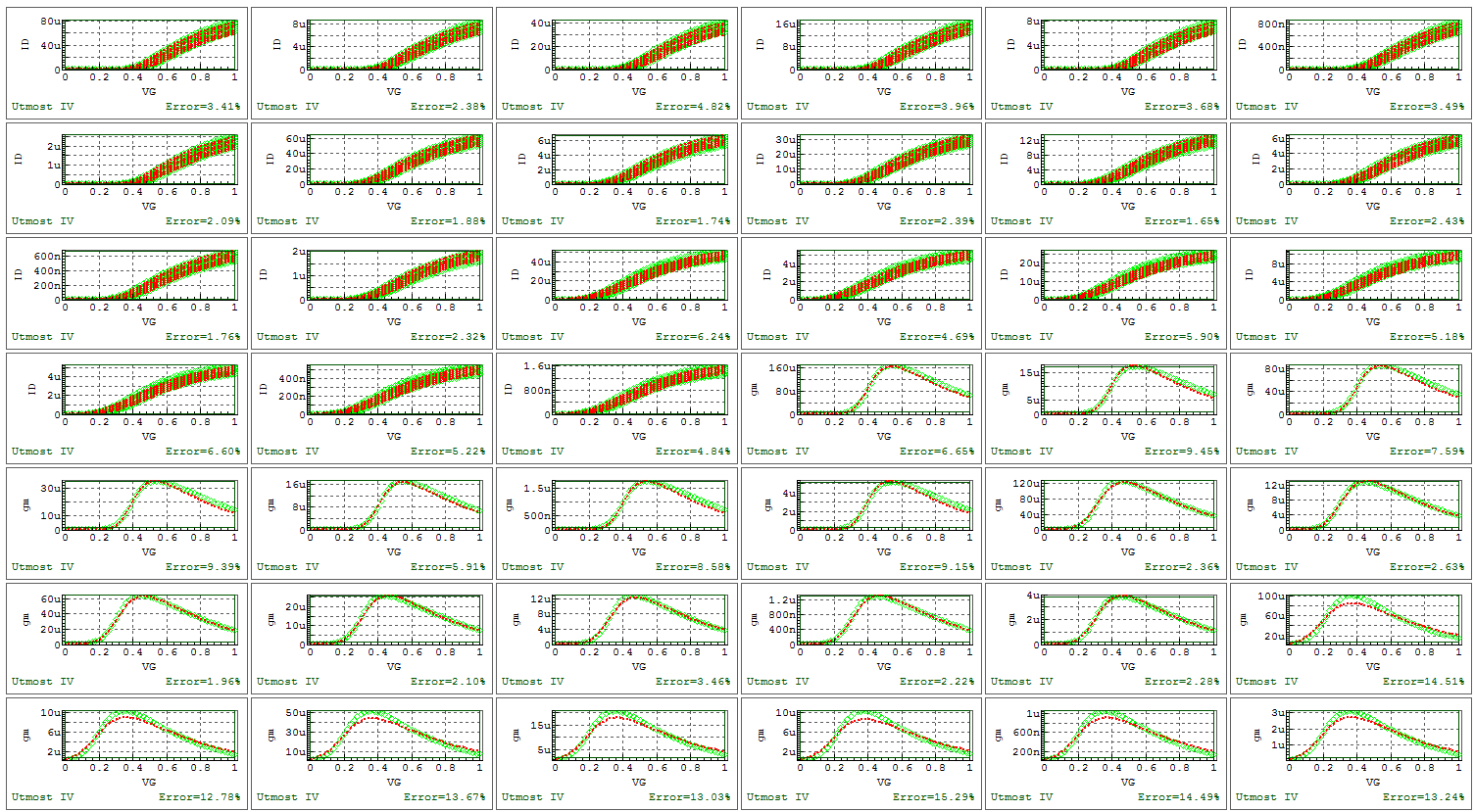

After this step has been completed, the fit to measured data will be as shown in opt_ex22_11.png .

Section 12 : idvd_rt

The first 11 sections concentrated only on the linear regions drain current versus gate voltage for each of the different geometries. This section will use the saturation region drain current and conductances versus drain voltage data for all device geometries. The following parameters are optimized.

  • A0 Bulk charge effect coefficient for channel length
  • AGS Gate bias coefficient of the bulk
  • VSAT Saturation velocity at nominal temperature
  • PCLM Channel length modulation parameter
  • DELTA Effective Vds parameter
  • PDIBLC1 First output resistance DIBL effect correction parameter
  • PDIBLC2 Second output resistance DIBL effect correction parameter
  • DROUT L dependence coefficient of the DIBL correction parameter in Rout
  • ETA0 DIBL coefficient in subthreshold region
  • DSUB DIBL exponent coefficient in subthreshold region
  • PVAG Gate dependence of Early voltage
  • PSCBE1 First substrate current body-effect parameter
  • PSCBE2 Second substrate current body-effect parameter

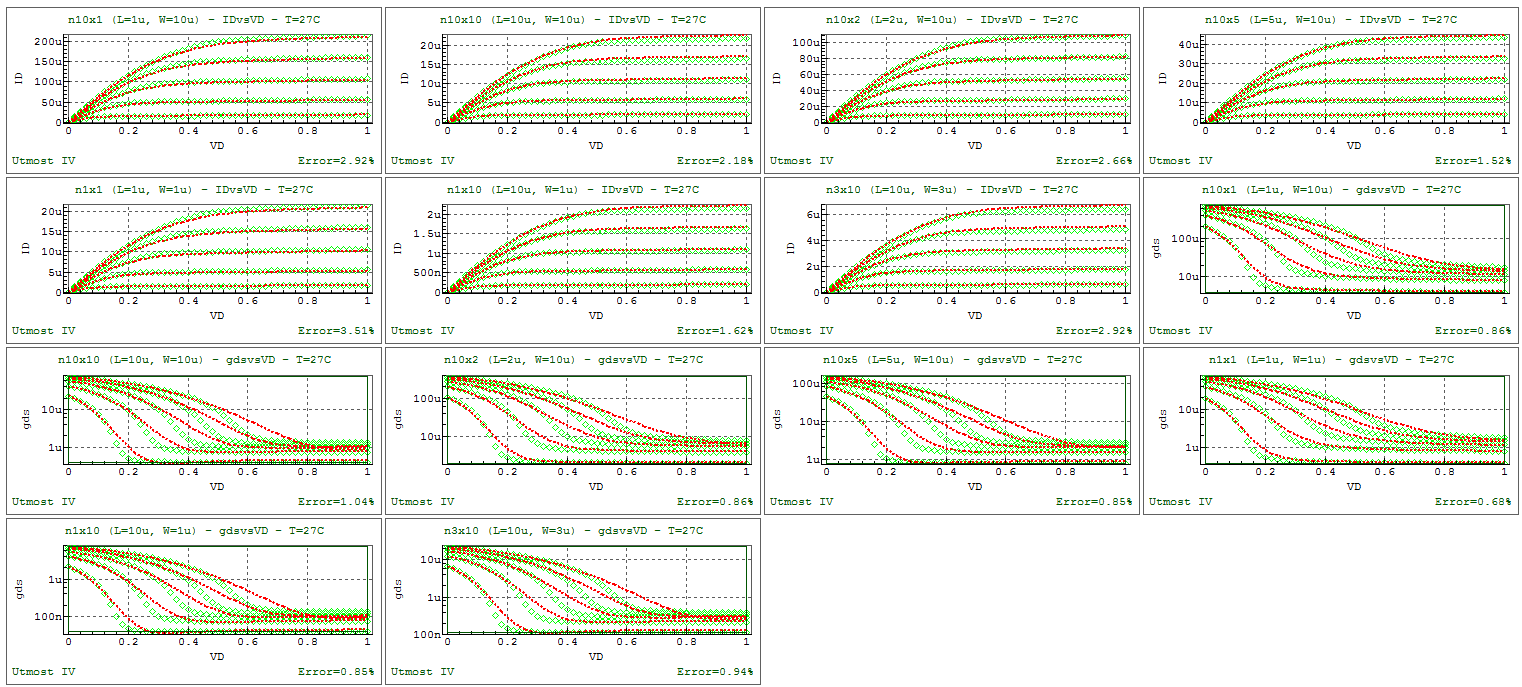

After this step has been completed, the fit to measured data will be as shown in opt_ex22_12.png .

Section 13 : idvgsat_rt

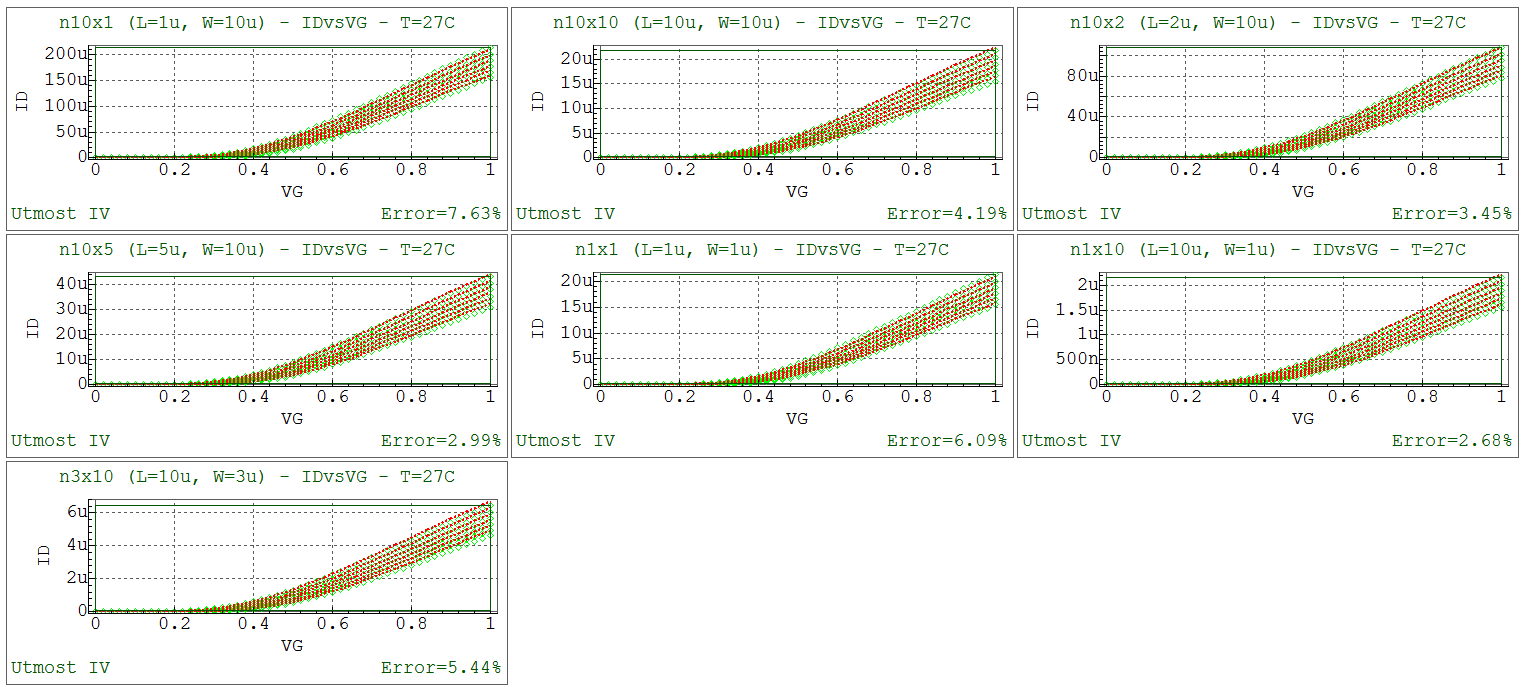

This section verifies the fitting of the saturation drain current versus gate voltage characteristics with back bias. No parameters need to be optimized. The fit to measured data will be as shown in opt_ex22_13.png .

Section 14 : idvd_t

This section will extract the parameters for the saturation drain current versus drain voltage characteristics versus temperature. The parameters to be optimized are as follows.

  • AT Temperature coefficient for saturation velocity

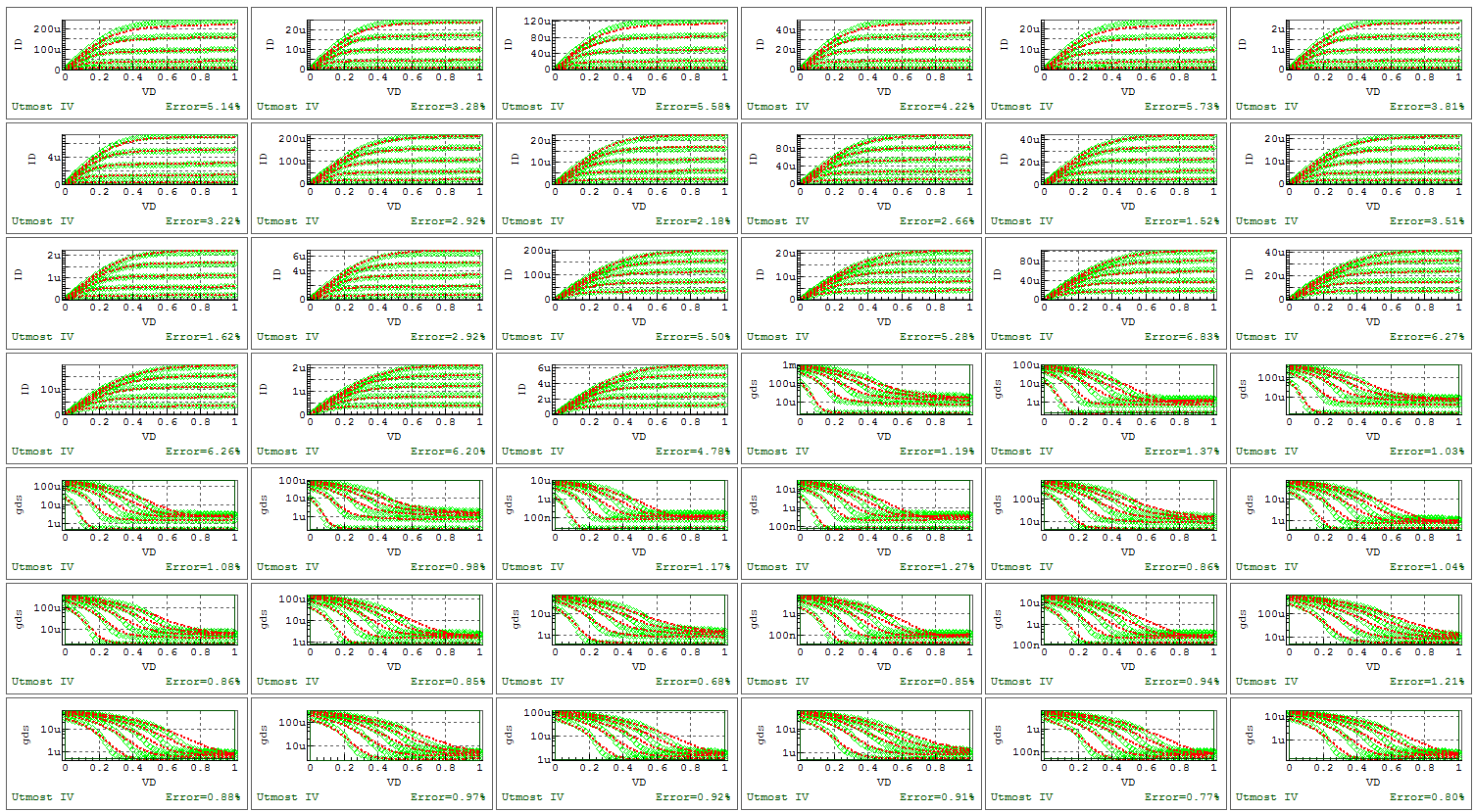

After this step has been completed, the fit to measured data will be as shown in opt_ex22_14.png .

When complete, the model card can then be exported into an external model library file as shown in the output file opt_ex22.lib.
