015_dot_net : NET analysis variations
Requires: SmartSpice & Smartview
Minimum Versions: SMARTSPICE 4.6.5.R

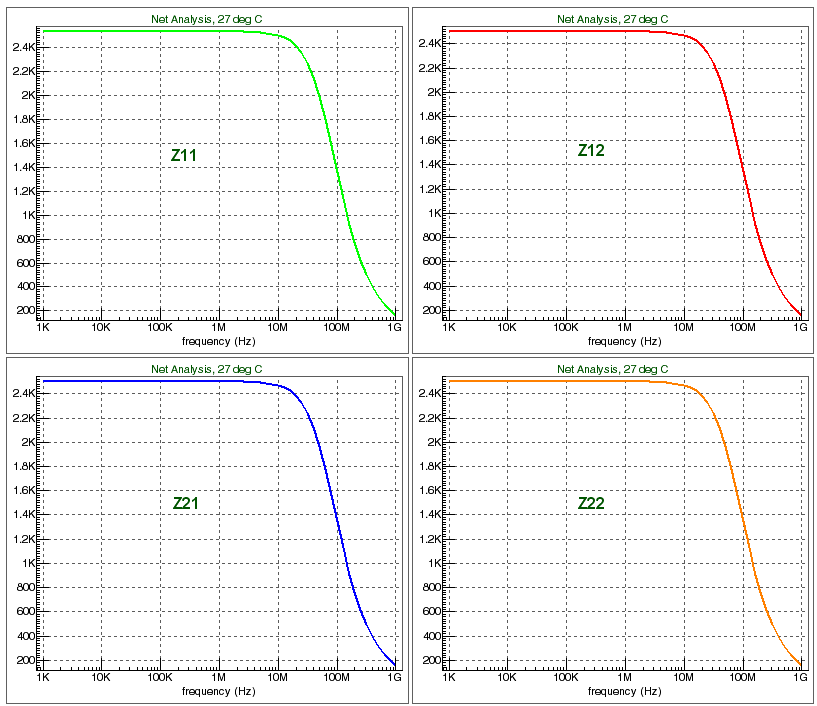

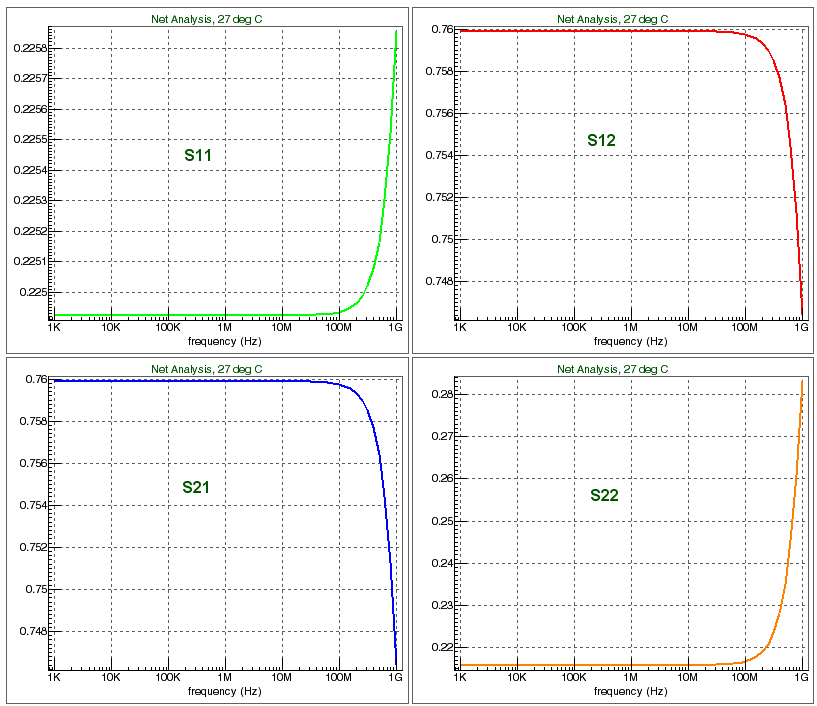

A simple .NET analysis is performed in input deck and rubberbanding c[cap] you can see the output response sensitivity to changes in the capacitance loading.
Input Files
rubberband_example_15.in
* Test Network analysis * Rubberband parameters: * c[cap] R B 0 2.5K C B 0 1PF RSIN A A1 1E-3 LIN A1 A2 10 VIN A2 0 DC 1.0 AC 0.1 IOUT B 0 DC 0 R0 A B 30 .NET V(A) IOUT DEC 10 1E3 1E9 .END
Graphics
