002_variation_sim : Monte-Carlo + Variation block
Requires: SmartSpice & Smartview
Minimum Versions: SMARTSPICE 3.16.12.R
SmartSpice uses a Variation block to calculate resistance values within the given specified Monte-Carlo device distribution.
The input deck is a SPICE file containing variation block definition and Monte-Carlo distribution for a simple set of resistors.

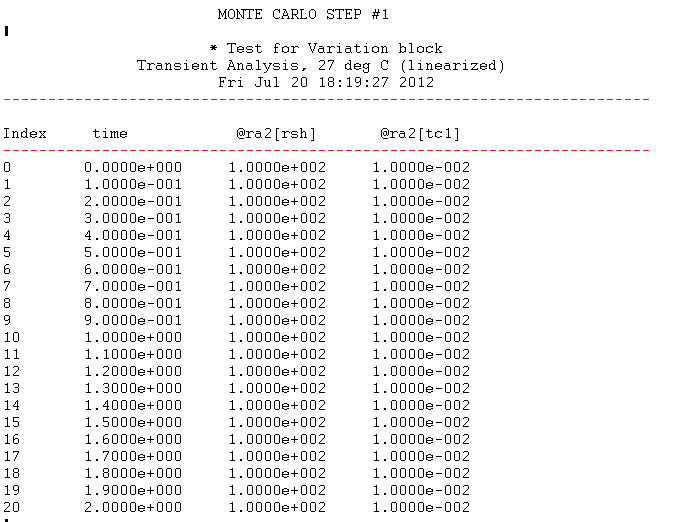

To run the simulation, Source the deck and press the green run button. When the simulation completes, the results are shown in SmartSpice log Window.

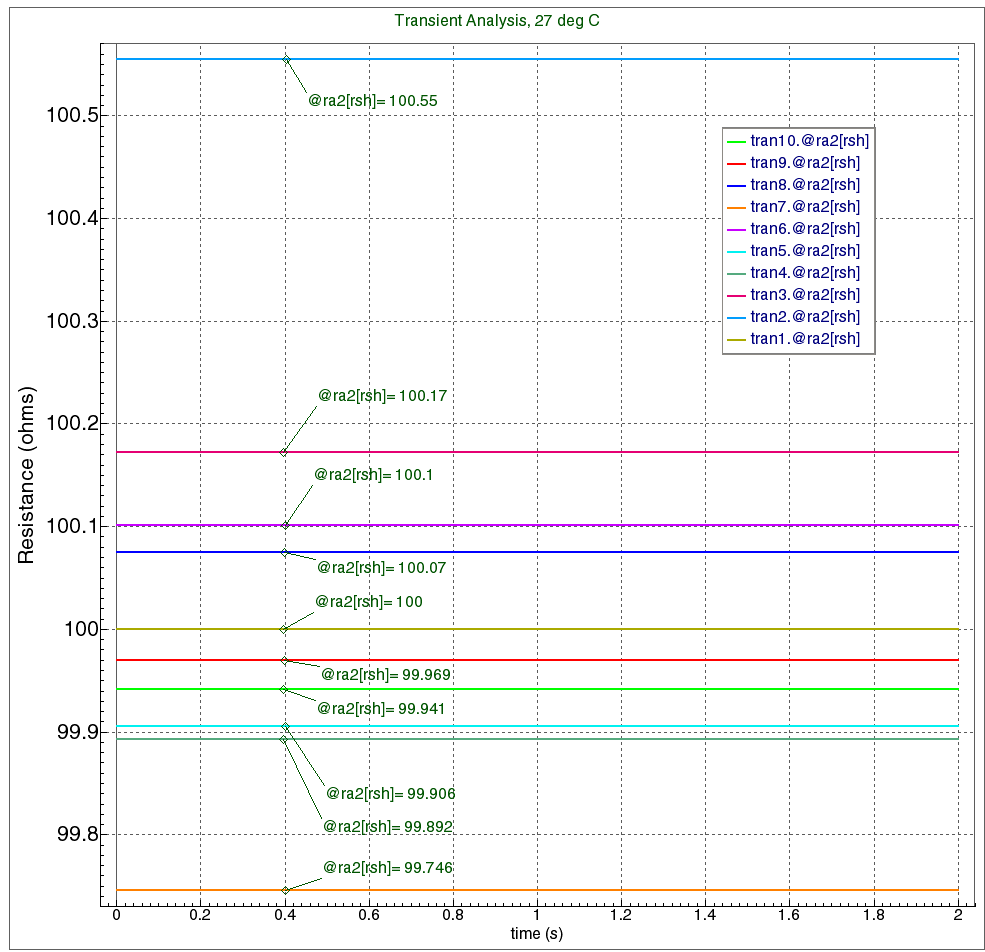

This shows the output variations (10) of the resistance "ra" values plot in Smartview where you see the changes.
Input Files
simple_Res_variation.in
* Monte-Carlo with Variation block
.options nomod nodeck
ra1 3 1 1k
rb1 3 2 1k
ra2 1 0 rpoly l=10u w=1u
rb2 2 0 rpoly l=10u w=1u
v1 3 0 DC 5
.model rpoly r rsh=100 tc1=0.01
.tran 0.1 2 monte=10
.print @ra2[rsh] @ra2[tc1] @rb2[rsh] @rb2[tc1]
.save v(1,2)
.variation
.global_variation
parameter random1=N()
R rpoly rsh=perturb('random1/3')
.end_global_variation
*
.local_variation
R rpoly tc1 ='25 + 1/3'
.end_local_variation
.end_variation
Graphics
