015_net_2_port : 2 Port analysis
Requires: SmartSpice & Smartview
Minimum Versions: SMARTSPICE 3.16.12.R
- .Net 2 port analysis on a passive circuit network.

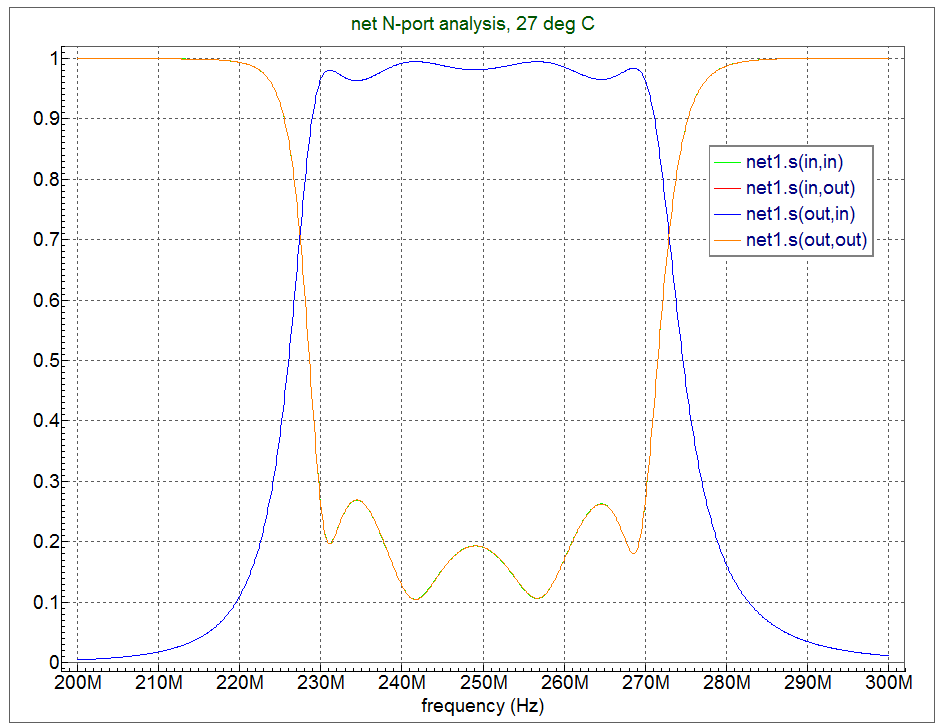

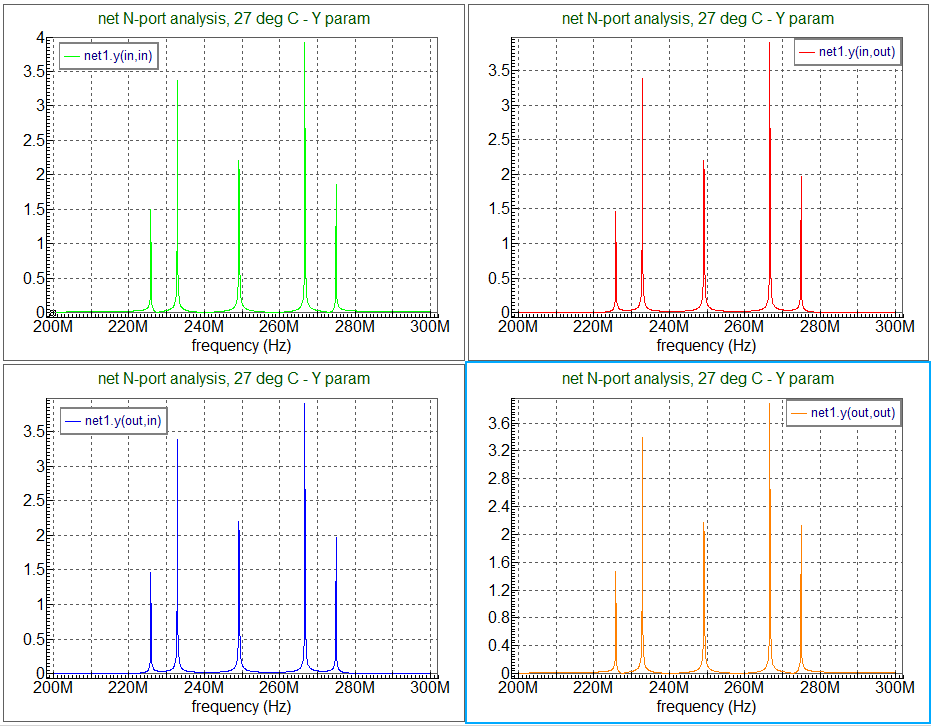

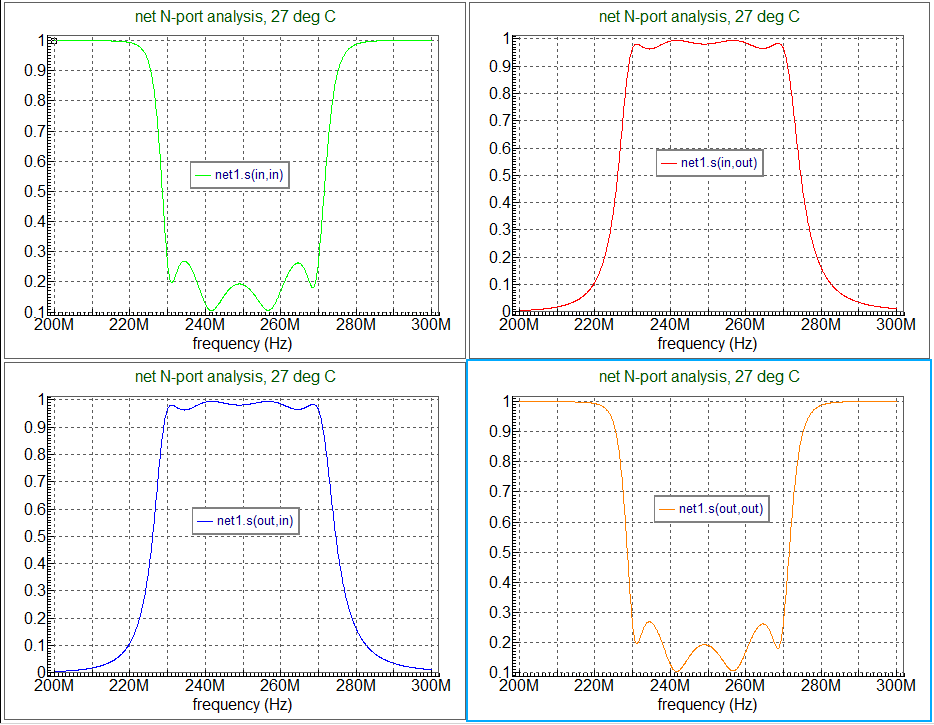

A 2 port network composed of passive elements is analysed with the .NET analysis. The analysis outputs both S, Y and Z parameter sets to show the frequency response both at the input and the output ports of this circuit.
Input Files
Port2_extractS_meas.in
* BAND PASS FILTER with z0=(50, 75) .options nomod .option DCSTEP=1 C1 IN 2 3.166pF L1 2 3 203nH C2 3 0 3.76pF C3 3 4 1.75pF C4 4 0 9.1pF L2 4 0 36.81nH C5 4 5 1.07pF C6 5 0 3.13pF L3 5 6 233.17nH C7 6 7 5.92pF C8 7 0 4.51pF C9 7 8 1.568pF C10 8 0 8.866pF L4 8 0 35.71nH C11 8 9 2.06pF C12 9 0 4.3pF L5 9 10 200.97nH C13 10 OUT 2.97pF RX OUT 0 1.e+14 .AC LIN 1001 200meg 300meg .NET N=2 IN OUT 0 z0=(50, 75) .MEASURE NET y11max MAX ym(in,in) .MEASURE NET y12max MAX ym(in,out) .MEASURE NET y21max MAX ym(out,in) .MEASURE NET y22max MAX ym(out,out) .MEASURE NET y11phmax MAX yp(in,in) .MEASURE NET y12phmax MAX yp(in,out) .MEASURE NET y21phmax MAX yp(out,in) .MEASURE NET y22phmax MAX yp(out,out) .MEASURE NET s11rmax MAX sr(in,in) .MEASURE NET s12rmax MAX sr(in,out) .MEASURE NET s21rmax MAX sr(out,in) .MEASURE NET s22rmax MAX sr(out,out) .MEASURE NET s11imax MAX si(in,in) .MEASURE NET s12imax MAX si(in,out) .MEASURE NET s21imax MAX si(out,in) .MEASURE NET s22imax MAX si(out,out) .MEASURE NET z11max MAX zm(in,in) .MEASURE NET z12max MAX zm(in,out) .MEASURE NET z21max MAX zm(out,in) .MEASURE NET z22max MAX zm(out,out) .MEASURE NET z11phmax MAX zp(in,in) .MEASURE NET z12phmax MAX zp(in,out) .MEASURE NET z21phmax MAX zp(out,in) .MEASURE NET z22phmax MAX zp(out,out) .END

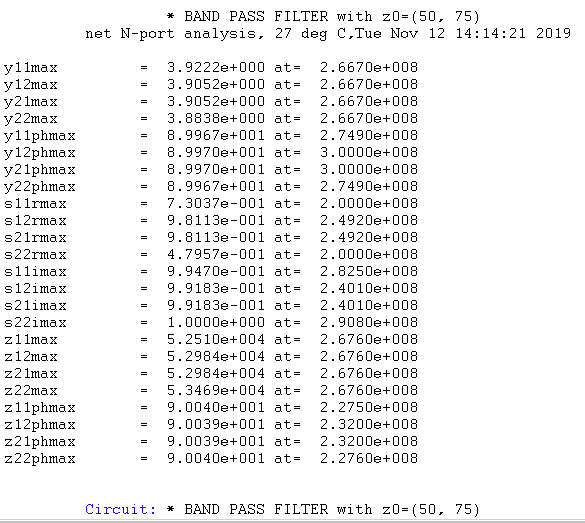

Port2_extractS_meas.measure.raw0
Title: * BAND PASS FILTER with z0=(50, 75) Input deck file name: U:\smartspice_web\analysis\015_net_2_port\Port2_extractS_meas.in Date: Tue Nov 12 14:14:21 2019 Plotname: Measure Plot Temperature: 0 Sweepvar: y11max Sweepmode: 0 Flags: real padded No. Variables: 24 No. Points: 1 Source: SmartSpice,Platform:0 Version: 4.38.1.R Variables: 0 y11max notype 1 y12max notype 2 y21max notype 3 y22max notype 4 y11phmax notype 5 y12phmax notype 6 y21phmax notype 7 y22phmax notype 8 s11rmax notype 9 s12rmax notype 10 s21rmax notype 11 s22rmax notype 12 s11imax notype 13 s12imax notype 14 s21imax notype 15 s22imax notype 16 z11max notype 17 z12max notype 18 z21max notype 19 z22max notype 20 z11phmax notype 21 z12phmax notype 22 z21phmax notype 23 z22phmax notype Values: 0 3.922249997370279e+000 3.905153197890023e+000 3.905153197893499e+000 3.883824311882483e+000 8.996682828116040e+001 8.996960364775896e+001 8.996960357176792e+001 8.996682819823023e+001 7.303662512047671e-001 9.811302638298315e-001 9.811302638288993e-001 4.795734177920166e-001 9.946956391141715e-001 9.918306943326992e-001 9.918306942985925e-001 1.000036163536035e+000 5.251035580556564e+004 5.298358100081049e+004 5.298358100085706e+004 5.346920984873140e+004 9.004008309393051e+001 9.003930573020352e+001 9.003930563193921e+001 9.004006558804343e+001

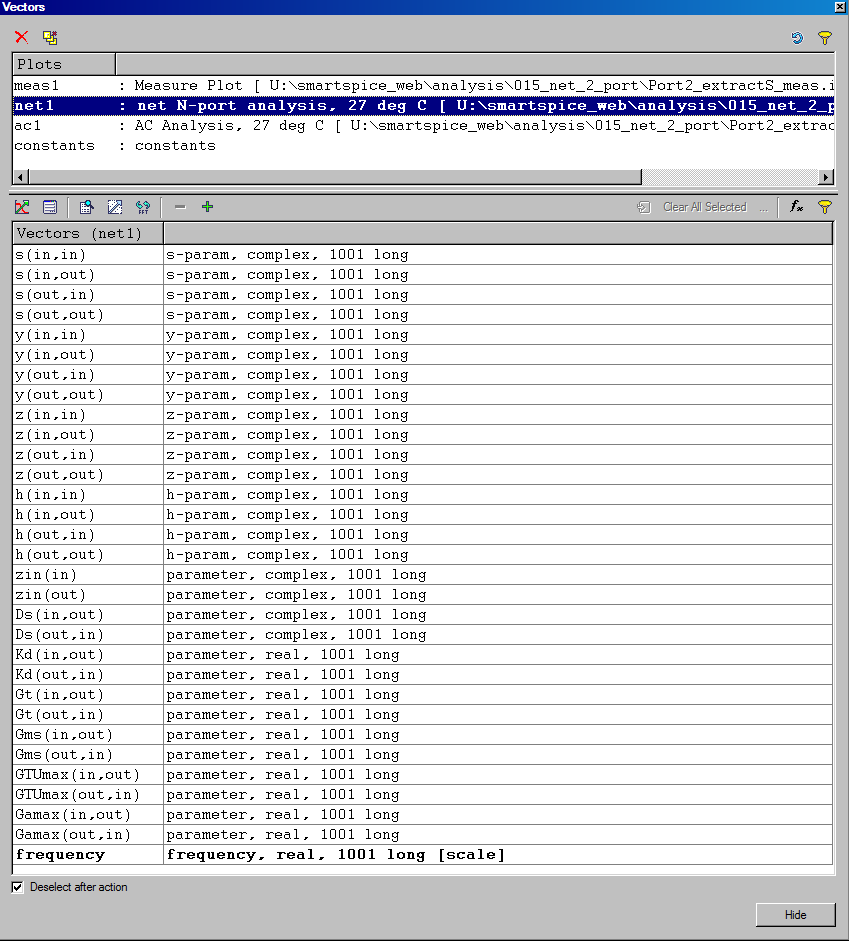

Graphics
