002_biaschk3 : Bias checking of device
Requires: SmartSpice & Smartview
Minimum Versions: SMARTSPICE 3.16.12.R
The .BIASCHK3 statement is intended to track and report the maximum duration time (dt) when the voltage difference between the specified device nodes or subcircuit terminals is larger than the user-defined reference voltage. It provides syntax to check specified terminals of chosen devices and subcircuits by specifying subcircuit names, hierarchy xcalls, device names, device types and device model names.
This example input deckshows how to use the ".biaschk3" statement to detect and report the maximum time duration when the monitored bias voltage is out of range. This algorithm is based on a simple criterion:
- the "out-of-range" condition is defined by |Vbias| > |Vref|. The value of the user-defined reference voltage Vref must be specified in the .BIASCHK3 statement.
Statements:
- .biaschk3 vref=2.0 devterminals="ncx nei" devices=x1.x1.x8.q5
- .biaschk3 vref=2.0 devterminals="nci nbi" devices=x1.x2.x8.q5
- .biaschk3 vref=2.0 devterminals="nplusp nminus" devices=x1.x2.x8.d3

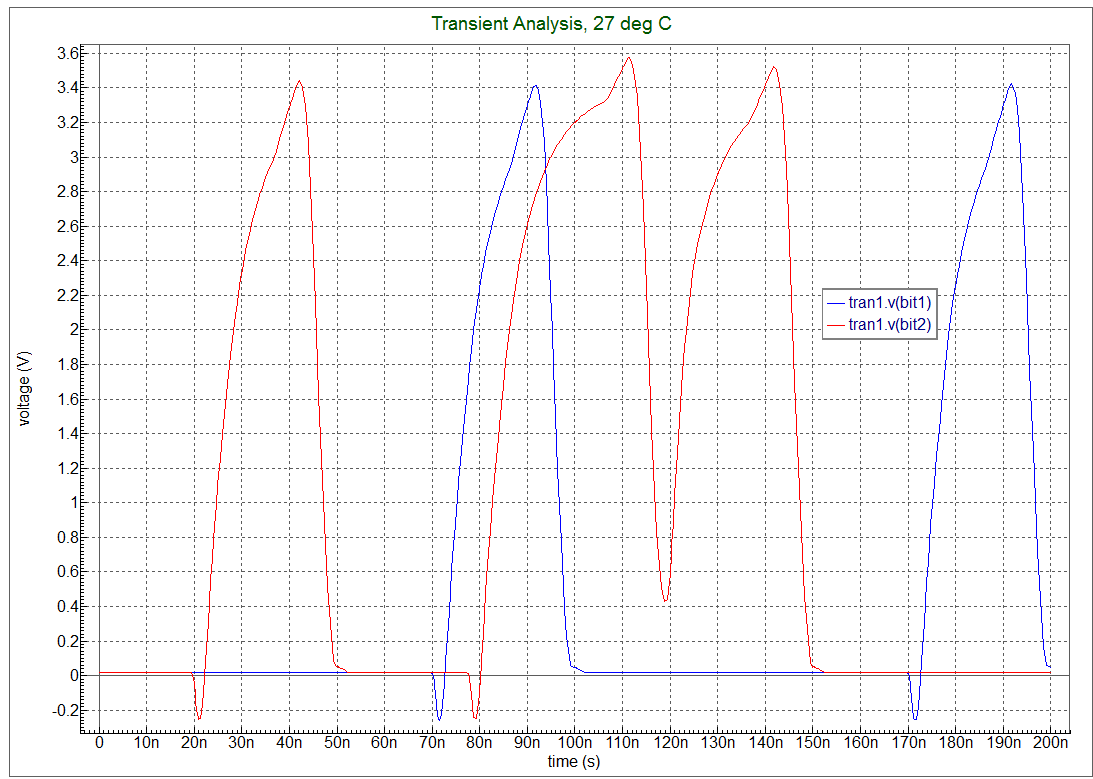

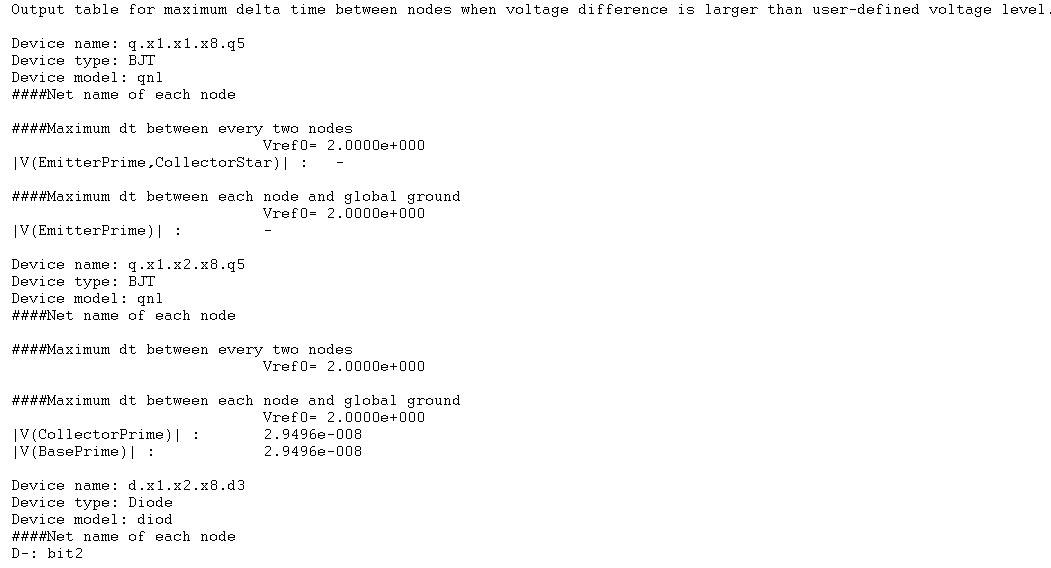

Output: The waveforms show the simulated waveforms and the output table shows maximum delta time between nodes when voltage difference is larger than user-defined voltage level. Output log window shows part of (pngview) log_info.png information available in the log window for all the detected cases.
For full description, see the SmartSpice User's manual section 3.13 .BIASCHK3.
B3_BJT_DIO_Device.in
* EXAMPLE: TWO-BIT BJT ADDER AND .BIASCHK3 statement * .GLOBAL VCC .SUBCKT NAND 1 2 3 Q1 9 5 1 QNL Q2 9 5 2 QNL Q3 6 9 8 QNL Q4 7 6 10 QNL Q5 3 8 0 QNL D1 0 1 DIOD D2 0 2 DIOD D3 10 3 DIOD R1 VCC 5 4K R2 VCC 6 1.6K R3 8 0 1K R4 VCC 7 130 .ENDS NAND ************* INA INB CIN OUT COUT .SUBCKT ONEBIT 1 2 3 4 5 X1 1 2 7 NAND X2 1 7 8 NAND X3 2 7 9 NAND X4 8 9 10 NAND X5 3 10 11 NAND X6 3 11 12 NAND X7 10 11 13 NAND X8 12 13 4 NAND X9 11 7 5 NAND .ENDS ONEBIT .SUBCKT TWOBIT INA1 INB1 INA2 INB2 BIT1 BIT2 CIN COUT X1 INA1 INB1 CIN BIT1 10 ONEBIT X2 INA2 INB2 10 BIT2 COUT ONEBIT .ENDS TWOBIT VINA1 1 0 PULSE( 0 3 0 10NS 10NS 10NS 50NS) VINB1 2 0 PULSE( 0 3 0 10NS 10NS 20NS 100NS) VINA2 3 0 PULSE( 0 3 0 10NS 10NS 40NS 200NS) VINB2 4 0 PULSE( 0 3 0 10NS 10NS 80NS 400NS) X1 1 2 3 4 BIT1 BIT2 0 COUT TWOBIT RB1 BIT1 0 1K RB2 BIT2 0 1K RCOUT COUT 0 1K VCC VCC 0 DC 5 .MODEL QNL NPN(BF=75 RB=100 CJE=1PF CJC=3PF) .MODEL DIOD D .TRAN 1NS 200NS .SAVE V(BIT1) V(BIT2) .OPTIONS RELTOL=0.001 NOMOD .biaschk3 vref=2.0 devterminals="ncx nei" devices=x1.x1.x8.q5 .biaschk3 vref=2.0 devterminals="nci nbi" devices=x1.x2.x8.q5 .biaschk3 vref=2.0 devterminals="nplusp nminus" devices=x1.x2.x8.d3 .END
002_biaschk3
