005_AM_Source : Amplitude Modulated Source
Minimum Versions: SmartSpice 4.6.5.R
The input deck shows how you can setup a single voltage source element to have a Amplitude Modulated sinewave output.

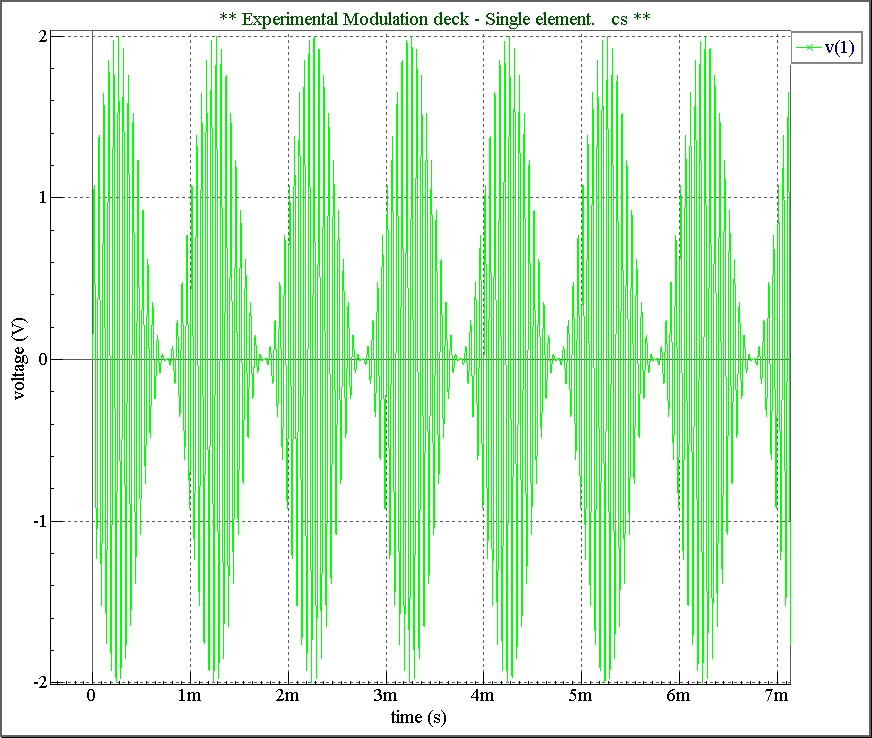

A plot of the waveform shows the low-frequency modulation of the higher frequency sinewave signal. The example facilitates how you can study bursts of a signal into your circuit and the circuit's subsequent recovery/stability.
Input Files
AM_mod_2.in
** Experimental Modulation deck - Single element. cs ** .param fm =20K V1 1 0 am(1 1 1k FM 0) R1 1 0 1 .tran .05U 50m ;sweep fm 5k 20k 5k .fft v(1) np=4096 .option fft_accurate .end
Graphics
