04 : Hipex Parasitic RC Extraction Example (Hipex-RC)

Minimum Required Versions: Expert 5.2204.3.R, Hipex 3.8.7.R

This example demonstrates running Hipex Parasitic RC Extraction on a layout in the Expert interactive layout environment

1: Setting up Hipex-RC in Expert

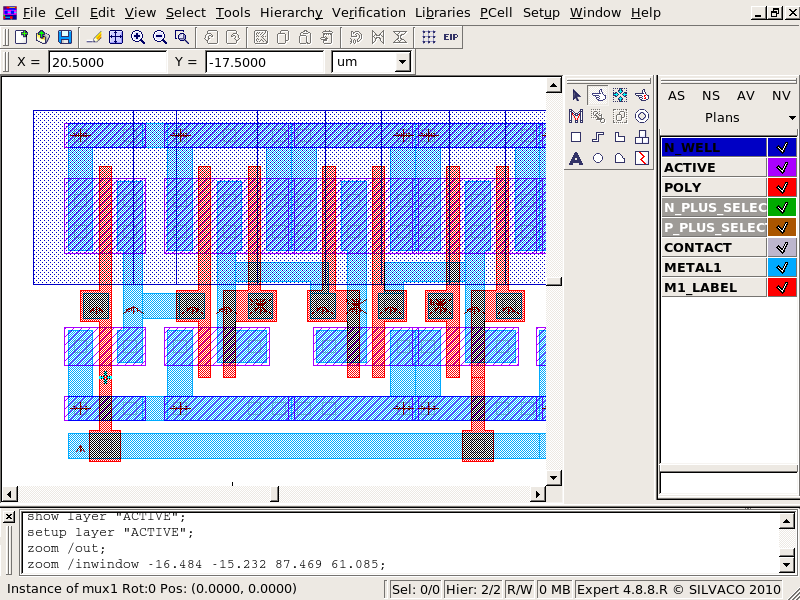

First start the Expert layout editor program, either with the command expert or by clicking the expert icon. From the main menu bar at the top, click File --> Open to pop up the Load Project menu, navigate to the directory into which the hipex_ex04.eld design database file was downloaded and Open it. This will call up the Open Cell(s) menus, and here double-click mux4 , the top-level cell. By default this shows the hierarchical view of the design; you can see the full details by clicking View --> Cell View --> Flat ( figure1 )

The next step is to load the required Hipex technology files and change any settings to customize the extraction. From the main Expert menu, click Verification --> Extraction --> Setup ; this pops up the Layout Parameter Extraction Setup panel. The pages within this panel are accessed using the menu on the left (see figure2 with Technology page shown).

The first page Layout shows the Database file and Top cell; by default these are set to the currently open database and cell. The second page, Node Names , controls how instance and net names are derived. Specifying Global node names (eg, VSS for Ground) will cause those names to be declared as *.GLOBAL in the extracted netlist.

The fourth page, Cell Explosion , controls the extraction of the design hierarchy. The default is to EXPLODE all cells, which has the effect of producing a flat netlist in this simple example; to create a fully hierarchical netlist, click Set all --> Hcell.

The fifth page, Netlisting, controls the details of the extracted netlists and parasitic files which will be generated. Default filenames for all the possible types of output are generated based of the current design/cell; you can change these and/or set options, for example to output the source/drain areas/perimeter or set a threshold on parasitic capacitances to be shown. Note that this page only controls the details of the output; if does not enable or initiate the actual generation of the output files; this is done at a later stage.

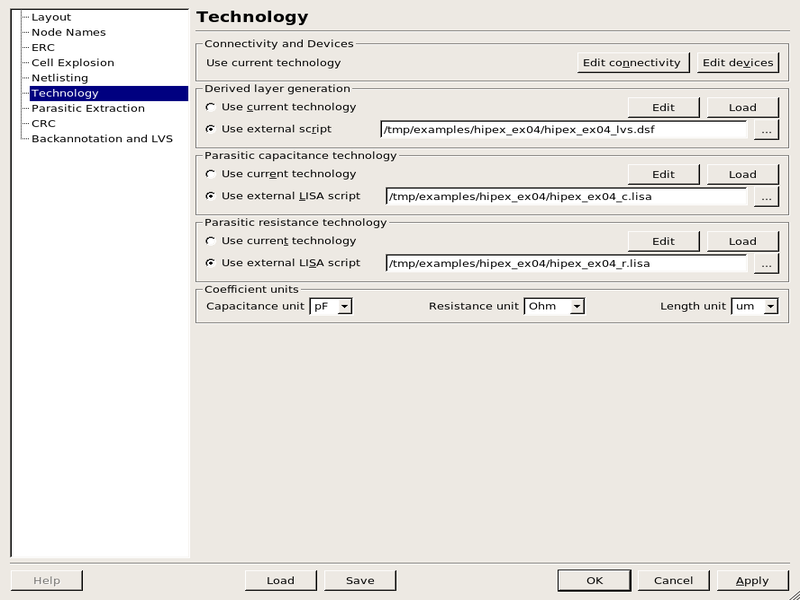

The sixth page, Technology , is where you need to specify the technology files for the extractions. For Derived layer generation , select Use external script and use the file browser to specify the hipex_ex04_lvs.dsf file previously downloaded. This file controls the generation of device recognition layers from the drawn/mask layers.

For a parasitic RC extraction, you must select Use external LISA script in the Parasitic capacitance technology and Parasitic resistance technology sections and use the file browser to specify, respectively, the hipex_ex04_c.lisa and hipex_ex04_r.lisa files previously downloaded.

The seventh page, Parasitic Extraction provides more advanced settings. For parasitic resistance extraction it allows you to specify a resistance serial merge threshold to prevent the listing of tiny resistors in the netlist. Any parasitic resistor of smaller value than the threshold will merge with a neighboring resistor if possible. Additionally the user can specify that parasitic resistors for power nets be ignored (Ignore power node).

When you have completed all required pages, click OK in the Layout Parameter Extraction Setup Panel

2: Hipex Parasitic RC Extraction

The netlist extraction can now be run, with Verification --> Extraction --> Hipex-Net --> Run from the main Expert window. This step is necessary even if only the parasitics are required, because the full connectivity must first be extracted to identify all the nodes.

After the netlist extraction has been done, it is now possible to continue to parasitic RC extraction. This is run in almost exactly the same way as the Hipex-Net extraction with the commands from the main Expert window: Verification --> Extraction --> Hipex-RC --> Run

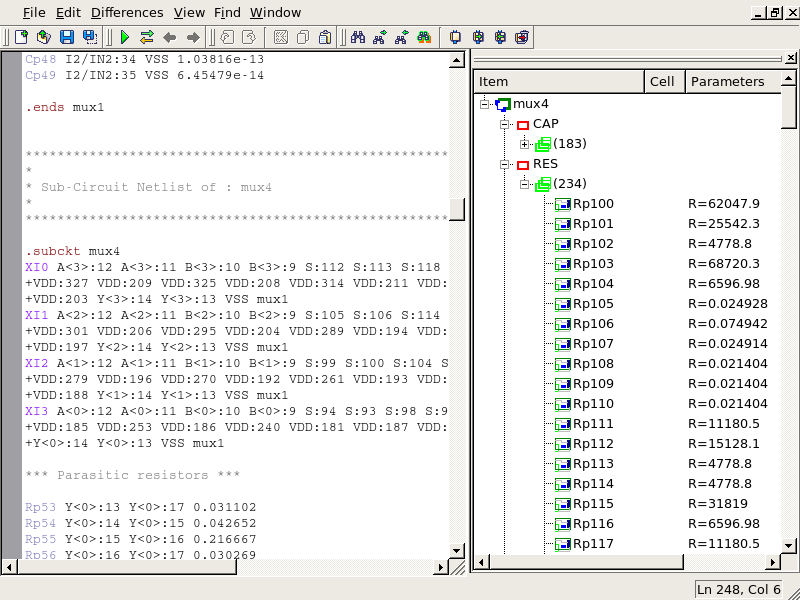

When the netlist extraction has completed a window will popup, inviting you to Close , Open Netlist or Show Detail (ie. Show the run log). The Open Netlist editor window shows both the text netlist (on the left) and a hierarchy display (on the right). These are linked; clicking on a device in the hierarchy display will highlight the corresponding item in the text netlist. It is also linked to the layout, so clicking on the item in the hierarchy display will also jump to the relevant cell in the Expert layout editor ( figure3 ).

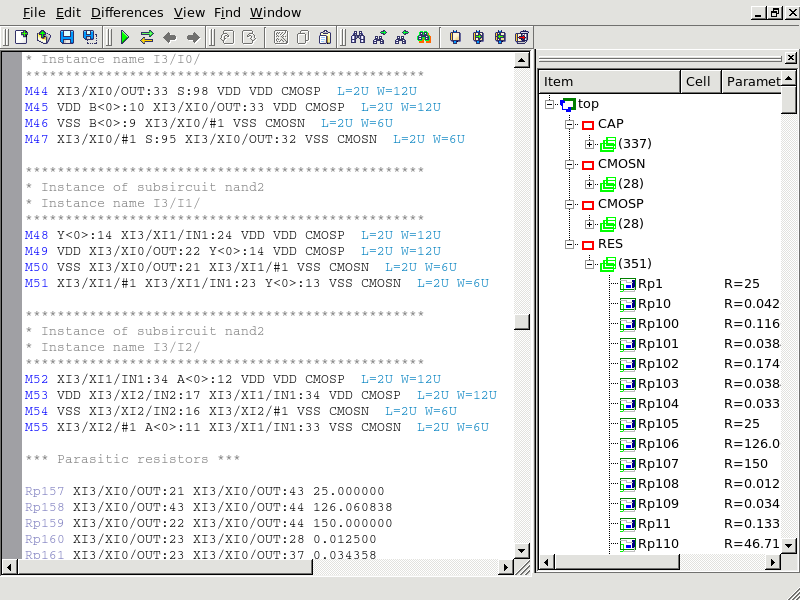

As with the plain netlist extraction, you can go back into the Verification --> Extraction --> Netlister menu and create other types of netlists, including flat netlists from the hierarchical databases: Verification --> Extraction --> Netlister --> RC Flat Spice Netlist ( figure4 ).

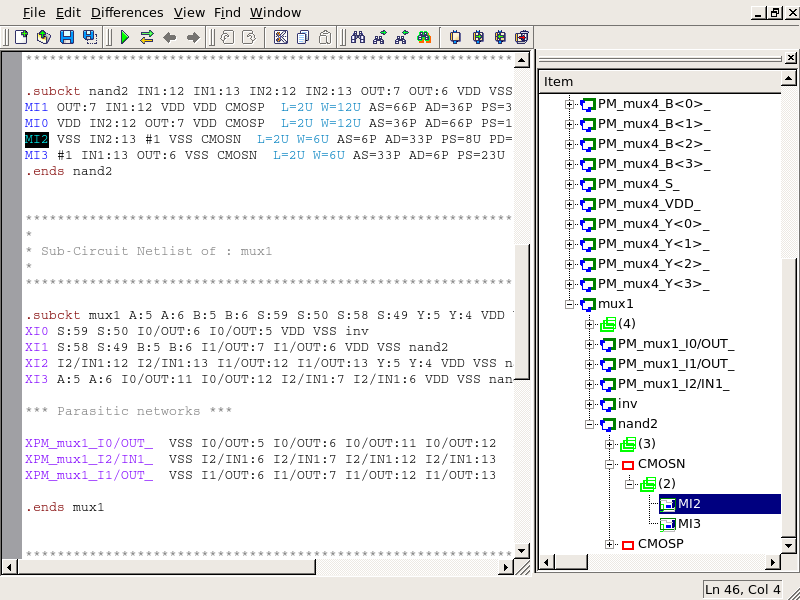

Another option is to select Output parasitic net models in the Netlisting control page. This causes the parasitics to be output as separate subcircuits in separate files, which can improve the readability of the netlists for large circuits with a lot of parasitics ( figure5 ).
