11 : Using Built-in Reduction for Distributed Parasitic RC Networks
Minimum Required Versions: Expert 5.2204.3.R, Hipex 3.8.7.R
Generally, a parasitic RC netlist contains much more devices than the original netlist without the parasitic RCs elements. This leads to large netlist and longer simulation time of the post-layout simulation.
To reduce the number of parasitic devices and the processing time of the post- layout simulation, Hipex-RC has a built-in RC reduction tool. It has a couple of modes as follows:
- Scattering Parameter Macromodels
- Time Domain Reduction
The actual operation steps are as follows:

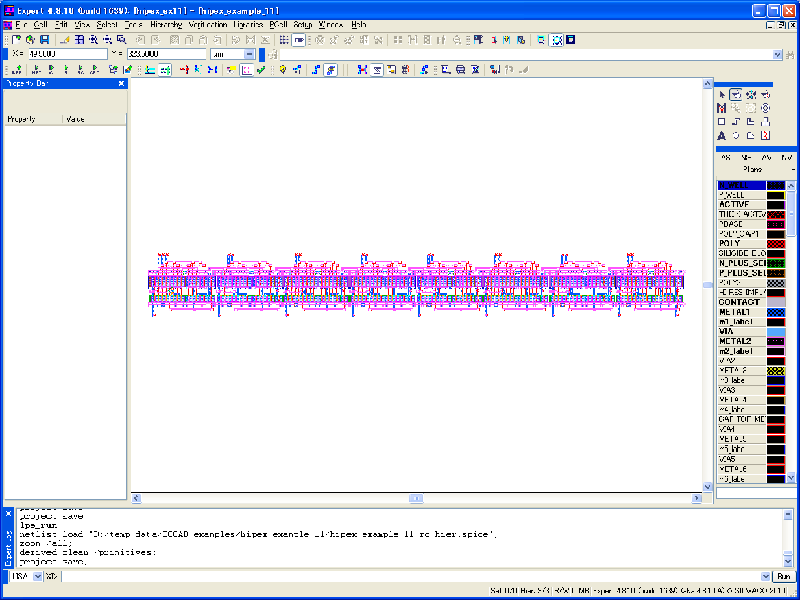

1) Start Expert, and load the project file hipex_ex_11.eld by using File->Open command. And then open the top cell "hipex_example_11" (see figure1 ). Select Verification->Extraction->Setup to open the "Layout Parameter Extraction Setup" dialog. Press Load button, and choose hipex_example_11.lpe file to load required extraction settings.
2) Select Verification->Extraction->Hipex-Net->Run , and then Verification->Extraction->Hipex-RC->Run to get the RC netlist. To show the generated netlist, select Verification->Extraction->Hipex-RC->View SPICE netlist.

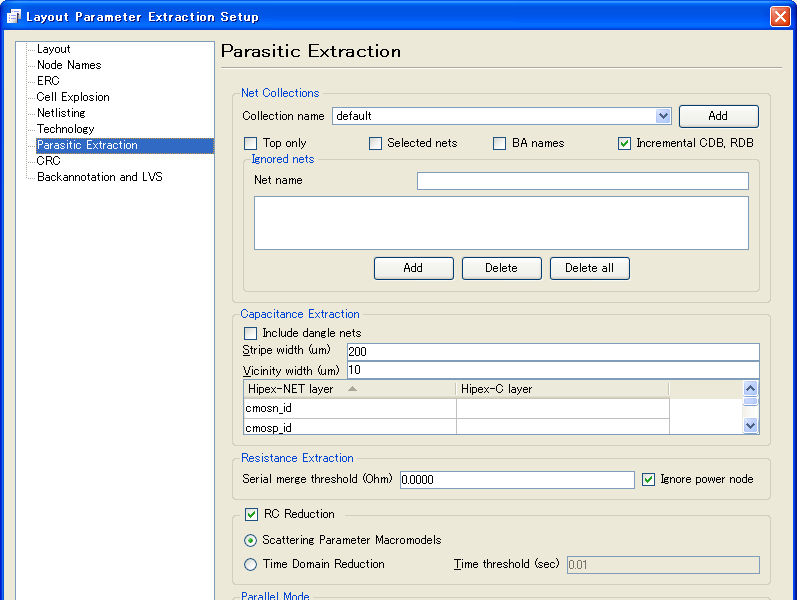

3) Select Verification->Extraction->Setup to open the "Layout Parameter Extraction Setup" dialog (see figure2 ).
4) Turn on the "RC Reduction" checkbox, and make sure the radio button "Scattering Parameter Macromodels" is turned on.
5) Close the dialog, and run Hipex-RC again. The generated netlist contains less parasitic devices than the previous one.
6) Open the "Layout Parameter Extraction Setup" dialog again, and turn on another radio button "Time Domain Reduction". The option "Time threshould" will be set as 0.01.
7) Run Hipex-RC again. The option "Time threshold" affects the processing speed, accuracy of the reduction, and the number of resulted parasitic devices.

Input Files
hipex_ex11_c_cmd.lisa
! ========================================================== !
! Hipex-C parasitic capacitance extraction rules !
! ========================================================== !
hipex set_unit /capacitance "pF" ;
hipex set_unit /length "um" ;
cpx order substrate, poly1, metal6, metal5, metal4, metal3, metal2, metal1;
cpx Lateral metal1
/factor = 0.0358802,7.01689,3.32225
/max_distance = 3
/max_width = 0
/l_threshold = 0
;
cpx Area metal1 metal2
2.65626e-05
;
cpx Fringe metal1 metal2
4.15574e-05,0.320702,0.671211
/max_distance = 3
/max_width = 0
;
cpx Fringe metal2 metal1
2.32849e-05,0.674515,0.0001
/max_distance = 3
/max_width = 0
;
cpx Area metal1 metal3
1.11391e-05
;
cpx Fringe metal1 metal3
3.30439e-05,0.188656,1.04677
/max_distance = 3
/max_width = 0
;
cpx Fringe metal3 metal1
1.39623e-05,0.482325,0.0001
/max_distance = 3
/max_width = 0
;
cpx Area metal1 metal4
7.04721e-06
;
cpx Fringe metal1 metal4
2.91315e-05,0.13222,1.60862
/max_distance = 3
/max_width = 0
;
cpx Fringe metal4 metal1
1.02029e-05,0.457873,0.0442828
/max_distance = 3
/max_width = 0
;
cpx Area metal1 metal5
5.15393e-06
;
cpx Fringe metal1 metal5
2.63965e-05,0.103979,2.04571
/max_distance = 3
/max_width = 0
;
cpx Fringe metal5 metal1
8.08203e-06,0.401369,0.176259
/max_distance = 3
/max_width = 0
;
cpx Area metal1 metal6
4.06251e-06
;
cpx Fringe metal1 metal6
2.55413e-05,0.0918767,1.36021
/max_distance = 3
/max_width = 0
;
cpx Fringe metal6 metal1
6.70174e-06,0.371057,0.269995
/max_distance = 3
/max_width = 0
;
cpx Area metal1 poly1
2.65626e-05
;
cpx Fringe metal1 poly1
4.16003e-05,0.324475,0.66098
/max_distance = 3
/max_width = 0
;
cpx Fringe poly1 metal1
6.20891e-06,1.14039,1.06638
/max_distance = 3
/max_width = 0
;
cpx Area metal1 substrate
2.28684e-05
;
cpx Fringe metal1 substrate
4.00033e-05,0.301935,0.6695
/max_distance = 3
/max_width = 0
;
cpx Lateral metal2
/factor = 2.87372,14.324,4.09817
/max_distance = 3
/max_width = 0
/l_threshold = 0
;
cpx Area metal2 metal3
2.65626e-05
;
cpx Fringe metal2 metal3
4.14748e-05,0.316919,0.680858
/max_distance = 3
/max_width = 0
;
cpx Fringe metal3 metal2
2.88581e-05,0.548685,0.0001
/max_distance = 3
/max_width = 0
;
cpx Area metal2 metal4
1.11391e-05
;
cpx Fringe metal2 metal4
3.2822e-05,0.187093,1.02423
/max_distance = 3
/max_width = 0
;
cpx Fringe metal4 metal2
1.86321e-05,0.39867,0.000655802
/max_distance = 3
/max_width = 0
;
cpx Area metal2 metal5
7.04721e-06
;
cpx Fringe metal2 metal5
2.8634e-05,0.133856,1.47255
/max_distance = 3
/max_width = 0
;
cpx Fringe metal5 metal2
1.41837e-05,0.315184,0.179235
/max_distance = 3
/max_width = 0
;
cpx Area metal2 metal6
5.15393e-06
;
cpx Fringe metal2 metal6
2.73627e-05,0.11064,0.993631
/max_distance = 3
/max_width = 0
;
cpx Fringe metal6 metal2
1.15493e-05,0.27378,0.335871
/max_distance = 3
/max_width = 0
;
cpx Area metal2 poly1
1.11391e-05
;
cpx Fringe metal2 poly1
3.31559e-05,0.19132,1.04343
/max_distance = 3
/max_width = 0
;
cpx Fringe poly1 metal2
3.09488e-06,1.92499,0.0001
/max_distance = 3
/max_width = 0
;
cpx Area metal2 substrate
1.04324e-05
;
cpx Fringe metal2 substrate
3.25999e-05,0.182479,1.11013
/max_distance = 3
/max_width = 0
;
cpx Lateral metal3
/factor = 16.9639,18.1812,4.34947
/max_distance = 3
/max_width = 0
/l_threshold = 0
;
cpx Area metal3 metal4
2.65626e-05
;
cpx Fringe metal3 metal4
4.13121e-05,0.314694,0.672485
/max_distance = 3
/max_width = 0
;
cpx Fringe metal4 metal3
3.18446e-05,0.484687,0.0922895
/max_distance = 3
/max_width = 0
;
cpx Area metal3 metal5
1.11391e-05
;
cpx Fringe metal3 metal5
3.23603e-05,0.189379,0.929541
/max_distance = 3
/max_width = 0
;
cpx Fringe metal5 metal3
2.14639e-05,0.321993,0.17096
/max_distance = 3
/max_width = 0
;
cpx Area metal3 metal6
7.04721e-06
;
cpx Fringe metal3 metal6
3.00478e-05,0.140594,0.630696
/max_distance = 3
/max_width = 0
;
cpx Fringe metal6 metal3
1.67761e-05,0.252539,0.379062
/max_distance = 3
/max_width = 0
;
cpx Area metal3 poly1
7.04721e-06
;
cpx Fringe metal3 poly1
2.93665e-05,0.133438,1.6484
/max_distance = 3
/max_width = 0
;
cpx Fringe poly1 metal3
2.0743e-06,1.87101,0.0001
/max_distance = 3
/max_width = 0
;
cpx Area metal3 substrate
6.7576e-06
;
cpx Fringe metal3 substrate
2.90538e-05,0.129063,1.72374
/max_distance = 3
/max_width = 0
;
cpx Lateral metal4
/factor = 27.9705,19.8358,4.36927
/max_distance = 3
/max_width = 0
/l_threshold = 0
;
cpx Area metal4 metal5
2.65626e-05
;
cpx Fringe metal4 metal5
4.09763e-05,0.318422,0.613318
/max_distance = 3
/max_width = 0
;
cpx Fringe metal5 metal4
3.37177e-05,0.431092,0.212975
/max_distance = 3
/max_width = 0
;
cpx Area metal4 metal6
1.11391e-05
;
cpx Fringe metal4 metal6
3.46533e-05,0.19562,0.29801
/max_distance = 3
/max_width = 0
;
cpx Fringe metal6 metal4
2.33927e-05,0.283069,0.311585
/max_distance = 3
/max_width = 0
;
cpx Area metal4 poly1
5.15393e-06
;
cpx Fringe metal4 poly1
2.68931e-05,0.102796,2.22025
/max_distance = 3
/max_width = 0
;
cpx Fringe poly1 metal4
1.52826e-06,0.31447,4.60139
/max_distance = 3
/max_width = 0
;
cpx Area metal4 substrate
4.9973e-06
;
cpx Fringe metal4 substrate
2.66828e-05,0.100253,2.29093
/max_distance = 3
/max_width = 0
;
cpx Lateral metal5
/factor = 36.0895,20.8244,4.37456
/max_distance = 3
/max_width = 0
/l_threshold = 0
;
cpx Area metal5 metal6
2.65626e-05
;
cpx Fringe metal5 metal6
4.5747e-05,0.323023,0.133653
/max_distance = 3
/max_width = 0
;
cpx Fringe metal6 metal5
3.50076e-05,0.401176,0.29952
/max_distance = 3
/max_width = 0
;
cpx Area metal5 poly1
4.06251e-06
;
cpx Fringe metal5 poly1
2.48633e-05,0.0853638,2.61317
/max_distance = 3
/max_width = 0
;
cpx Fringe poly1 metal5
1.23351e-06,1.70834,0.0001
/max_distance = 3
/max_width = 0
;
cpx Area metal5 substrate
3.96456e-06
;
cpx Fringe metal5 substrate
2.47081e-05,0.0836769,2.67925
/max_distance = 3
/max_width = 0
;
cpx Lateral metal6
/factor = 14.3622,18.3981,4.14307
/max_distance = 3
/max_width = 0
/l_threshold = 0
;
cpx Area metal6 poly1
3.35256e-06
;
cpx Fringe metal6 poly1
2.41867e-05,0.0791816,1.71297
/max_distance = 3
/max_width = 0
;
cpx Fringe poly1 metal6
1e-06,0.0859697,0.983548
/max_distance = 3
/max_width = 0
;
cpx Area metal6 substrate
3.28557e-06
;
cpx Fringe metal6 substrate
2.40558e-05,0.0778986,1.75752
/max_distance = 3
/max_width = 0
;
cpx Lateral poly1
/factor = 1e-06,11.9201,4.11329
/max_distance = 3
/max_width = 0
/l_threshold = 0
;
cpx Area poly1 substrate
0.00345313
;
cpx Fringe poly1 substrate
0.000116307,2.18888,0.176024
/max_distance = 3
/max_width = 0
;
hipex_ex11.dsf
// Layer generation for 'hipex_ex11' project
// Number of derived layers: 39
Select: Layer1=PBASE, Layer2=N_PLUS_SELECT, LayerR=&PNP_PBASE, Relation=overlap, options=(not);
UnderSize: Value=1um, Layer=&PNP_PBASE, LayerR=&A;
Logicform: pnp_id=&A.dif.(ACTIVE);
Contours: Layer=pnp_id, LayerR=pnp_e, options=(holes);
Logicform: pnp_c=PBASE.and.ACTIVE.dif.(pnp_e.or.P_PLUS_SELECT.or.N_PLUS_SELECT);
Logicform: npn_e=PBASE.and.N_PLUS_SELECT.AND.ACTIVE;
LogicForm: npn_b=PBASE.and.ACTIVE.and.P_PLUS_SELECT;
Logicform: gate=POLY.and.ACTIVE;
Logicform: p_sd=(P_PLUS_SELECT.and.ACTIVE.AND.N_WELL).dif.(POLY.or.DEEP_N_WELL.or.RES_ID);
Logicform: n_sd=(N_PLUS_SELECT.and.ACTIVE).dif.(POLY.or.THICK_ACTIVE.or.N_WELL);
Logicform: cmosp_id=gate.and.P_PLUS_SELECT.and.N_WELL;
Logicform: cmosn_id=gate.and.N_PLUS_SELECT.dif.THICK_ACTIVE;
Logicform: hvcmosp_id=gate.and.P_PLUS_SELECT.and.THICK_ACTIVE.dif.P_WELL;
Select: Layer1=ACTIVE, Layer2=hvcmosp_id, Relation=overlap, LayerR=&A;
Logicform: hvpmos_d=&A.dif.(POLY.or.P_WELL.or.N_WELL);
Select: Layer1=ACTIVE, Layer2=hvcmosp_id, Relation=overlap, LayerR=&A;
Logicform: hvpmos_s=&A.dif.(hvcmosp_id.or.N_WELL.or.hvpmos_d);
Logicform: hvcmosn_id=gate.and.N_PLUS_SELECT.and.THICK_ACTIVE;
Select: Layer1=ACTIVE, Layer2=hvcmosn_id, Relation=overlap, LayerR=&A;
Logicform: hvnmos_d=&A.dif.(POLY.or.P_PLUS_SELECT.or.N_WELL);
Select: Layer1=ACTIVE, Layer2=hvcmosn_id, Relation=overlap, LayerR=&A;
Logicform: hvnmos_s=&A.dif.(hvcmosn_id.or.hvnmos_d.or.P_PLUS_SELECT);
Logicform: rpplus_id=N_WELL.and.P_PLUS_SELECT.and.ACTIVE.and.RES_ID;
Logicform: rnpoly_id=N_PLUS_SELECT.and.POLY.and.RES_ID;
Logicform: rpoly_id=(POLY.and.RES_ID).dif.N_PLUS_SELECT;
Logicform: rnwell_id=(N_WELL.and.RES_ID).dif.P_PLUS_SELECT;
LogicForm: &rpplus_pin1=(ACTIVE.and.P_PLUS_SELECT).dif.RES_ID;
Select: Relation=touch, Layer1=&rpplus_pin1, Layer2=rpplus_id, LayerR=rpplus_pin;
Logicform: connect_poly=POLY.dif.RES_ID;
Logicform: connect_nwell=N_WELL.dif.(RES_ID);
Substrate: LayerR=substrate;
Logicform: sub_tie=(ACTIVE.AND.P_PLUS_SELECT).dif.(DEEP_N_WELL.or.N_WELL);
Logicform: well_tie=(ACTIVE.AND.N_PLUS_SELECT.AND.N_WELL).dif.npn_e;
Logicform: &deepnwell_tie1=ACTIVE.AND.N_PLUS_SELECT.AND.DEEP_N_WELL;
Select: Relation=touch, Layer1=&deepnwell_tie1, Layer2=hvpmos_s, LayerR=&temp;
LogicForm: deepnwell_tie=&deepnwell_tie1.dif.&temp;
Logicform: p1p2_id=(POLY2.and.POLY).dif.ACTIVE;
Logicform: poly_con=(POLY.dif.POLY2).and.CONTACT;
Logicform: poly2cap_con=POLY.AND.POLY2.and.CONTACT;
LogicForm: &ind_id1=METAL1.and.INDDMY_ID;
PERIMETER: Layer=&ind_id1, Value=75, Type=GT, LayerR=ind_id;
Corner: Layer=ind_id, Value=0.2, Options=(inside,A90), LayerR=&temp1;
Select: Relation=flush, Layer1=&temp1, Layer2=INDDMY_ID, LayerR=&temp2;
Size: Layer=&temp2, within=ind_id, Options=(cut), step=0.5, Value=10, LayerR=ind_plus;
Select: Relation=cut, Layer1=METAL2, Layer2=ind_id, LayerR=ind_minus;
Corner: Layer=ind_id, Value=0.1, Options=(inside,any), LayerR=NR_counter;
LogicForm: width=METAL1.and.METAL2.and.INDDMY_ID;
LogicForm: &space1=(METAL2.and.INDDMY_ID).dif.METAL1;
PERIMETER: Layer=&space1, LayerR=&space2, Value=79, Type=LT;
SELECT: Relation=touch, layer1=&space2, Layer2=ind_id, LayerR=&space3;
SELECT_edges: Relation=coincide, layer1=&space3, Layer2=ind_id, LayerR=&space4;
SELECT: Relation=touch, layer1=&space3, Layer2=&space4, LayerR=space, options=(2:2);
LogicForm: &space1=(METAL2.and.INDDMY_ID).dif.METAL1;
PERIMETER: Layer=&space1, LayerR=radius, Value=80, Type=GE;
And: layer1=METAL1, layer2=newcell7_boundary, layerR=&tmp1;
Select: Relation=LABEL, Layer1=&tmp1, Layer2=m1_label, LIST=(C),
LayerR=pinC;
And: layer1=METAL1, layer2=newcell7_boundary, layerR=&tmp1;
Select: Relation=LABEL, Layer1=&tmp1, Layer2=m1_label, LIST=(B),
LayerR=pinB;
hipex_ex11_net_cmd.lisa
!--------------------------------------------------------------------
!Net command file
!DESIGN : design
!TECHNO : techno
!USER :
!TIME : Thu May 21 22:07:54 2020
!--------------------------------------------------------------------
! HIPEX to CUP map table
cup layer "poly1" /hipex_layer="connect_poly";
cup layer "metal4" /hipex_layer="METAL4";
cup layer "metal5" /hipex_layer="METAL5";
cup layer "metal6" /hipex_layer="METAL6";
cup layer "metal1" /hipex_layer="METAL1";
cup layer "metal2" /hipex_layer="METAL2";
cup layer "metal3" /hipex_layer="METAL3";
cup layer "substrate" /hipex_layer="substrate";
! GDS LAYER MAP
hipex layer /gds_layer= 0 /gds_type= 0 /geom_layer="connect_nwell";
hipex layer /gds_layer= 1 /gds_type= 0 /geom_layer="connect_poly";
hipex layer /gds_layer= 2 /gds_type= 0 /geom_layer="rpplus_pin";
hipex layer /gds_layer= 3 /gds_type= 0 /geom_layer="rnwell_id";
hipex layer /gds_layer= 4 /gds_type= 0 /geom_layer="rpoly_id";
hipex layer /gds_layer= 5 /gds_type= 0 /geom_layer="rnpoly_id";
hipex layer /gds_layer= 6 /gds_type= 0 /geom_layer="rpplus_id";
hipex layer /gds_layer= 7 /gds_type= 0 /geom_layer="hvnmos_s";
hipex layer /gds_layer= 8 /gds_type= 0 /geom_layer="hvnmos_d";
hipex layer /gds_layer= 9 /gds_type= 0 /geom_layer="hvcmosn_id";
hipex layer /gds_layer= 10 /gds_type= 0 /geom_layer="hvpmos_s";
hipex layer /gds_layer= 11 /gds_type= 0 /geom_layer="hvpmos_d";
hipex layer /gds_layer= 12 /gds_type= 0 /geom_layer="hvcmosp_id";
hipex layer /gds_layer= 13 /gds_type= 0 /geom_layer="cmosn_id";
hipex layer /gds_layer= 14 /gds_type= 0 /geom_layer="cmosp_id";
hipex layer /gds_layer= 15 /gds_type= 0 /geom_layer="n_sd";
hipex layer /gds_layer= 16 /gds_type= 0 /geom_layer="p_sd";
hipex layer /gds_layer= 17 /gds_type= 0 /geom_layer="npn_b";
hipex layer /gds_layer= 18 /gds_type= 0 /geom_layer="npn_e";
hipex layer /gds_layer= 19 /gds_type= 0 /geom_layer="pnp_c";
hipex layer /gds_layer= 20 /gds_type= 0 /geom_layer="pnp_e";
hipex layer /gds_layer= 21 /gds_type= 0 /geom_layer="pnp_id";
hipex layer /gds_layer= 22 /gds_type= 0 /geom_layer="m3_label";
hipex layer /gds_layer= 23 /gds_type= 0 /text_layer="m2_label";
hipex layer /gds_layer= 24 /gds_type= 0 /text_layer="m1_label";
hipex layer /gds_layer= 25 /gds_type= 0 /geom_layer="CONTACT";
hipex layer /gds_layer= 30 /gds_type= 0 /geom_layer="VIA3";
hipex layer /gds_layer= 31 /gds_type= 0 /geom_layer="METAL4";
hipex layer /gds_layer= 32 /gds_type= 0 /geom_layer="VIA4";
hipex layer /gds_layer= 33 /gds_type= 0 /geom_layer="METAL5";
hipex layer /gds_layer= 36 /gds_type= 0 /geom_layer="VIA5";
hipex layer /gds_layer= 37 /gds_type= 0 /geom_layer="METAL6";
hipex layer /gds_layer= 38 /gds_type= 0 /geom_layer="DEEP_N_WELL";
hipex layer /gds_layer= 46 /gds_type= 0 /geom_layer="POLY";
hipex layer /gds_layer= 49 /gds_type= 0 /geom_layer="METAL1";
hipex layer /gds_layer= 50 /gds_type= 0 /geom_layer="VIA";
hipex layer /gds_layer= 51 /gds_type= 0 /geom_layer="METAL2";
hipex layer /gds_layer= 56 /gds_type= 0 /geom_layer="POLY2";
hipex layer /gds_layer= 58 /gds_type= 0 /geom_layer="PBASE";
hipex layer /gds_layer= 61 /gds_type= 0 /geom_layer="VIA2";
hipex layer /gds_layer= 62 /gds_type= 0 /geom_layer="METAL3";
hipex layer /gds_layer= 63 /gds_type= 0 /geom_layer="substrate";
hipex layer /gds_layer= 64 /gds_type= 0 /geom_layer="sub_tie";
hipex layer /gds_layer= 65 /gds_type= 0 /geom_layer="well_tie";
hipex layer /gds_layer= 66 /gds_type= 0 /geom_layer="deepnwell_tie";
hipex layer /gds_layer= 67 /gds_type= 0 /geom_layer="p1p2_id";
hipex layer /gds_layer= 68 /gds_type= 0 /geom_layer="poly_con";
hipex layer /gds_layer= 69 /gds_type= 0 /geom_layer="poly2cap_con";
hipex layer /gds_layer= 70 /gds_type= 0 /geom_layer="ind_plus";
hipex layer /gds_layer= 71 /gds_type= 0 /geom_layer="ind_minus";
hipex layer /gds_layer= 72 /gds_type= 0 /geom_layer="HPX$npn_e";
! TEXT TYPES
! PORT LAYERS
hipex port_layer "m1_label";
hipex port_layer "m2_label";
! SOFT LAYERS
! MISC (optional) statementsS
! CONNECTIVITY
hipex connect "DEEP_N_WELL" "deepnwell_tie";
hipex connect "METAL1" "POLY2" /contact="poly2cap_con";
hipex connect "METAL1" "METAL2" /contact="VIA";
hipex connect "METAL1" "pnp_e" /contact="CONTACT";
hipex connect "METAL1" "pnp_c" /contact="CONTACT";
hipex connect "METAL1" "npn_e" /contact="CONTACT";
hipex connect "METAL1" "npn_b" /contact="CONTACT";
hipex connect "METAL1" "p_sd" /contact="CONTACT";
hipex connect "METAL1" "n_sd" /contact="CONTACT";
hipex connect "METAL1" "hvpmos_d" /contact="CONTACT";
hipex connect "METAL1" "hvpmos_s" /contact="CONTACT";
hipex connect "METAL1" "hvnmos_d" /contact="CONTACT";
hipex connect "METAL1" "hvnmos_s" /contact="CONTACT";
hipex connect "METAL1" "rpplus_pin" /contact="CONTACT";
hipex connect "METAL1" "connect_poly" /contact="poly_con";
hipex connect "METAL1" "sub_tie" /contact="CONTACT";
hipex connect "METAL1" "well_tie" /contact="CONTACT";
hipex connect "METAL1" "ind_plus";
hipex attach "m1_label" "METAL1";
hipex connect "METAL2" "METAL3" /contact="VIA2";
hipex attach "m2_label" "METAL2";
hipex connect "METAL3" "METAL4" /contact="VIA3";
hipex connect "METAL4" "METAL5" /contact="VIA4";
hipex connect "METAL5" "METAL6" /contact="VIA5";
hipex connect "PBASE" "npn_b";
hipex connect "connect_nwell" "well_tie";
hipex connect "connect_poly" "POLY";
hipex connect "deepnwell_tie" "METAL1" /contact="CONTACT";
hipex connect "substrate" "sub_tie";
! DEVICES TEXTS
! DEVICE DEFINITIONS
hipex define_device PMOS "cmosp_id" /drain="p_sd" /gate="connect_poly" /source="p_sd" /subs="connect_nwell" /model_name="CMOSP";
hipex define_device NMOS "cmosn_id" /drain="n_sd" /gate="connect_poly" /source="n_sd" /subs="substrate" /model_name="CMOSN";
hipex define_device C "p1p2_id" /pin1="POLY2" /pin2="connect_poly" /area_cap=0.0075 /perim_cap=0.00625 /model_name="P1P2";
hipex define_device PMOS "hvcmosp_id" /drain="hvpmos_d" /gate="connect_poly" /source="hvpmos_s" /subs="DEEP_N_WELL" /model_name="HVCMOSP";
hipex define_device NMOS "hvcmosn_id" /drain="hvnmos_d" /gate="connect_poly" /source="hvnmos_s" /subs="substrate" /model_name="HVCMOSN";
hipex define_device NPN "HPX$npn_e" /collector="connect_nwell" /base="PBASE" /emitter="npn_e" /subs="substrate" /area_unit=36 /model_name="NPN";
hipex define_device PNP "pnp_id" /collector="pnp_c" /base="connect_nwell" /emitter="pnp_e" /model_name="PNP";
hipex define_device R "rnwell_id" /pin1="well_tie" /pin2="well_tie" /subs="substrate" /cont_res=0 /delta_l=0.4 /delta_w=-0.02 /head_res=0 /sheet_res=10000 /model_name="RNWELL";
hipex define_device R "rpplus_id" /pin1="rpplus_pin" /pin2="rpplus_pin" /subs="connect_nwell" /cont_res=0 /delta_l=0.5 /delta_w=-0.05 /head_res=0 /sheet_res=200 /model_name="RPPLUS";
hipex define_device R "rnpoly_id" /pin1="connect_poly" /pin2="connect_poly" /cont_res=0 /delta_l=0.4 /delta_w=0.02 /head_res=0 /sheet_res=50 /model_name="RNPOLY";
hipex define_device R "rpoly_id" /pin1="connect_poly" /pin2="connect_poly" /cont_res=0 /delta_l=0.4 /delta_w=0.02 /head_res=0 /sheet_res=50 /model_name="RPOLY";
! GEOMETRICAL OPERATIONS
hipex copy "npn_e" "HPX$npn_e";
! SOFT/WELL CHECKS
! MASKED DIELECTRIC LAYERS
hipex_ex11_opt.lisa
!--------------------------------------------------------------------
!Run file
!DESIGN : design
!TECHNO : techno
!USER :
!TIME : Thu May 21 22:15:37 2020
!--------------------------------------------------------------------
TOP_CELL = "hipex_example_11";
HIPEX_DB_DIRECTORY = "database";
!--------------------------------------------------------------------
!Extraction: LISA template command file
!--------------------------------------------------------------------
!--------------------------------------------------------------------
!Layout parameters
!--------------------------------------------------------------------
HIPEX_LAYOUT_FORMAT = "GDS";
HIPEX_LAYOUT_FILE = "hipex_example_11$HPX.gds";
HIPEX_OVERLAP_INSTANCE_CHECK = "NO";
HIPEX_SUPPRESS_NOTEMPTY = "YES";
HIPEX_NON45_FLAG = "NO";
!--------------------------------------------------------------------
!Connectivity parameters
!--------------------------------------------------------------------
HIPEX_TERNARY_CONNECT_THROUGH_TOUCH = "NO";
!--------------------------------------------------------------------
!Output parameters
!--------------------------------------------------------------------
HIPEX_COMMENT_MODEL = "NO";
HIPEX_COMMENT_TOP_SUBCKT = "NO";
HIPEX_HIER_SPICE_WL_NAME = "/home/alexa/2020_06/11/hipex_example_11_hier.spice";
HIPEX_MOSFET_LW_ONLY = "NO";
HIPEX_MOSFET_EXCLUDE_W_SD = "NO";
HIPEX_OUTPUT_SPICE_ATTRIBUTES = "YES";
HIPEX_CAP_OUTPUT_LW = "NO";
HIPEX_RES_OUTPUT_LW = "YES";
HIPEX_CAP_OUTPUT_AREA_PERIMETER = "YES";
HIPEX_OUTPUT_SPICE_FORMAT = "HSPICE";
HIPEX_PININFO = "NO";
HIPEX_PRINT_MESSAGES = "NO";
NETLIST_OUTPUT_PM = "NO";
NETLIST_DISTRIBUTION_MODE = "ACCURATE";
NETLIST_LINE_LENGTH = 80;
NETLIST_EXCLUDE_LIBRARY_PREFIX = "NO";
NETLIST_GLOBALS_IN_SUBCKT_PINS = "YES";
NETLIST_TEXTED_PINS = "YES";
NETLIST_LIBRARIES = {"simucad_demo_pcells"};
!--------------------------------------------------------------------
!ERC parameters
!--------------------------------------------------------------------
HIPEX_DANGLE_FLAG = "YES";
HIPEX_CAP_MESSAGE = "YES";
HIPEX_DIODE_MESSAGE = "NO";
HIPEX_RENAME_OPENS = "YES";
HIPEX_MULTILABEL_NAME = "";
HIPEX_SOFTCHECK_WARNINGS_AS_ERRORS = "NO";
!--------------------------------------------------------------------
!Node Name parameters
!--------------------------------------------------------------------
HIPEX_HIERARCHY_SEPARATOR = "/";
HIPEX_NODE_NAME_SEPARATOR = "_";
HIPEX_DEFAULT_INSTANCE_PREFIX = "I";
HIPEX_DEFAULT_NODE_PREFIX = "#";
HIPEX_DELETE_BAD_CHAR = "NO";
HIPEX_XY_LOCATION = "NO";
HIPEX_CASE_SENSITIVE_NET_NAMES = "YES";
HIPEX_AUTOGENERATE_LOCAL = "YES";
POWER_NODE = {"VDD"};
GROUND_NODE = {"GND"};
GLOBAL_TEXT_LIST = {"GND", "VDD"};
HIPEX_PIN_DELIMITER = ":";
!--------------------------------------------------------------------
!Explosion parameters
!--------------------------------------------------------------------
HIPEX_WIRING_EXPLODE = "NO";
HIPEX_KEEP_FLATTEN_CELLS = "YES";
HIPEX_TEXT_TOP = "NO";
HIPEX_AUTO_EXPLODE = "NO";
HIPEX SET_CELL_OPTIONS {"m1m2via_20000_20000_1_1_50000_50000_4"} /EXPLODE;
HIPEX SET_CELL_OPTIONS {"FULL_ADDER_AOI_comp4"} /EXPLODE;
HIPEX SET_CELL_OPTIONS {"hipex_example_11"} /EXPLODE;
!--------------------------------------------------------------------
!Pins parameters
!--------------------------------------------------------------------
HIPEX_IGNORE_DANGLE_PINS = "YES";
!--------------------------------------------------------------------
!Virtual Nets parameters
!--------------------------------------------------------------------
HIPEX_CHANGE_VIRTUAL_NETS = "SUFFIX";
HIPEX_VIRTUAL_NET_SYMBOLS = ":";
HIPEX_TOP_VIRTUAL_CONNECT_ONLY = "YES";
!--------------------------------------------------------------------
!BackAnnotate parameters
!--------------------------------------------------------------------
HIPEX_BACKANNOTATE = "NO";
!--------------------------------------------------------------------
!Capacitance Extraction parameters
!--------------------------------------------------------------------
CPX_COUPLED_THRESHOLD = 0.0;
CPX_EXTRACT_DANGLES = "NO";
CPX_OUTPUT_DUMMY_CAPA = "NO";
CPX_FIELD_SOLVER = "NO";
!--------------------------------------------------------------------
!Field Solver C-extraction (Stellar) parameters
!--------------------------------------------------------------------
CPX_STEP_X = 0.5;
CPX_STEP_Y = 0.5;
CPX_STEP_Z = 0.5;
CPX_PRECISION = 0.01;
CPX_MAX_ITER = 100;
CPX_DECOMPOSITION = "YES";
CPX_DEC_STEP = "NO";
CPX_DEC_VALUE = -1.0;
CPX_BOX = "NO";
CPX_BOX_VALUES_XMIN = 0.0;
CPX_BOX_VALUES_XMAX = 0.0;
CPX_BOX_VALUES_YMIN = 0.0;
CPX_BOX_VALUES_YMAX = 0.0;
CPX_FILTER = "NO";
CPX_CAPA_MIN = 1e-20;
CPX_RENEW = "NO";
CPX_SAVE_FILE = "/home/alexa/2020_06/11/RenewSavedFile.sav";
CPX_THREED_GENERATION = "NO";
CPX_THREED_FILENAME = "/home/alexa/2020_06/11/3DStructureFile.str";
!--------------------------------------------------------------------
!Field Solver C-extraction (Clever) parameters
!--------------------------------------------------------------------
!--------------------------------------------------------------------
!Resistance Extraction parameters
!--------------------------------------------------------------------
RPX_SERIAL_MERGE_THRESHOLD = 0.0;
RPX_OUTPUT_XY = "NO";
RPX_OUTPUT_LAYER_NAMES = "NO";
RPX_SKIP_POWER = "YES";
RPX_USE_TEXTS_AS_SUBNODES = "NO";
RPX_USE_FIELD_SOLVER = "NO";
!--------------------------------------------------------------------
!Netlist RC Reduction parameters
!--------------------------------------------------------------------
NETLIST_CRC = "SPM";
!--------------------------------------------------------------------
!Coefficient Units parameters
!--------------------------------------------------------------------
HIPEX SET_UNIT /CAPACITANCE "pF";
HIPEX SET_UNIT /RESISTANCE "Ohm";
HIPEX SET_UNIT /LENGTH "um";
hipex_ex11_r_cmd.lisa
! ========================================================== !
! Hipex-R parasitic resistance extraction rules !
! ========================================================== !
hipex set_unit /resistance "Ohm" ;
hipex set_unit /length "um" ;
rpx define_parasitic Contact
/layer = CONTACT
/top = METAL1
/bottom = pnp_c
/pres_area_resistivity_value = 1.0
;
rpx define_parasitic Contact
/layer = CONTACT
/top = METAL1
/bottom = pnp_e
/pres_area_resistivity_value = 1.0
;
rpx define_parasitic Wire
/layer = METAL1
/max_length = 20.0
/contact_cluster = 2.0
/pres_sheet_resistivity_value = 0.05
;
rpx define_parasitic Wire
/layer = METAL2
/max_length = 20.0
/contact_cluster = 2.0
/pres_sheet_resistivity_value = 0.05
;
rpx define_parasitic Contact
/layer = VIA3
/top = METAL1
/bottom = pnp_c
/pres_area_resistivity_value = 1.0
;
rpx define_parasitic Contact
/layer = VIA3
/top = METAL1
/bottom = pnp_e
/pres_area_resistivity_value = 1.0
;
rpx define_parasitic Wire
/layer = connect_poly
/max_length = 20.0
/contact_cluster = 2.0
/pres_sheet_resistivity_value = 40.0
;
rpx define_parasitic Contact
/layer = pinA
/top = METAL1
/bottom = POLY2
/pres_area_resistivity_value = 1.0
;
rpx define_parasitic Contact
/layer = poly2cap_con
/top = METAL1
/bottom = POLY2
/pres_area_resistivity_value = 1.0
;
run_net.lisa
INCLUDE ("hipex_ex11_opt.lisa");
INCLUDE ("hipex_ex11_net_cmd.lisa");
HIPEX_SUMMARY_PATH = "/home/alexa/2020_06/11";
HIPEX_NET_MAIN();
run_rc.lisa
INCLUDE ("hipex_ex11_opt.lisa");
INCLUDE ("hipex_ex11_net_cmd.lisa");
INCLUDE ("hipex_ex11_r_cmd.lisa");
INCLUDE ("hipex_ex11_c_cmd.lisa");
HDB READ;
print("Writing Stripe Database ...");
HDB WRITE_STRIPES /FULL "default" 200 10;
print("Stripes OK.");
HIPEX_SUMMARY_PATH = "/home/alexa/2020_06/11";
print("Parasitic capacitance extraction...");
CPX MAIN "default" /rewrite;
print("Parasitic resistance extraction...");
RPX MAIN "default" /rewrite;
netlist spice/hier/rcc "/home/alexa/2020_06/11/hipex_example_11_rc_hier.spice";
netlist parasitic/dspf/cc /file_path="/home/alexa/2020_06/11/SPF";
IND.lisa
!DEVICE IND metal1(PLUS) metal1(MINUS) !! PROPERTY W,S,NR,RAD define procedure IND do begin TURNS = 0.0; RADIUS = 0.0; WIDTH = 0.0; SPACE = 0.0; NW=0; display("IND"); !!!!!!Number of Rings TURNS = (((device_count("NR_counter")-8)*0.25)/4)+0.25; display(TURNS); !!!!!!Width of each turn NW=ceil(TURNS-0.25); WIDTH = (device_perimeter(REL_NONE, "width", ""))/((1+NW)*4); display(WIDTH); !!!!!!Space between turns SPACE = ((device_perimeter(REL_NONE, "space", ""))/((NW-1)*2))-WIDTH; display(SPACE); !!!!!!!Inner radius of Inductor RADIUS = (device_perimeter(REL_NONE, "radius", ""))/4; display(RADIUS); ! Transfer of calculated parameters to c-code device_set_property("TURNS", TURNS); device_set_property("RADIUS", RADIUS); device_set_property("WIDTH", WIDTH); device_set_property("SPACE", SPACE); display("End IND"); end;
