002_antenna_check : Check Antenna Characteristics for Nodes
Minimum Required Version
: Expert 4.14.0.R, Guardian 4.14.0.R
This example shows usage of the antenna check.
To check the antenna characteristics for nodes, Guardian DRC provides the following two commands in addition to the connectivity statements.
- Get_Node_Params: This operation is used to extract geometric parameters from the input layer for each electrical node, and generate the result file specified by the output layer parameter. It is to be used as the File input parameter for the Check_Node_Params statement.
- Check_Node_Params: The operation checks geometric parameters extracted by the Get_Node_Params statement on each electrical node present in the input parameter files.
This example can check the ratio between the area of the interconnect layer "FPOLY" and the area of the gate layer "GATE" larger than 100 using the following descriptions:
// Get Area information of GATE Get_Node_Params: Options = (Area), Layer = GATE_STM, LayerR = GATE_TRAITS; // Get Area information of FPOLY Get_Node_Params: Options = (Area), Layer = FPOLY, LayerR = FPOLY_TRAITS; // Check (Area of FPOLY) / (Area of GATE) > 100 Check_Node_Params: Formula = (sum.FPOLY_TRAITS.Area / sum.GATE_TRAITS.Area), Limits >100, Layer = POLY, LayerR = BAD_POLY; LogR = antenna_check_LogR.ant, LogA = antenna_check_LogA.ant;
Please refer to antenna_check.dsf for details.
To run the example it needs:
1) Start Guardian DRC or Expert
2) Load
"antenna_check.eld"
and open the "antenna_check" cell
(
File->Open
).
See
3) Load the
"antenna_check.dsf"
script from the Script panel
(Verification->DRC->DRC Script Panel).
4) Run DRC
(DRC->Run).

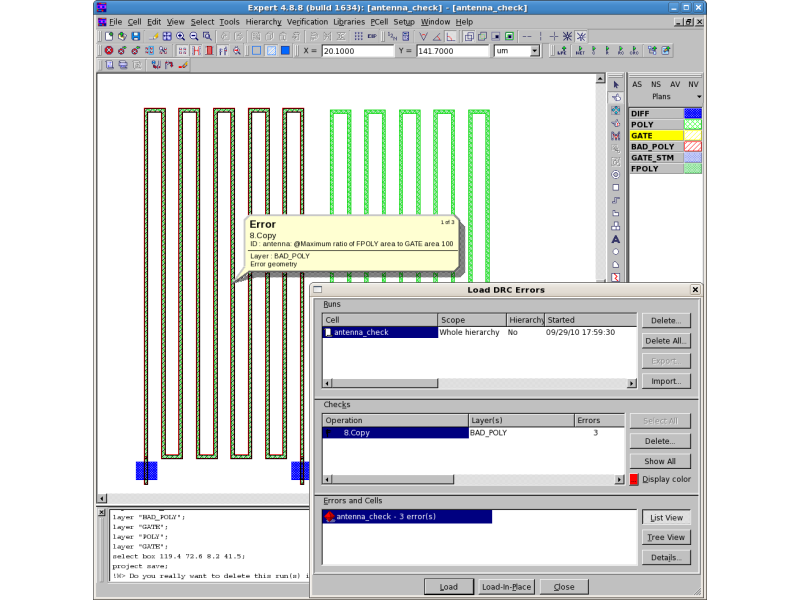

5) View DRC errors
(select DRC->Errors->Load Errors and click "Load" in the Load DRC Errors dialog).
See

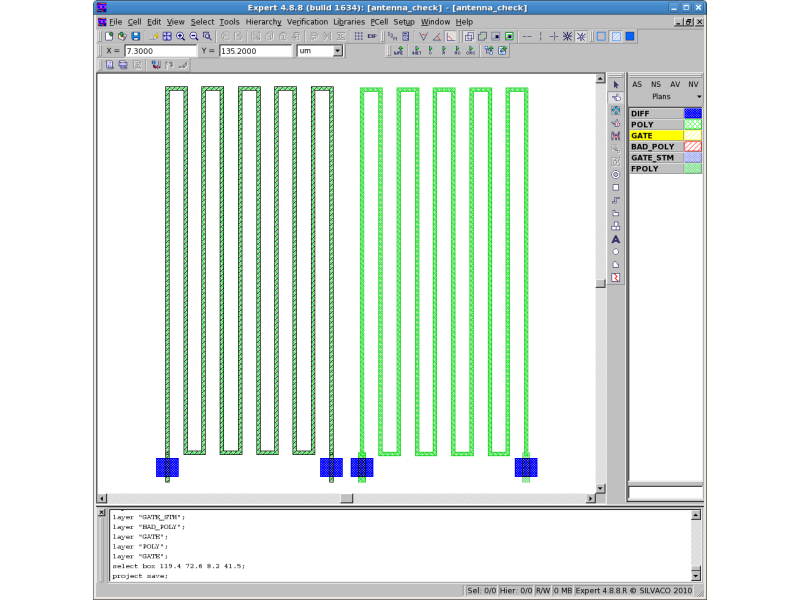

As a result, a layer -BAD_POLY- will be created with a geometry, which violates antenna checks in only the left side of the layout, because "FPOLY" on the right side of the layout is connected with the "GATE" layers whose area is two times larger than the left side one. antenna_check_LogR.ant is the output geometry log file. antenna_check_LogA.ant is the antenna violation log file.
To learn more about Guardian DRC commands and their syntax, see the Guardian DRC user manual "guardian_users1.pdf" located in lib/expert/4.14.0.R/docs/ in your installation area.
antenna_check.dsf
Update_layout: Node_Attr_Name=DcrNode, Antenna_Attr_Name=DrcAntenna; Connect: Layers=(POLY); ////////////////////////////// // Example: Antenna Rules // ////////////////////////////// // Get GATE layer And: Layer1=POLY, Layer2=DIFF, LayerR=GATE; // Select GATE region Select: Relation = STAMP, Options = (Touch-), Layer1 = GATE, Layer2 = POLY, LayerR = GATE_STM; // Get interconnect Poly Dif: Layer1 = POLY, Layer2 = GATE, LayerR = FPOLY; // For Antenna Check // Get Area information of GATE Get_Node_Params: Options = (Area), Layer = GATE_STM, LayerR = GATE_TRAITS; // Get Area information of FPOLY Get_Node_Params: Options = (Area), Layer = FPOLY, LayerR = FPOLY_TRAITS; // Check (Area of FPOLY) / (Area of GATE) > 100 Check_Node_Params: Formula = (sum.FPOLY_TRAITS.Area / sum.GATE_TRAITS.AreA), Limits > 100, Layer = POLY, LayerR = BAD_POLY, LogR = antenna_check_LogR.ant, LogA = antenna_check_LogA.ant; Copy: Layer = BAD_POLY, ID = "antenna: @Maximum ratio of FPOLY area to GATE area 100";
antenna_check_LogA.ant
command #7: Check_Node_Params Formula: sum.FPOLY_TRAITS.Area/sum.GATE_TRAITS.AreA Script Unit = 1um VIOLATIONS: Node Number Formula Value 1 : 105.1
antenna_check_LogR.ant
command #7: Check_Node_Params Formula: sum.FPOLY_TRAITS.Area/sum.GATE_TRAITS.AreA DB Unit = 0.0001um Script Unit = 1um VIOLATIONS: Lower Left Vertex Antenna Value (accumulated) X= 95,000 Y= 295,000 : 105.1 X= 545,000 Y= 220,000 : 105.1 X= 95,000 Y= 220,000 : 105.1
