004_ripple_carry_counter : Ripple Carry Counter Schematic Simulation
Minimum Required Versions: Gateway 2.12.10.R, SILOS 4.10.90.R

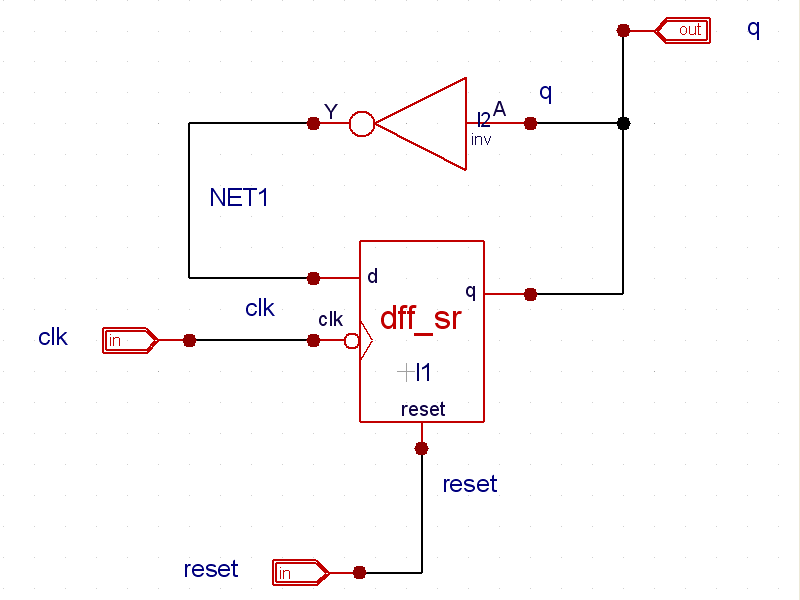

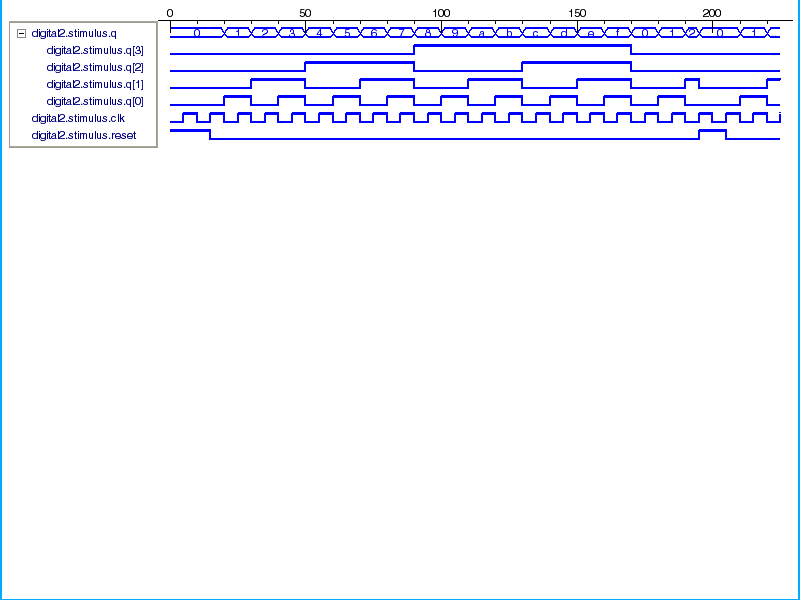

Example 4 is a four bit ripple carry counter schematic. The top level of the design ( top_level.png ) is made from negative edge-triggered T flip flops. Descending one level down, the schematic ( tff.png ) is built with inverters and negative edge-triggered DFFs. The inverter and DFF cells both use attached file module definitions. The module definition for the DFF with synchronous reset is shown in dff_sr.v. The stimulus module, or test bench, is shown in the ripple_carry_counter.ctrv file ( ripple_carry_counter.ctrv). In this file, the top level design is instantiated and the output is monitored. Finally, the output waveforms are shown for the simulation ( waveforms.png ).
dff_sr.v
//module dff_sr with synchronous reset module dff_sr(q, d, clk, reset); output q; input d, clk, reset; reg q; always @(posedge reset or negedge clk) if (reset) q= 1'b0; else q=d; endmodule
ripple_carry_counter.ctrv
module stimulus;
reg clk;
reg reset;
wire[3:0] q;
// instantiate design block
ripple_carry_counter r1(.q(q), .clk(clk), .reset(reset));
//control the clk signal that drives the design block.. cycle time=10
initial
clk = 1'b0; //set the clk to 0
always
#5 clk = ~clk; // toggle clk every 5 time units
//control the reset signal that drives the design block
initial
begin
reset = 1'b1;
#15 reset = 1'b0;
#180 reset = 1'b1;
#10 reset = 1'b0;
#20 $finish; // end the simualtion
end
// monitor the outputs
initial
$monitor($time, " output q = %d", q);
endmodule
