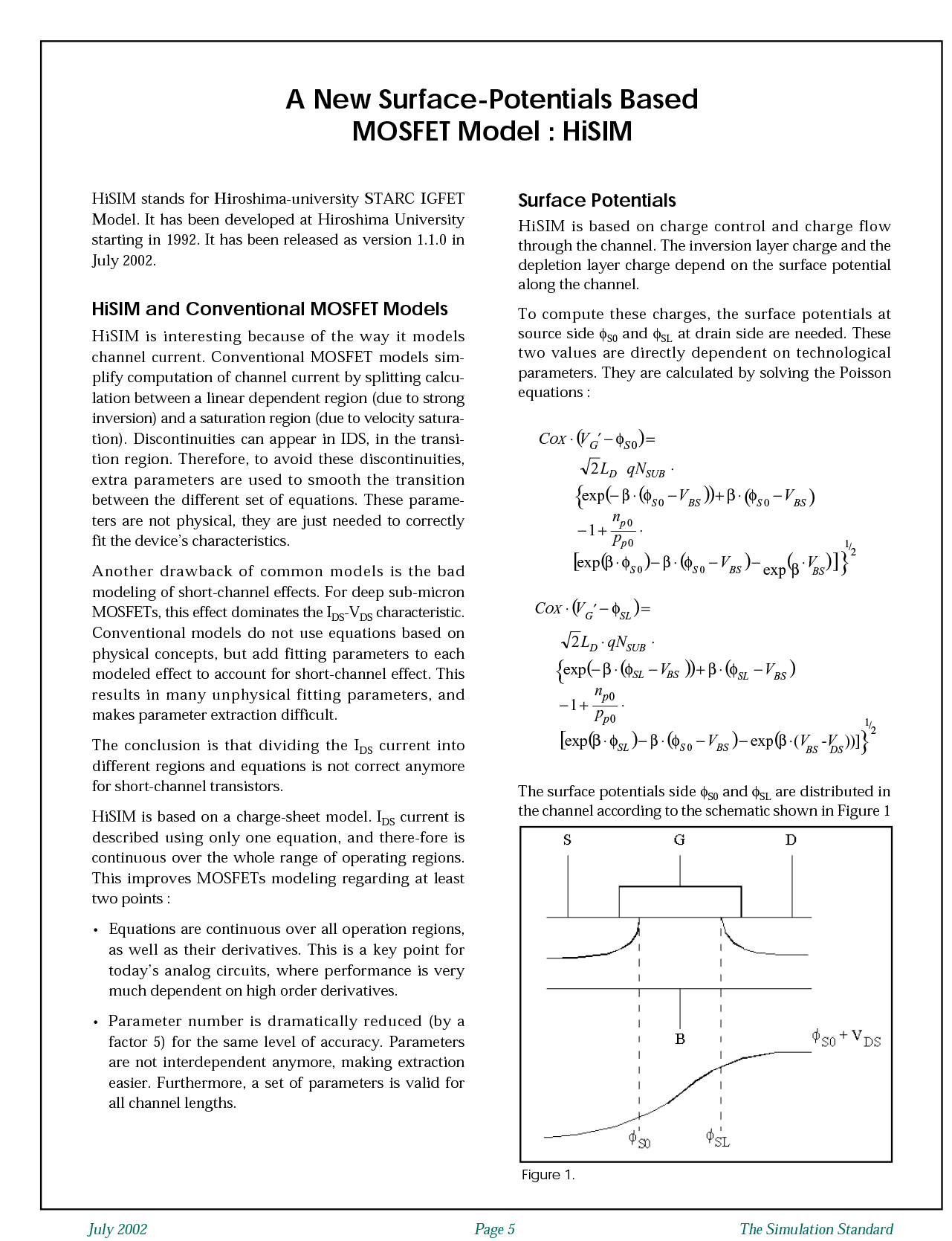

A New Surface-Potentials Based MOSFET Model: HiSIM

Introduction

HiSIM is based on a charge-sheet model. IDS current is described using only one equation, and there-fore is continuous over the whole range of operating regions. This improves MOSFETs modeling regarding at least two points. Equations are continuous over all operation regions, as well as their derivatives. This is a key point for today’s analog circuits, where performance is very much dependent on high order derivatives. Parameter number is dramatically reduced (by a factor 5) for the same level of accuracy. Parameters are not interdependent anymore, making extraction easier. Furthermore, a set of parameters is valid for all channel lengths.
